Audio Format Audio Source Analog Input Digital Inputs EDID
None Muted Yes Yes No CEA
Analog 5‑Pole Captive Yes Yes No CEA
LPCM-2Ch Embedded Digital No Yes LPCM‑2Ch CEA
Multi-Ch Embedded Digital No Yes Multi‑Ch CEA
LPCM-2Ch Auto Embedded Digital
(when present), else
5‑Pole Captive
No Yes LPCM‑2Ch CEA
Multi-Ch Auto Embedded Digital
(when present), else
5‑Pole Captive
No Yes Multi‑Ch CEA
NOTE: If one of the custom EDID slots is in use, the audio format setting will have no
effect on the emulated EDID table.
It is important that care should be taken when assigning custom EDID files, as the
user can potentially assign an analog (VGA) EDID to a digital (HDMI) input, or vice versa. If
an EDID file listing support for the incorrect video format has been assigned, the attached
source may not output any video, or unexpected behavior may result.

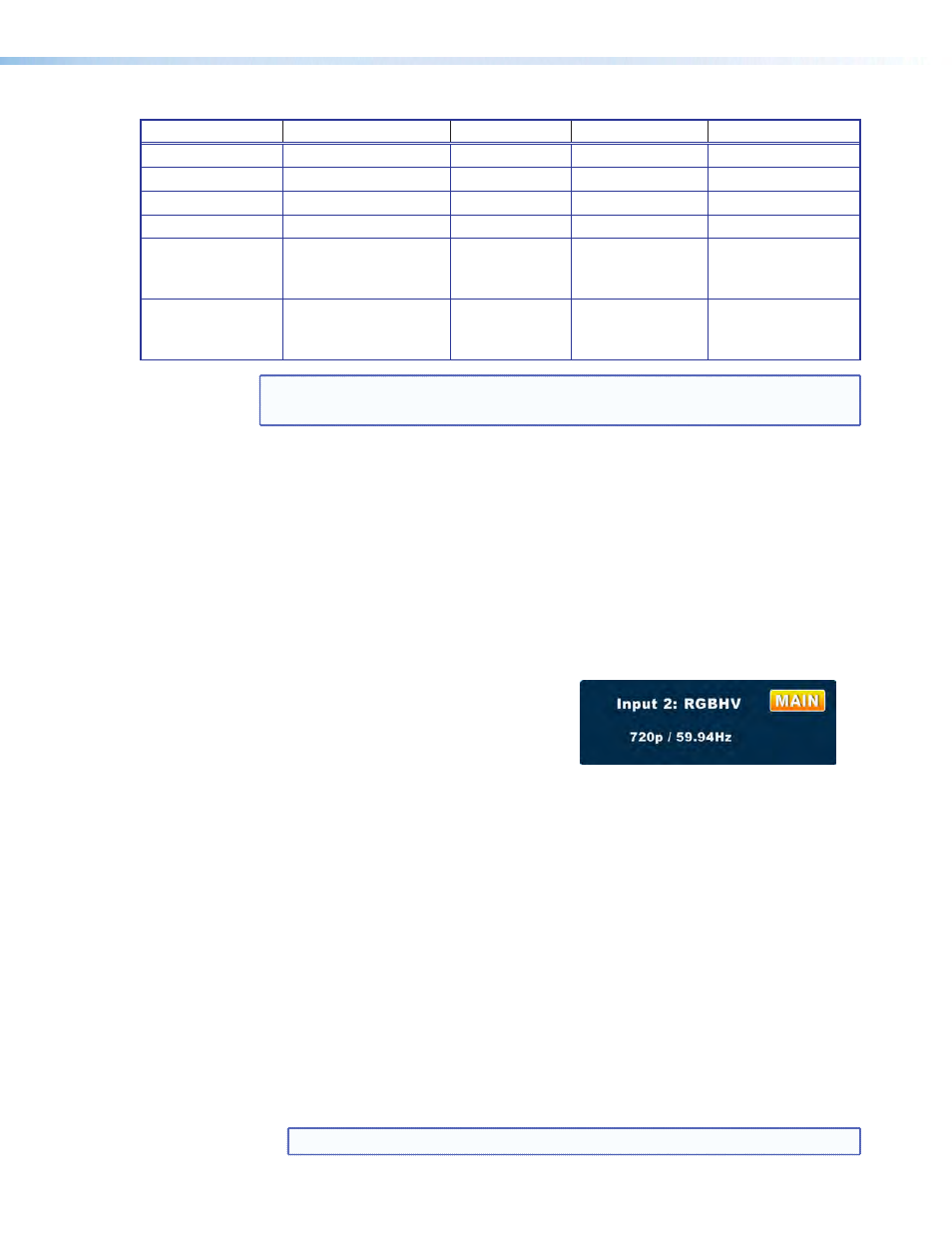

The OSD Bug
When switching between inputs, the DVS 605 will display a small OSD “bug” in the upper
left corner. This bug contains information regarding the detected input rate and format,
the HDCP status of the selected input, and an indication of Main vs. PIP inputs. The OSD
bug can be disabled by setting the OSD duration to 0.0 seconds via the front panel, the
internal web pages, or by SIS commands.
The items displayed are:
•
Main vs. PIP
•
Detected input rate
•
HDCP Lock
Hardwired IR Port
The DVS 605 includes a hardwired IR input, to be used with a hardwired IR output from
an Extron MLC, IPL, or similar controller. This port allows for simple, unidirectional control
of the DVS 605 from a host controller that has no available RS‑232 ports, but does have
available hardwired IR outputs.
Using the DVS 605 IR driver, available from the Extron website, basic controls include:
•
Input Switching
• Auto‑Image, Auto‑Image + Fill, Auto‑Image + Follow
•
Audio Mute, Video Mute, A/V Mute
•
Volume
•
PIP On/Off, PIP Swap
• User Presets Recall 1, 2, and 3 (for the selected input)
•
PIP Preset Recall 1 – 6 (with or without input)
•
Show Informational On Screen Display (OSD)
NOTE: There is no available IR remote for the DVS 605.
DVS 605 • Operation 32
