4.3 Electrical diagrams
4.3.1 Wiring code
• The power circuits are not shown in the wiring diagrams
for clarity. The control circuit is presented as a typical
circuit diagram and is a combination of numbered basic
diagrams for closing, tripping and indicators.
• The number of the complete diagram can be derived by
using the key numbers of the basic plan.
• WARNING: Non-standard circuits may be issued for
special orders. Such circuits do not comply with the
diagrams in this instruction. In such a case an appendix is
delivered with the breaker.

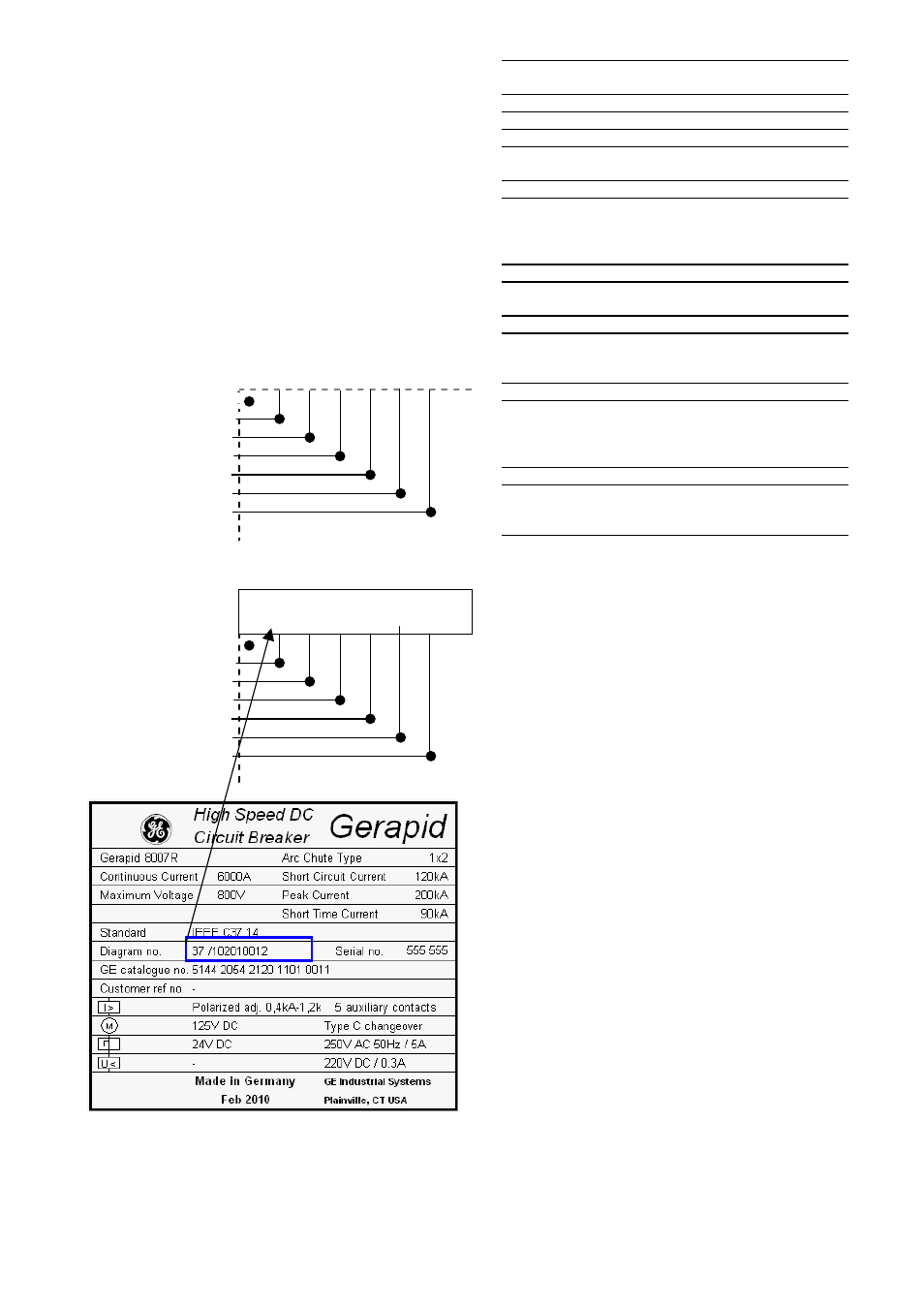

Coding positions:
Key position:
1 / 2 3 4 5 6 7
Breaker type
Aux. voltage supply
ED impulse release
Closing drive
Aux. tripping device
Indicators
Aux. switches
EXAMPLE:
Key number:
37 / 1 0 20 10 01 2
Gerapid rectifier type
With voltage converter
Without ED and NEKO
With closing drive
With shunt trip
With POCT indicator
With 5 aux. switches
Fig. 16 Example code shown on the nameplate.
Key
position
Key
number
Designation
Type
1 36 Gerapid
Auxiliary voltage
2 1 Voltage
converter
2 DC 24 V external supply
Tripping coil
3
0 Without ed impulse coil
1 With ed impulse coil
2 With ed impulse coil and
NEKO control unit
Drive
4
20 Solenoid drive with
SU control unit
Tripping device
5 00 Without
trip unit
10 With shunt trip
20 With zero voltage release
Indication device
6 00 Without
indicators
01 POCT trip target
02 Arc chute indicator
03 POCT + arc chute indicator
Auxiliary contacts
7
1 3 auxiliary contacts
2 5 auxiliary contacts
3 10 auxiliary contacts
Indication of components
Q1 Closing drive coil
Q2, Q3 Impulse ED coil
S1 Push button „CLOSE“
S2 Push button „OPEN“ by means of ST or UVR
S3 Impulse coil firing signal
SU control PCB:
K1 Closing relay
K2 Internal closing stop relay 1)
K3 Solid state relay
Shunt trip, zero voltage release PCB:
K1 Internal closing stop relay 1)
K2 Tripping relay
HS11 Shunt trip self cut-off auxiliary contact
ED-tripping device with internal NEKO PCB:
K1 Voltage monitoring relay
K2 Internal closing stop relay 1)
1) These relays are part of internal closing stop circuit.
It is a 24 V DC closed circuit, through all PCBs in the box,
except SEL. Serial connection of all relays is realized
through connections ( :5/:6) in each PCB. This circuit
provides priority of a tripping signal over a closing signal.
Additionally it prevents from closing if the internal supply
24 V DC lost at UVR PCB or NEKO PCB.
