6 LCD SCREEN
METERING
ALARMS
PARAMETERS
+
-
ENTER
ISM_CP LCD_01

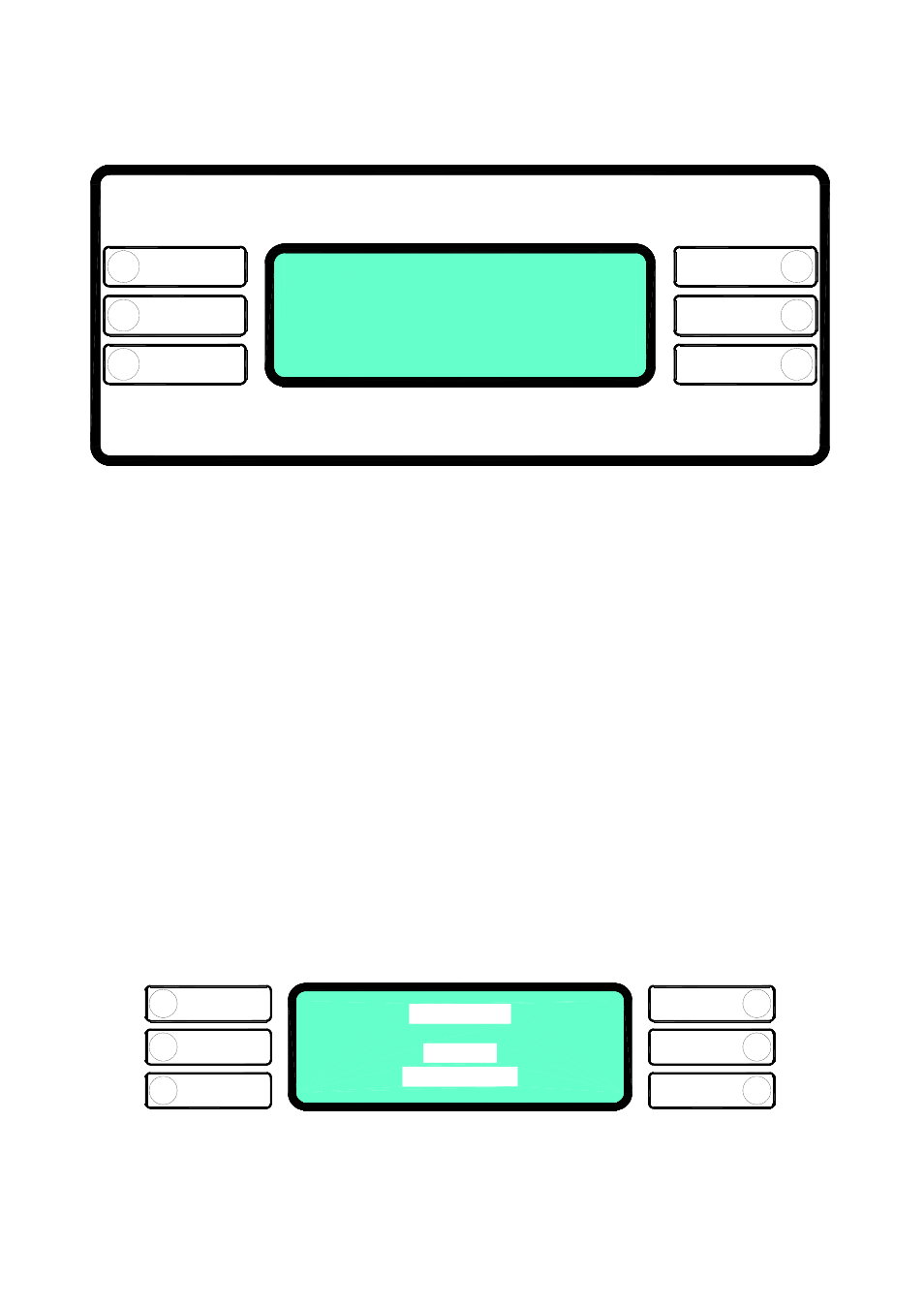

Fig. 6-1 LCD screen
The user interface consists of a back lit LCD screen having:
• 4 lines with 20 characters (standard version for Latin characters);
and
• 6 keys (the function is described for each operating mode).
The operation is extremely simple and is structured on three important main menus related to the ISM
operation, as follows:
METERING An ISM must offer some metering information for the user to be able to examine
the operating status at any time.
ALARMS In case of abnormal functioning, the ISM must keep a history of what has
happened as a series of events.
PARAMETERS The user must be able to program certain functions of the ISM (user parameters,
accessible without password) to his needs.
LCD screen standard version
METERING
ALARMS
PARAMETERS
+
-
ENTER
LCD screen
4 rows x
20 characters
The 3 buttons existing on the left side of the screen are used to activate the operating modes, while the
buttons on the right side are used to carry out functions inside these operating modes.
