GE Industrial Solutions ISM - Manual (Page 16)

Modifications reserved Page 16/34
OPM_ISM_OPT_10K_M50_0GB_V021.doc Operating Manual ISM – Intelligent Synchronization Module
Openings for input and output cable connections
IS
M
_LB
S _ C abine
t in
put
c
abl
e_0
1
A
B
B
A
B

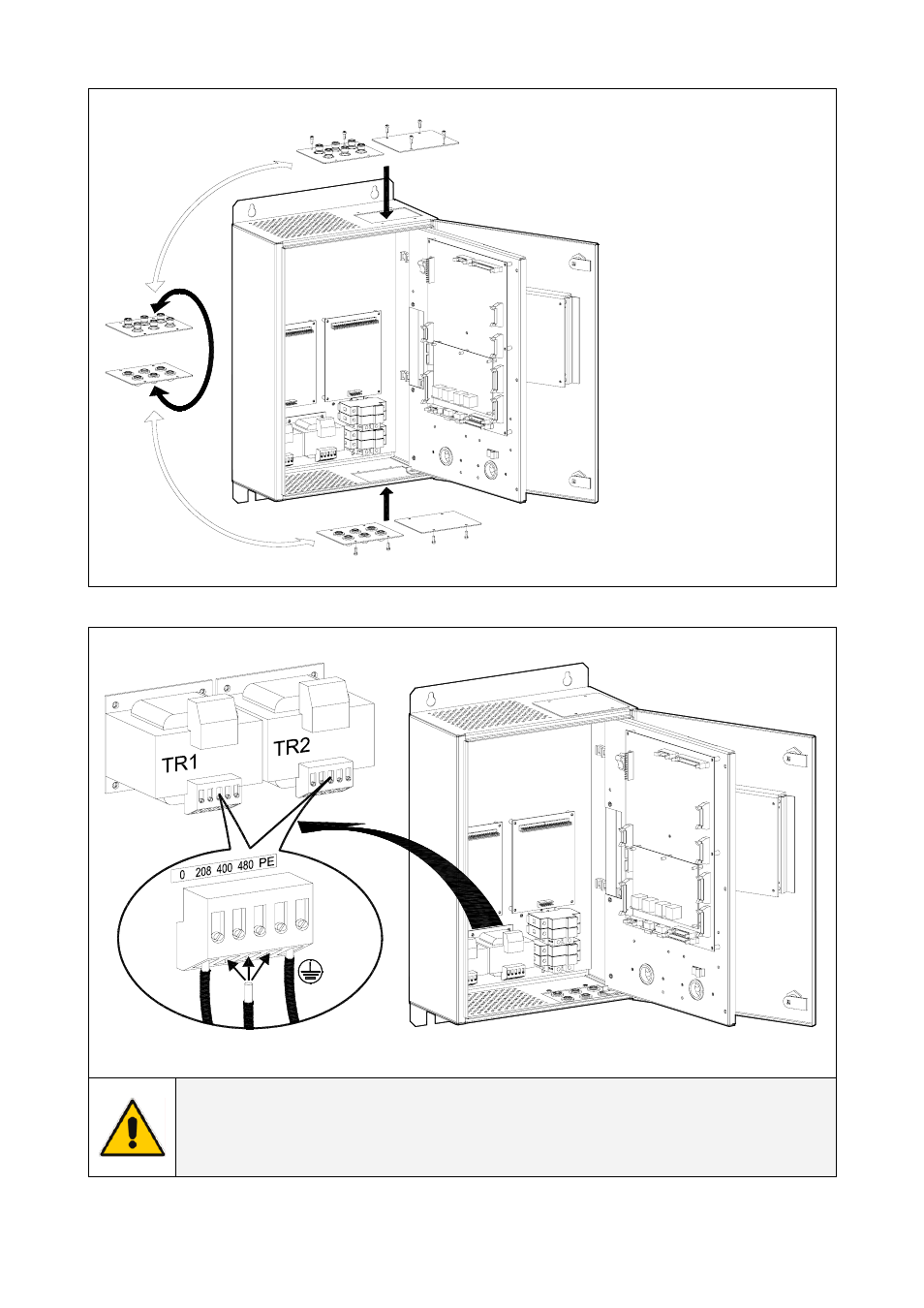

Fig. 4.5-2 Opening on top/bottom of the cabinet for input and output cables
ISM openings are provided
either on top or on the
bottom of the cabinet for
the connection of input and
output cables.
Pay attention to the
position of these openings,
when choosing the
placement of the ISM.
Position of the input and the
output can be modified by
exchanging the cover plates
“A and B” (see Fig. 4.5-2).
Connection of power supply cables
IS
M_LBS_TR1
-TR
2_
01
0
Fig. 4.5-3 Transformer TR1 and TR2
NOTE !
Verify the input voltage for power supply and connect the cable without label to the
corresponding input of the terminal.
Possible voltages are 208V, 400V and 480V (Phase – Phase. See Fig. 4.5-3).
