GE Data Sheet
CAR2012TE series rectifier
Input: 85Vac to 264Vac; Output: 12 Vdc @ 2000W; 3.3Vdc or 5 Vdc @ 4A
February 9, 2014 ©2013 General Electric Company. All rights reserved. Page 19

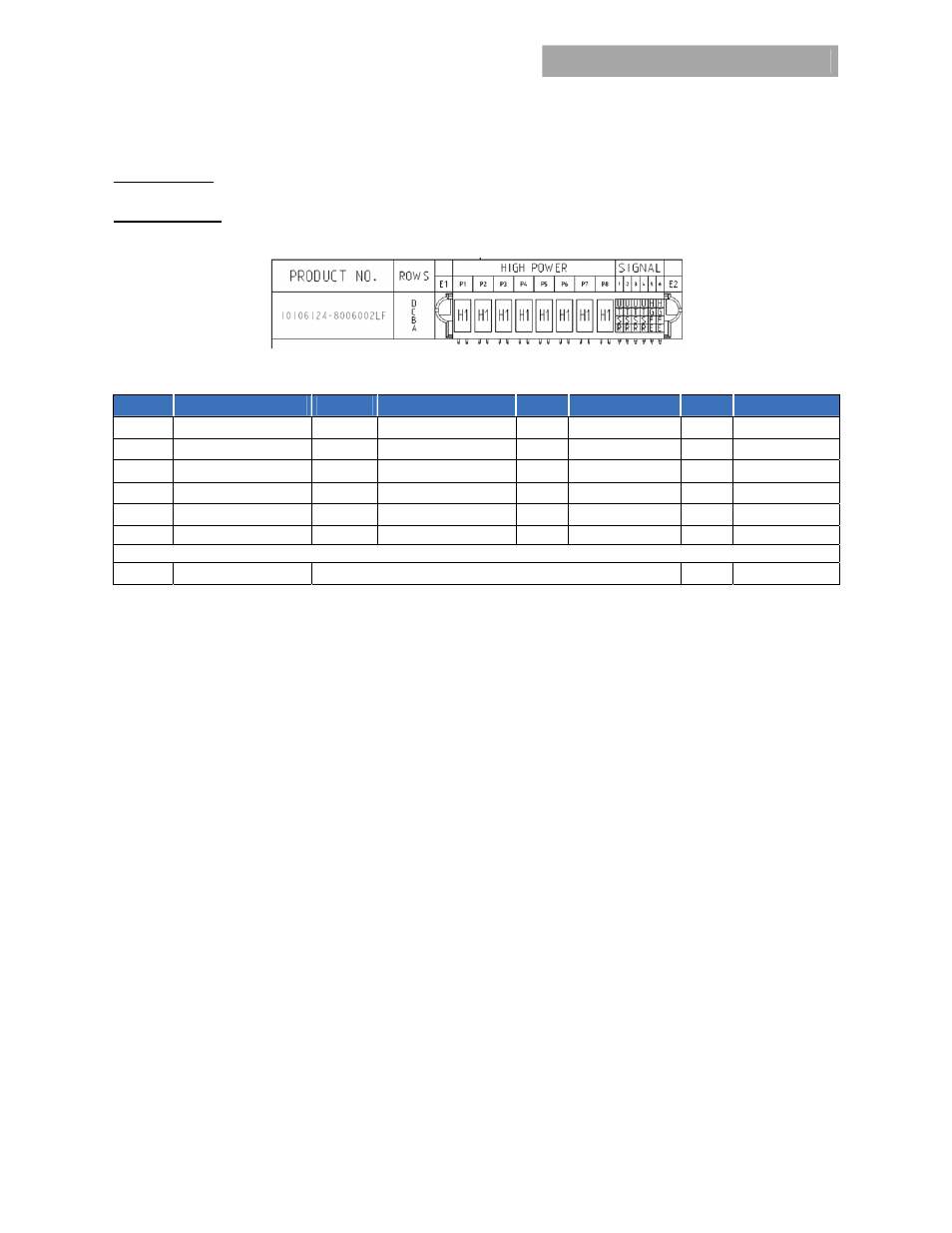

Connector Pin Assignments
Input Connector: IEC320, C20;
mating connector: IEC320, C19 type
Output Connector: FCI Berg P/N 10106124-8006002LF or equivalent
Mating connector: FCI berg P/N
Short signal pins: E,F,G,H
Long signal pins: R,S,T,U
Pin Function Pin Function Pin Function Pin Function
A1 Vstb B1 Fault C1 IShare D1 VProg
A2 Vstb [3.3V] Return B2 I Monitor (IMON) C2 N/A D2 OVP Test Point
A3 Vstb Return B3 Interlock C3 Over Temp Warning D3 Remote ON/OFF
A4 N/A B4 PS Present C4 I 2 C Address (A0) D4 DC OK
A5 Remote Sense (+) B5 SDA (I 2 C bus) C5 I 2 C Address (A1) D5 AC OK
A6 Remote Sense (-) B6 SCL (I 2 C bus) C6 I 2 C Address (A2) D6 SMBAlert
P1 – P4 Output Return P5– P8 +12Vout
