Arc Vault™ Protection System DEH-41483 Rev. 3
Receiving, Handling and Storage
4 © 2011 General Electric All Rights Reserved

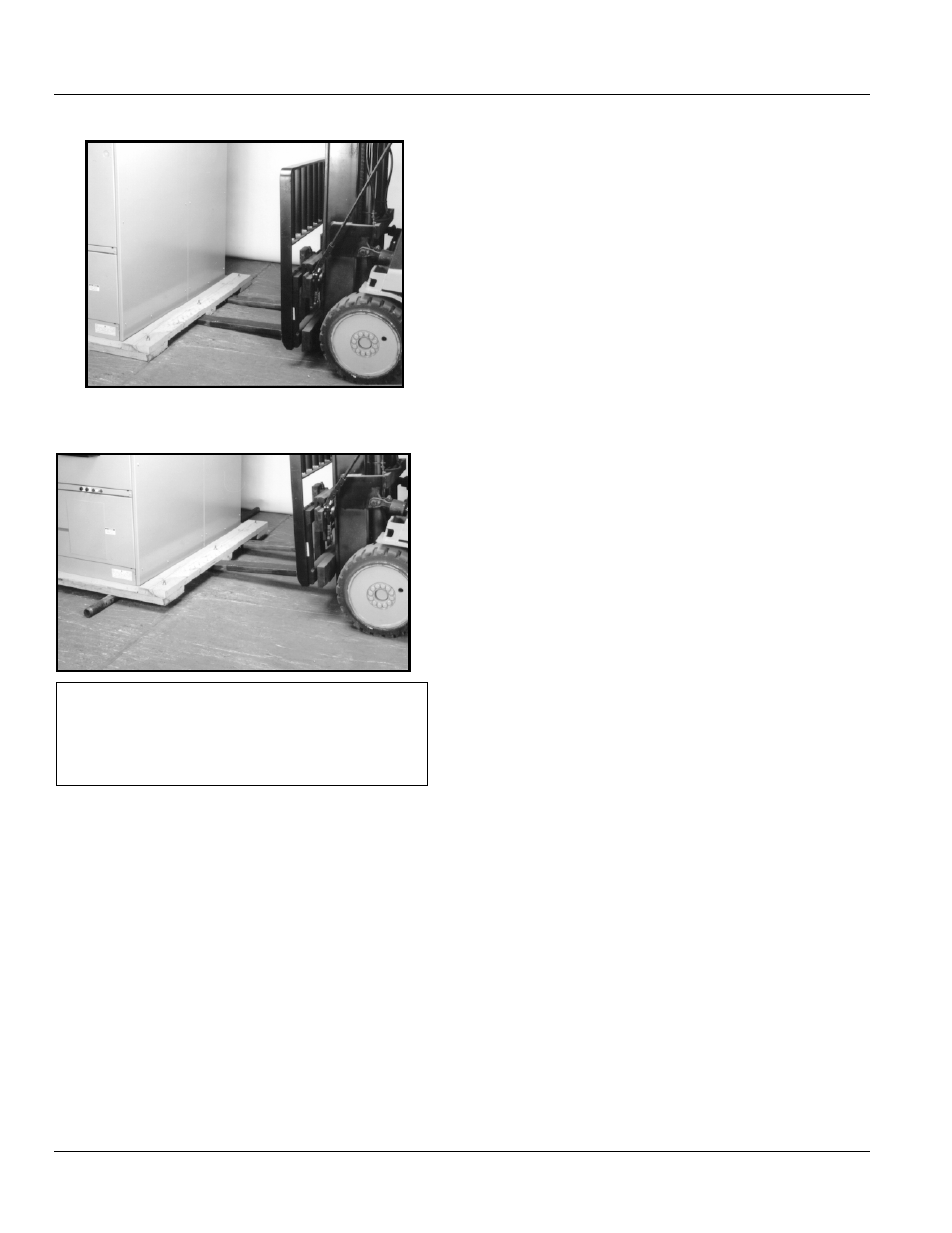

Figure 2-3 Placing forklift tines under shipping skid
Figure 2-4 Placement of rollers under shipping skid
NOTICE
If shipping skids are removed prior to final placement
of equipment, rollers may only be used to move the
equipment in a direction parallel to the front.
4. While carefully pushing the switchgear to its final site
position, the rollers that are freed from the rear of the
switchgear are then repositioned at the forward end.
This procedure should be continued until the
switchgear is in its final location. See Fig. 2-8.
5. When the switchgear is in its final position, remove all
lug bolts holding the shipping skids to the switchgear
line-up.
6. Insert the tines of the forklift at one end of the line-
up, raise slightly, and remove the loose rollers.
7. Lower the end of the gear carefully to the floor.
8. Raise the other end of the line-up slightly and
remove the remaining roller at that end.
