Navigating the Configuration Menus

There are six

Console Mode

screens:

Server

Network

Serial Mode

Operation

Monitor

and

Configuration

Tab

Back Space

and

arrow

keys

can be used to highlight the desired function on the screen list. Pressing

Enter

moves the cursor to the first field with the current screen. The

configuration fields can be changed by pressing

Enter

and selecting from the

list that appears. The

Escape

key moves the cursor back to the screen list.

Pressing the

Space Bar

refreshes the page.

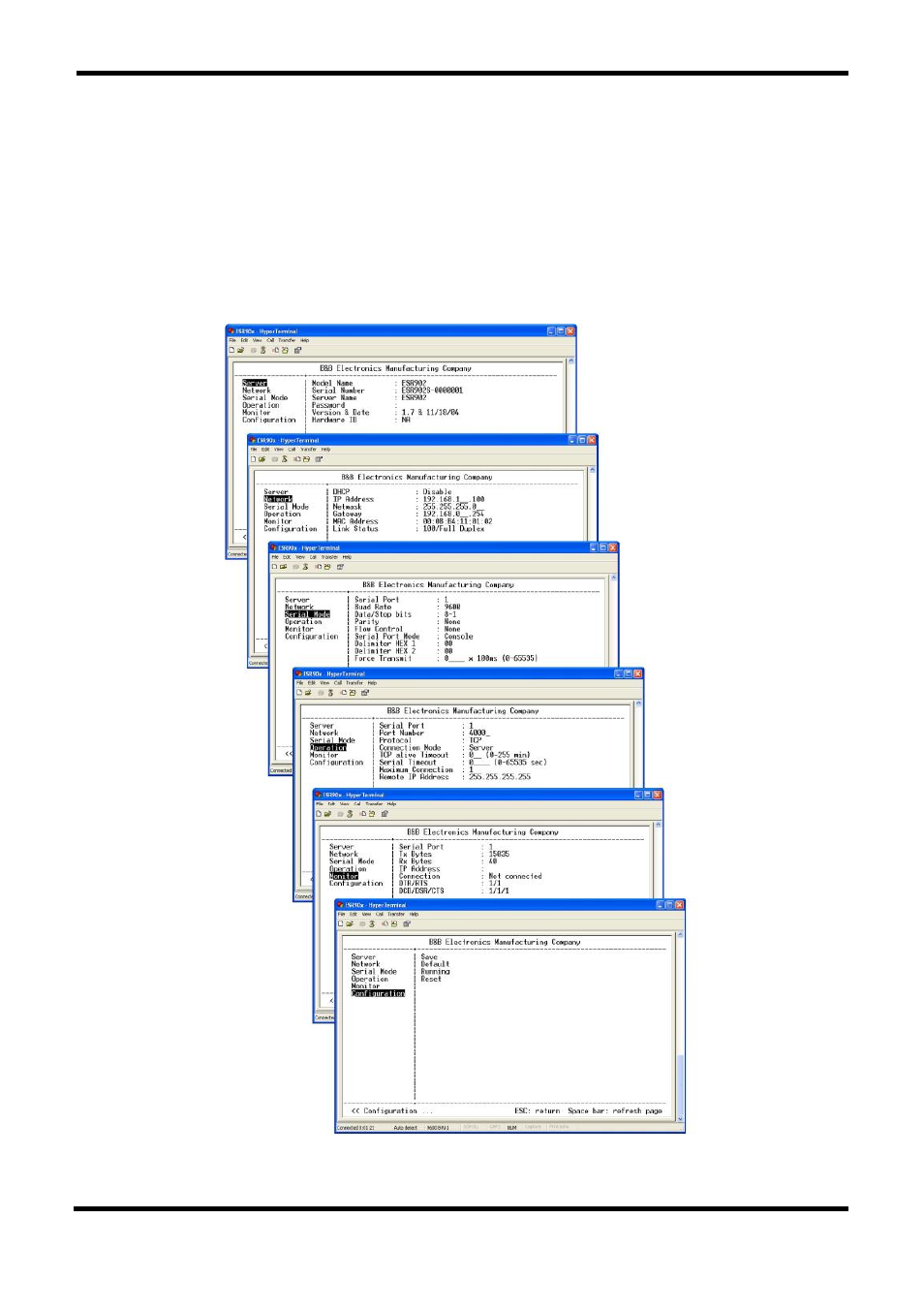

Figure 38. Console Mode Configuration Screens
