Using ESP Manager
24 Chapter 4 Manual Documentation Number ESR90x-5012m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Ethernet
crossover
cable
RS-232
cable
Serial Device
ESR902
PC

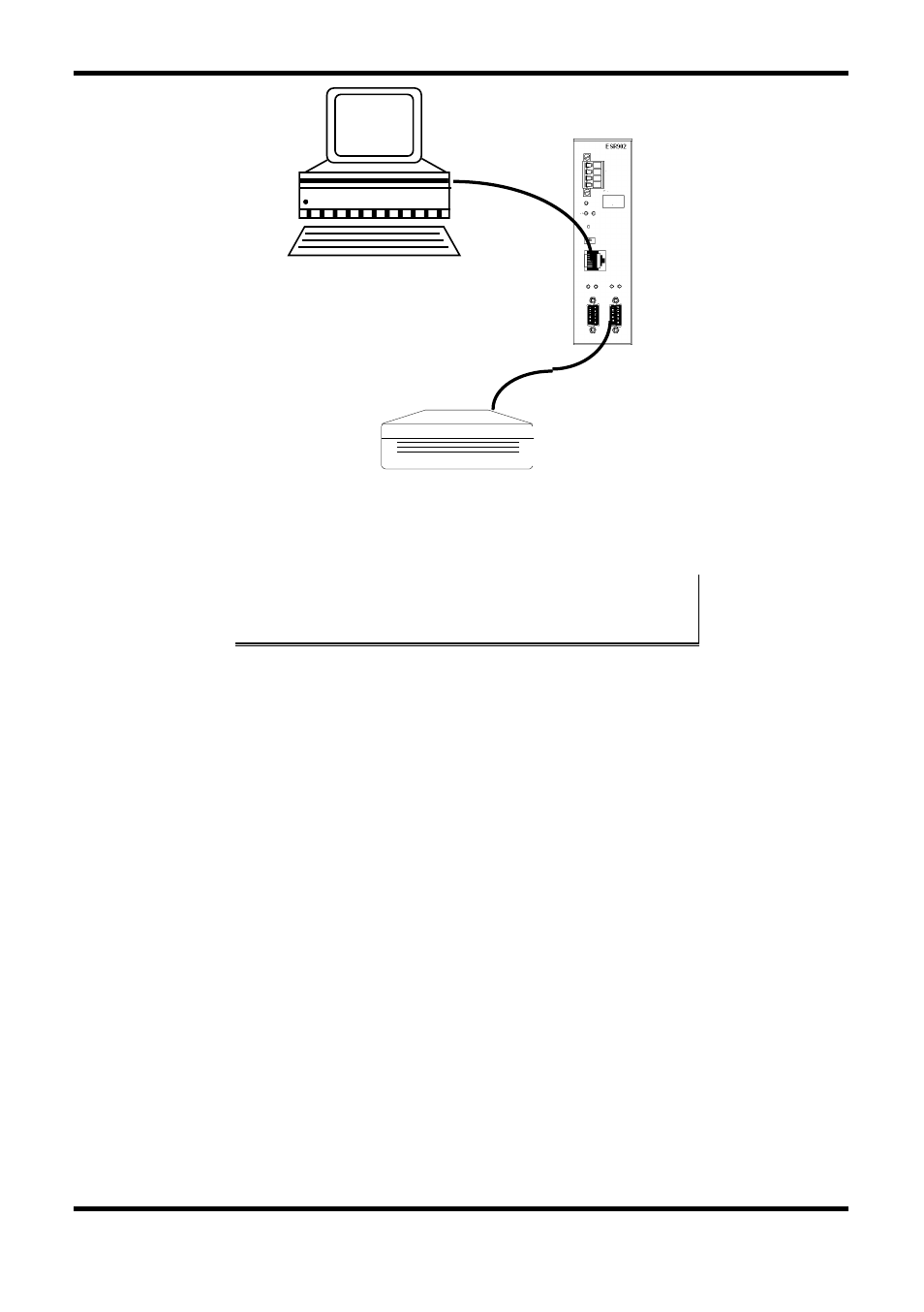

Figure 20. Direct Ethernet Connection using a Crossover Cable
N N o o t t e e : :
Use an Ethernet Crossover Cable if connecting directly to a computer LAN
card.
Step 2: Apply power. The red Power indicator will light, the Link indicator
lights when an Ethernet connection is made, and the Ready indicator
will flash.
Software Setup
Step 3 . To run the ESP Manager, from the Windows Desktop click:
Start

Programs

B&B Electronics

VLINX

ESR Servers

VLINX ESP Manager
As soon as the ESP Manager opens it will initiate Searching
Server and after a few seconds the Serial Server List will display
all (ESP90x and ESR90x) Serial Servers on the network.
