Step 5:
Re-enter
Server Properties
to verify the changes have taken effect,
or to view/change the configuration of other ports. Each port must
be configured separately.
Install Virtual COM Ports on PC
Step 1: From the
Windows Start
menu, run the
Install Virtual COM Ports
utility included with the VLINX software,
Step 2: Search for all servers on the network
Step 3: Select a port and map it to an unused COM port (e.g. Port 15).
Configure it for TCP protocol and the appropriate IP address
(determined in the last section).

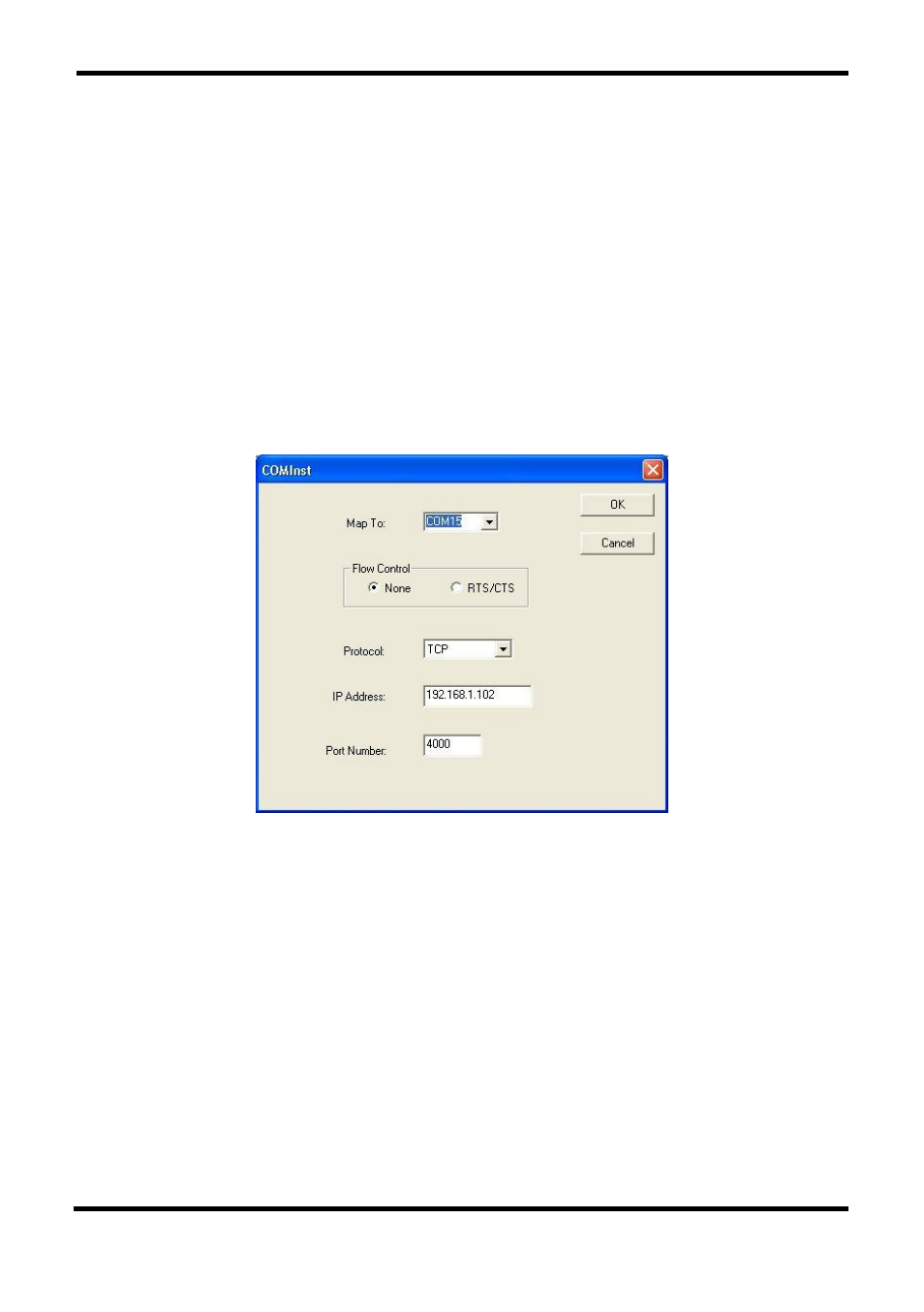

Figure 4.
Configuring the Virtual COM Port
Check Communications
Step 1: From the
Windows Start
menu, run
HyperTerminal
Step 2: Configure
HyperTerminal
to connect using the COM port
configured in the last section (e.g. Port 15).
Step 3: Set
Baud Rate
,
Data/Parity/Stop
, and
Flow Control
to match the
configuration of the serial device connected to the
Serial Server
serial port.
Step 4: Communications with the serial device should now be operational.
