Upgrade Mode

Chapter 8

Manual Documentation Number: ESR90x-5012m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com

B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Upgrading the Firmware

Step 5: Double-click the

Firmware Upgrade

icon (or click the

Server

and

Firmware Upgrade

)

Step 6: In the

Upgrade

window, click

Browse

. The

Open

dialogue box will

appear. Locate the folder on your PC that contains the firmware .hex
file.

Select

the file and click

Open

. The Open dialogue box will

disappear.

Step 7: In the

Upgrade

window select the serial port to be used in

transferring the firmware.

a. If connected directly from the PC to a Serial Server port it

will typically be COM1 or COM2

b. If using a virtual COM port to upgrade via the network,

identify the virtual COM number and address mapped to
Port 1 on the Serial Server.

Step 8: Click

Upgrade

Step 9: In the

Port Settings

window set the

Bits per second

Data bits

Parity

and

Stop

bits to the same values as set up in the

Server

Properties

window. Click

OK.

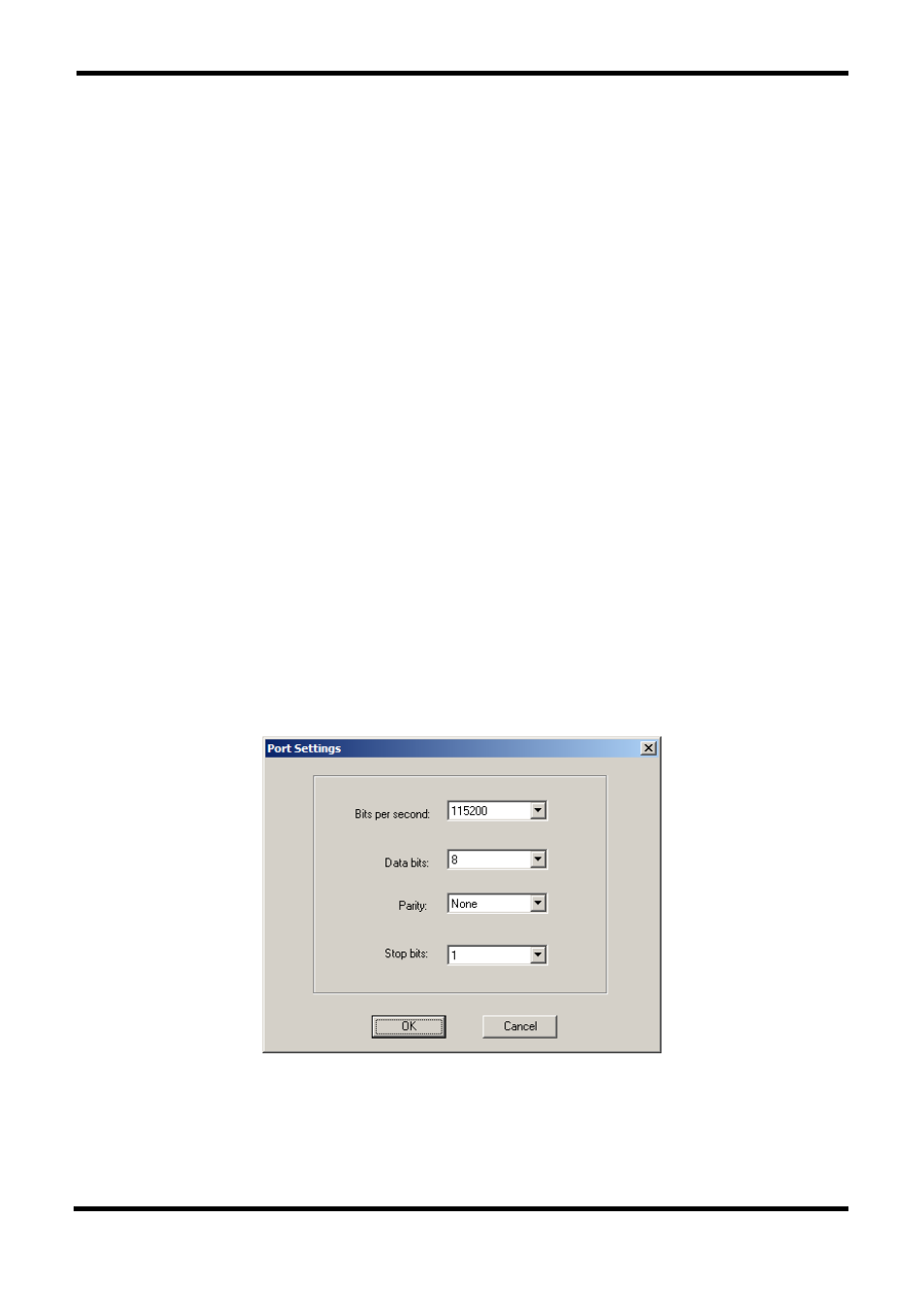

Figure 37. The Port Settings Window

Step 10:

Upgrade progress

will be shown until the

Upgrade finished!

message is shown. Click
