Server Properties Configuration
32 Chapter 5 Manual Documentation Number: ESR90x-5012m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Description of the Server Properties

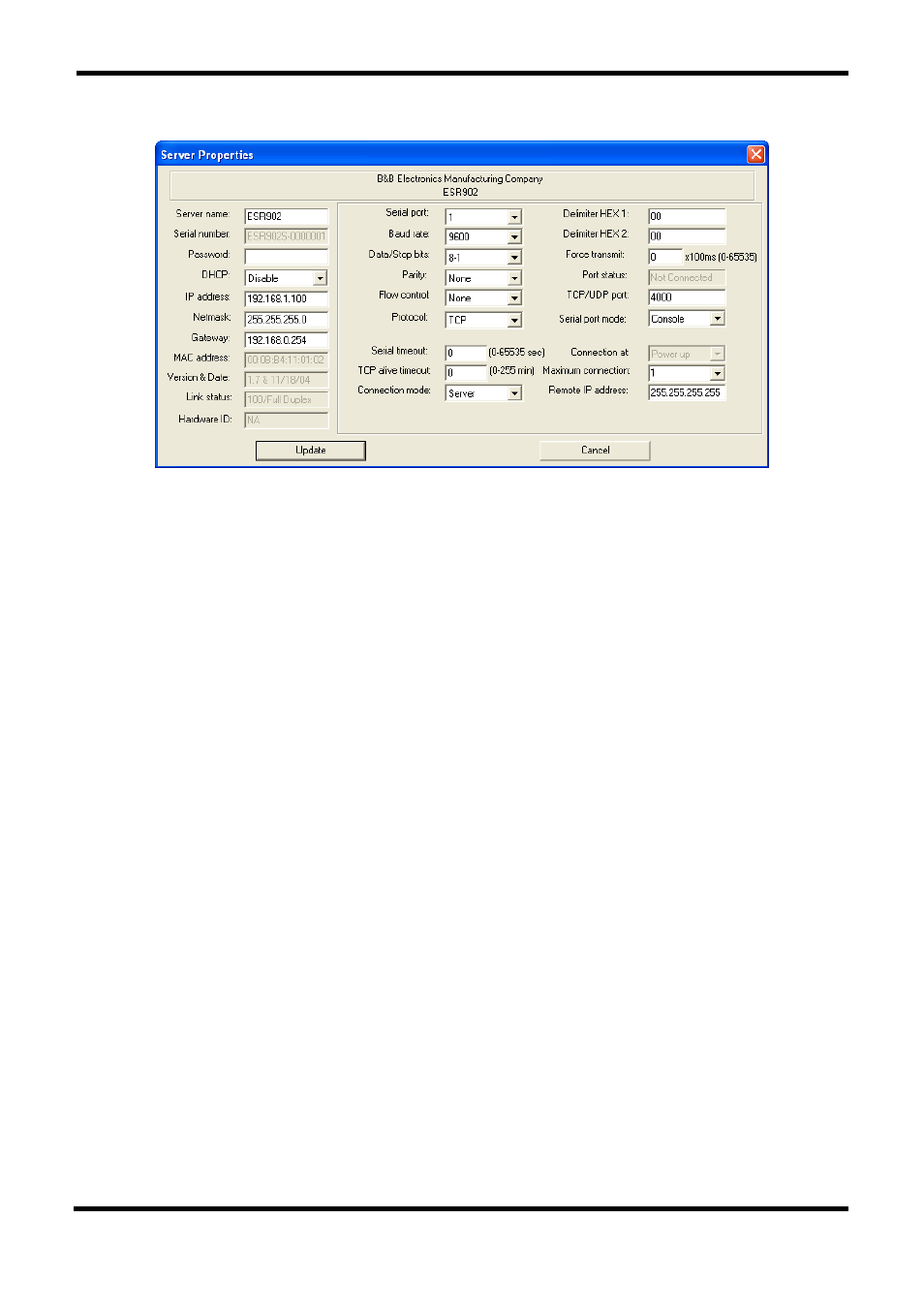

Figure 24. ESP Manager Server Properties Window
Server Name
This field displays the name that has been assigned to the Serial Server. A
new
Server Name of up to 16 characters can be entered. If more than one
Serial Server is connected on the LAN it is recommended that a new name be
assigned to each. When the
ESP Manager finds a Serial Server on the LAN
it displays the server name and IP Address allowing the user to distinguish
between Serial Servers.
Serial Number
Each Serial Server has a unique serial number.It is fixed and cannot be
changed.
Password
Entering a password activates a security feature on the Serial Server. Once a
password is entered it will be required to access the menu and make changes.
DHCP
DHCP servers are a part of numerous LAN management systems. The DHCP
field provides two choices:
Disable and Enable . Disable is the normal, or
default, setting. When enabled, the Serial Server will send a DHCP request to
the DHCP server, which will assign a dynamic IP address, net mask, and
gateway to the Serial Server. If a DHCP server is not available on the
network the Serial Server will time out after 10 seconds and the default
