Installing Virtual COM Port
42 Chapter 6 Manual Documentation Number: ESR90x-5012m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
The program searches the LAN for all available Serial Servers. When
complete, the
Found Server window appears and displays a list of the
servers that were found.

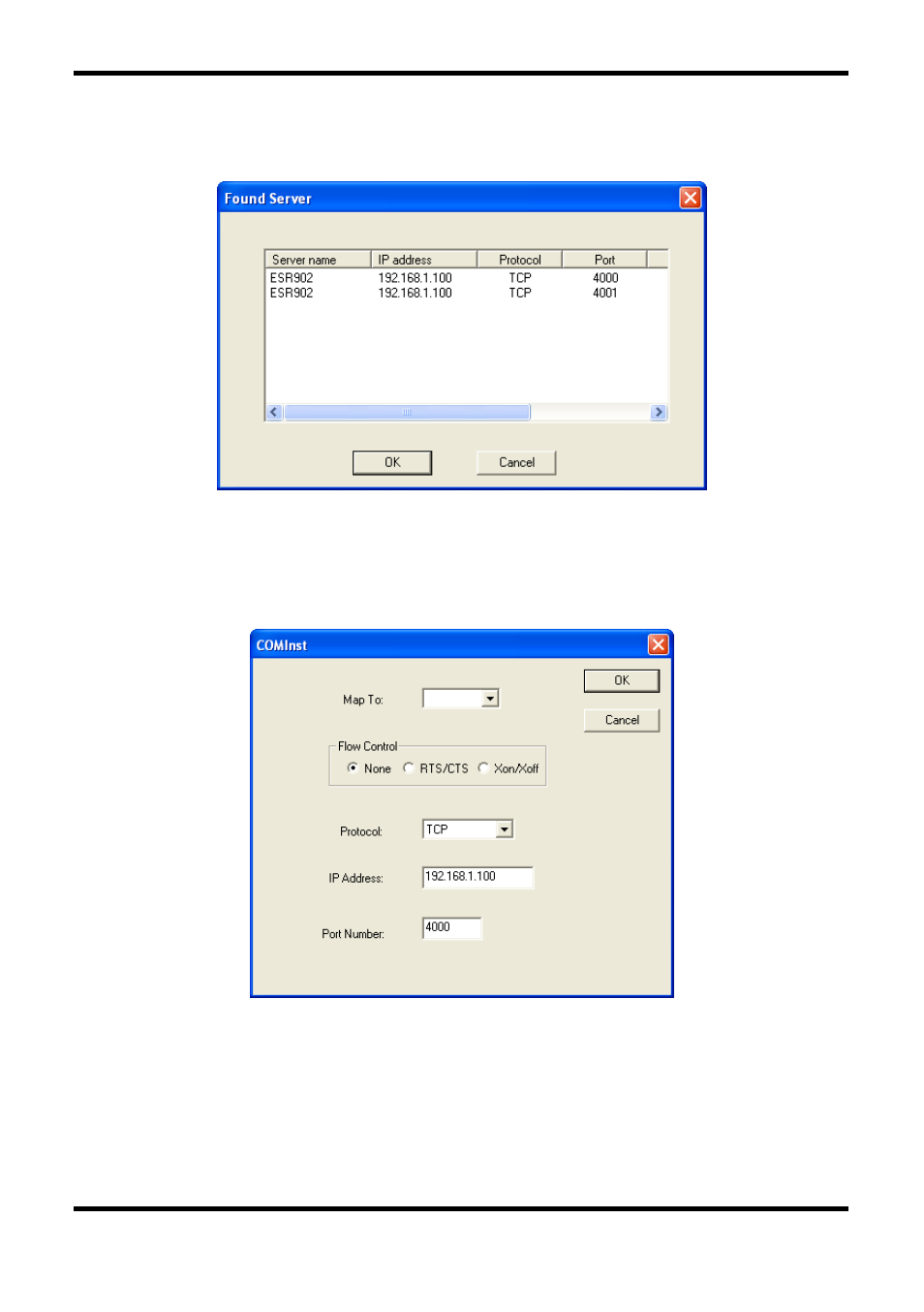

Figure 28. The Found Server Window
Step 3: Select the Serial Server at the IP Address to be mapped to a virtual
COM port, then click OK .
Figure 29. The COMInst Window
Step 4: In the Map To: field, select the number of the virtual COM port to
be assigned. The default Flow Control setting is None . RTS/CTS can be
selected if used by the application program and serial hardware. The Serial
Server must be set to match. The Protocol TCP/UDP, IP Address, and Port
Number will mirror the settings of the selected serial server. Click
OK .
