Installing the VLINX Software
22 Chapter 3 Manual Documentation Number: ESR90x-5012m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
The recommended procedure is to Remove all installed components first.
Once the software has been removed, Install the new software.
Opening the ESP Manager
Step 5: If the Serial Server is not already connected to the network or to the
Ethernet port on the computer, connect it. Set the Run/Console
switch to the Run position. Apply power.
The Power indicator should light red, the Link light should indicate
which type of Ethernet connection has been made and the Ready
LED will flash indicating configuration can begin.
Step 6: Start the ESP Manager software. In Windows Desktop, click:
Start

Programs

B&B Electronics

VLINX

ESR Servers

VLINX ESP Manager .
As soon as the ESP Manager opens it will initiate Searching
Server and after a few seconds the Serial Server List will display
all (ESP90x and ESR90x) Serial Servers on the network.

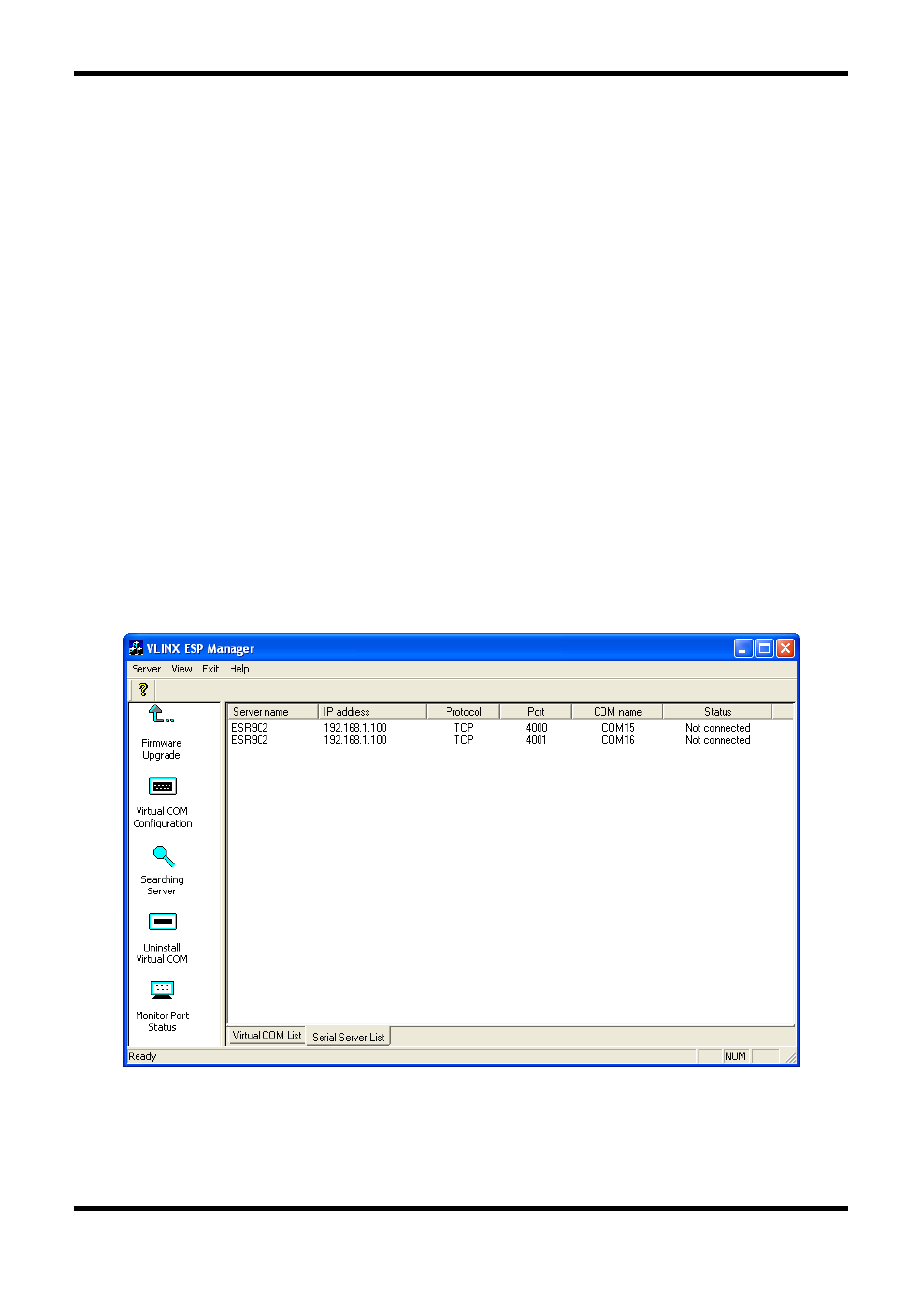

Figure 18. ESP Manager Displaying all ESR90x Serial Servers
