Using ESP Manager

Manual Documentation Number: ESR90x-5012m

Chapter 4

23

B&B Electronics Mfg Co Inc – 707 Dayton Rd - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com

B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

C

C

h

h

a

a

p

p

t

t

e

e

r

r

4

4

:

:

U

U

S

S

I

I

N

N

G

G

E

E

S

S

P

P

M

M

A

A

N

N

A

A

G

G

E

E

R

R

The

ESP Manager

software allows:

Searching for servers connected to the network

Displaying and changing the configuration of those servers

Installing virtual COM ports on a computer

Displaying and configuring virtual COM ports

Uninstalling virtual COM ports on a computer

Upgrading the Serial Server firmware

Monitoring Port Status

Saving and Loading Configuration Files

Hardware Setup

Step 1:

Connect the Serial Server to the LAN or to a computer Ethernet

port. Set the Run/Console DIP switch on the Serial Server to the
Run position

LAN

Ethernet
cable

Ethernet
cable

RS-232
cable

Serial Device

ESR902

PC

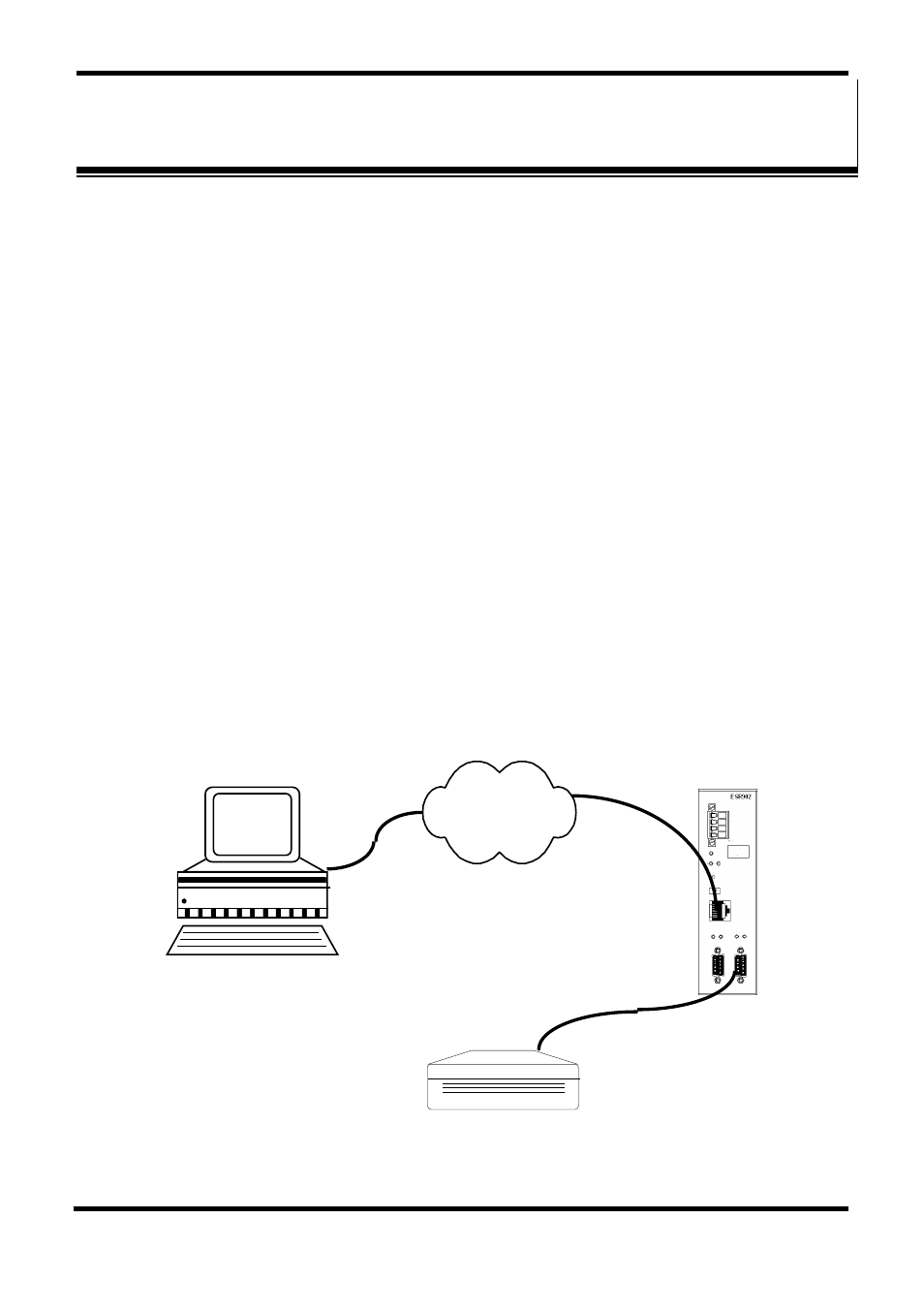

Figure 19. Ethernet Connection via a LAN
