Making the Hardware Connections
Manual Documentation Number: ESR90x-5012m Chapter 2 15
B&B Electronics Mfg Co Inc – 707 Dayton Rd - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
J14
J11
J7
J4
J3
J6
J10
J15
J16
J13
J9
J2

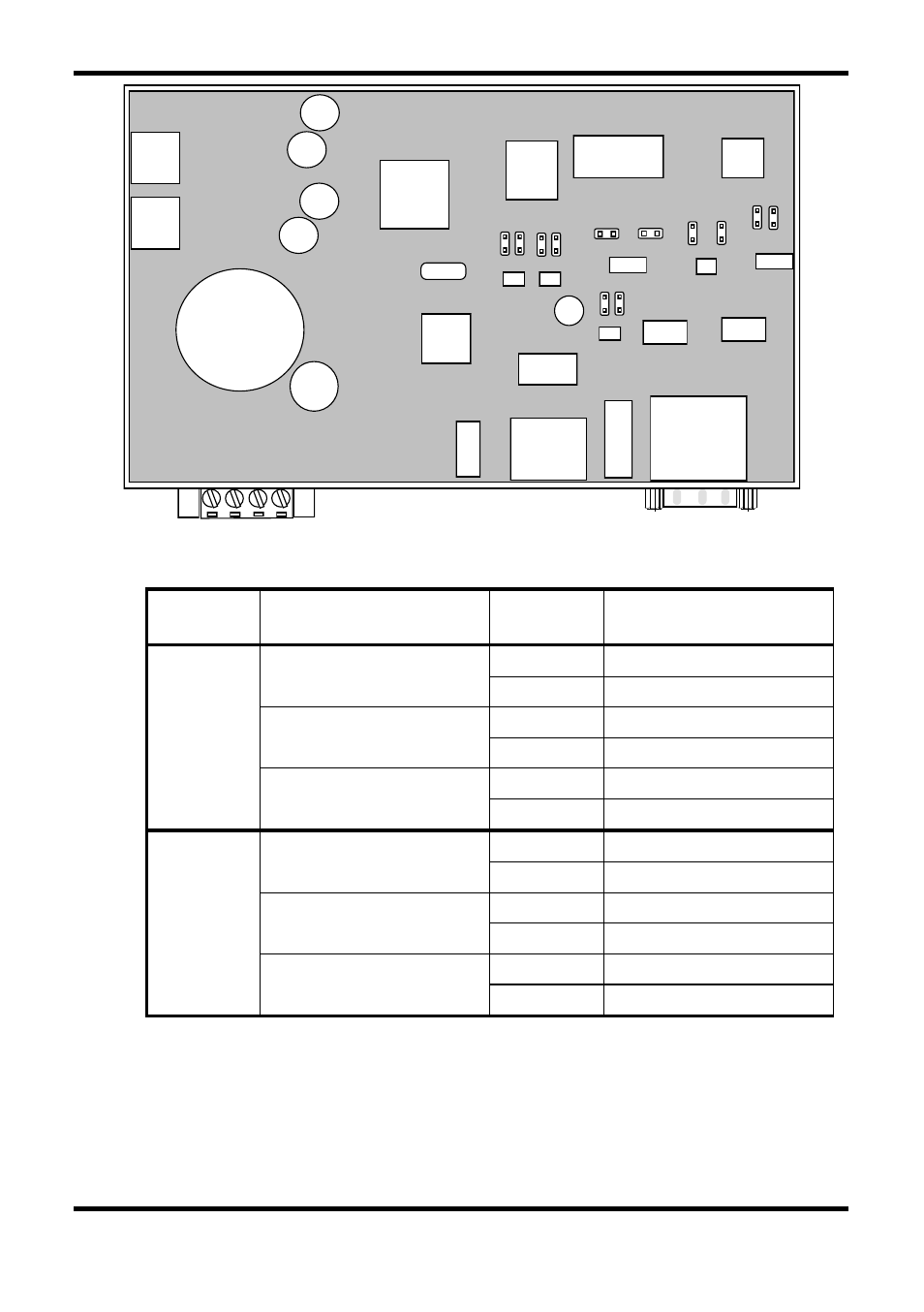

Figure 8. ESR902 Bias Jumper Locations
Port Interface Type
Jumper
Number
Pull up/pull down
1
485 half duplex
J2 pull up
J10 pull down
422/485 full duplex
J4 pull up
J14 pull down
CTS
J7 pull up
J6 pull down
2
485 half duplex
J9 pull up
J15 pull down
422/485 full duplex
J3 pull up
J13 pull down
CTS
J11 pull up
J16 pull down
Figure 9. ESR902 Bias Jumpers
