GW-7553 PROFIBUS/Modbus TCP Gateway User Manual (Version 1.00, Dec/2008) PAGE: 72


Step 5:

Set COM Port communication setting of Utility (please refer section 5.2.2
COM Port settings) the same as COM Port setting of GW-7553(please
refer section 4.3 The Configuration of the common parameters)

Step 6:

Click “Communication=>Connect” button in menu.

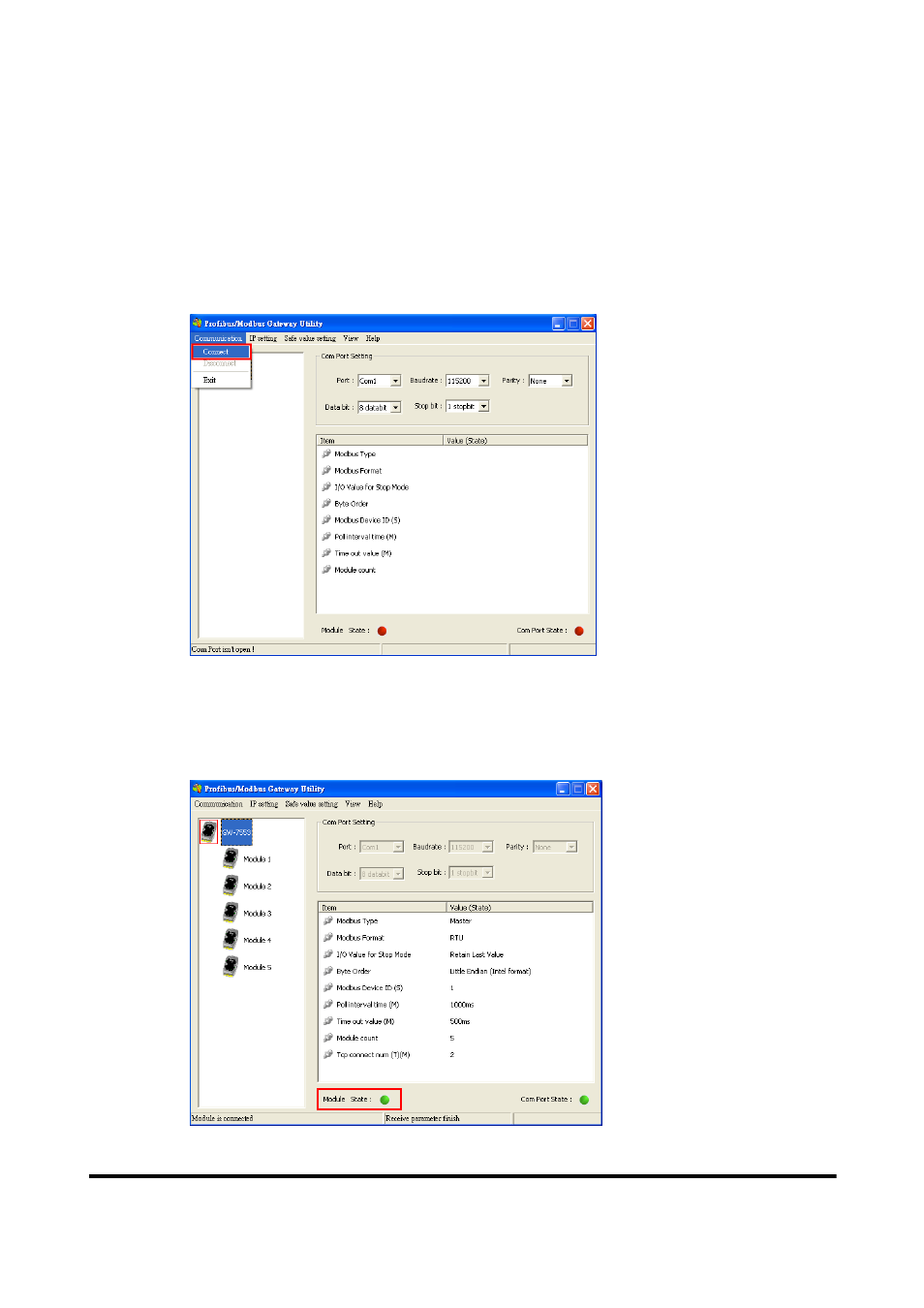

Figure 75 Communication menu

Step 7:

Module state shows green in the Utility now, it means the connection is
complete.

Figure 76 Display connection state
