4. Communication

4.1 Field of application

A master station can be a PLC, PC or any other smart device. The system can be a
mono-master system (Figure 26) or a multi-master system (Figure 27). The GW-
7553 enables the integration of the Modbus devices into a PROFIBUS DP
network.

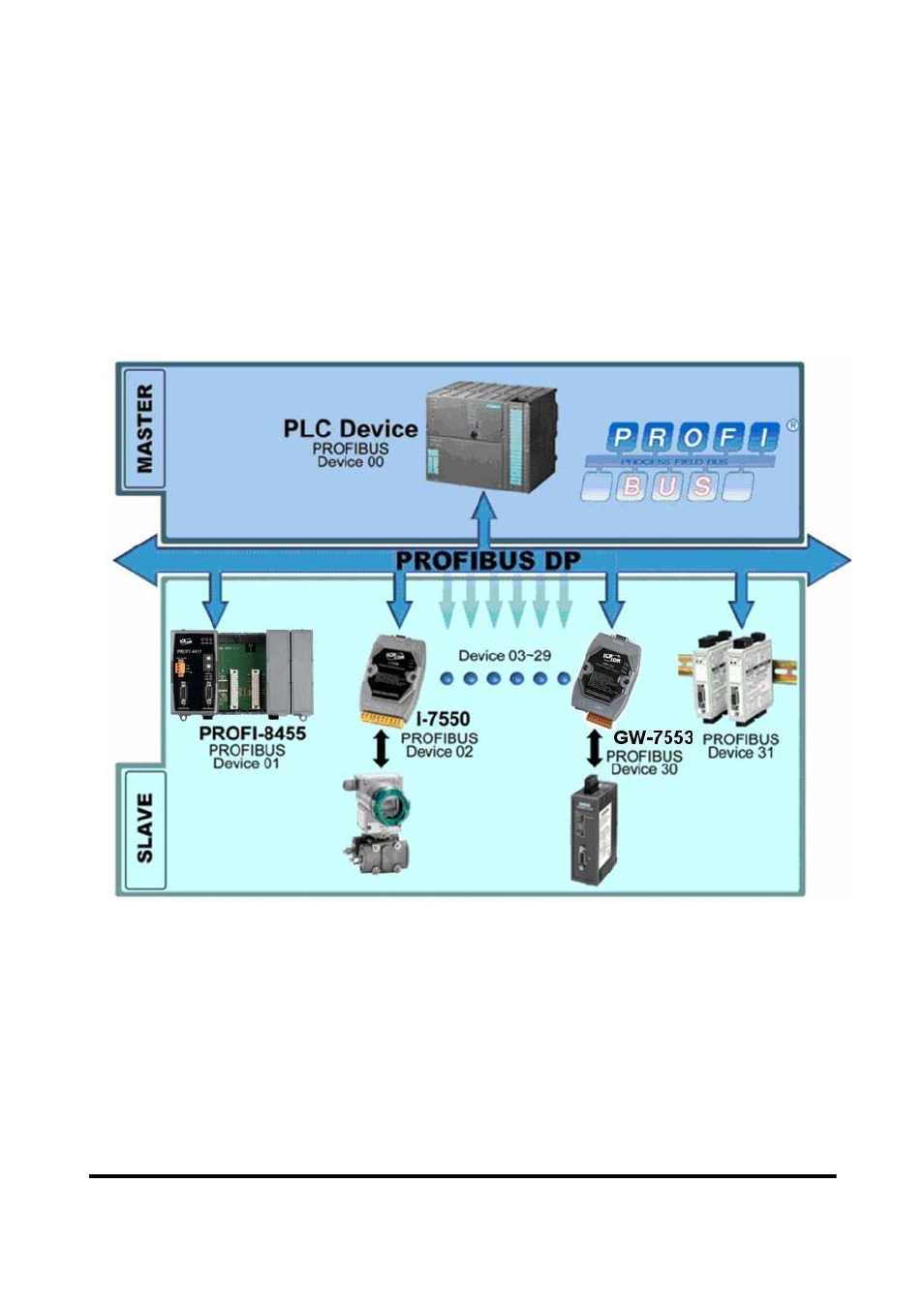

Figure 26 Mono-master system

GW-7553 PROFIBUS/Modbus TCP Gateway User Manual (Version 1.00, Dec/2008) PAGE: 26
