GW-7553 PROFIBUS/Modbus TCP Gateway User Manual (Version 1.00, Dec/2008) PAGE: 24

When the GW-7553 acts as a Modbus Slave device, the data exchange runs
continuously between PROFIBUS Master and the GW-7553 and the data
exchange runs between Modbus Master device and the GW-7553, when GW-7553
receive query message from Modbus Master device, as shown in figure 24

、

25.

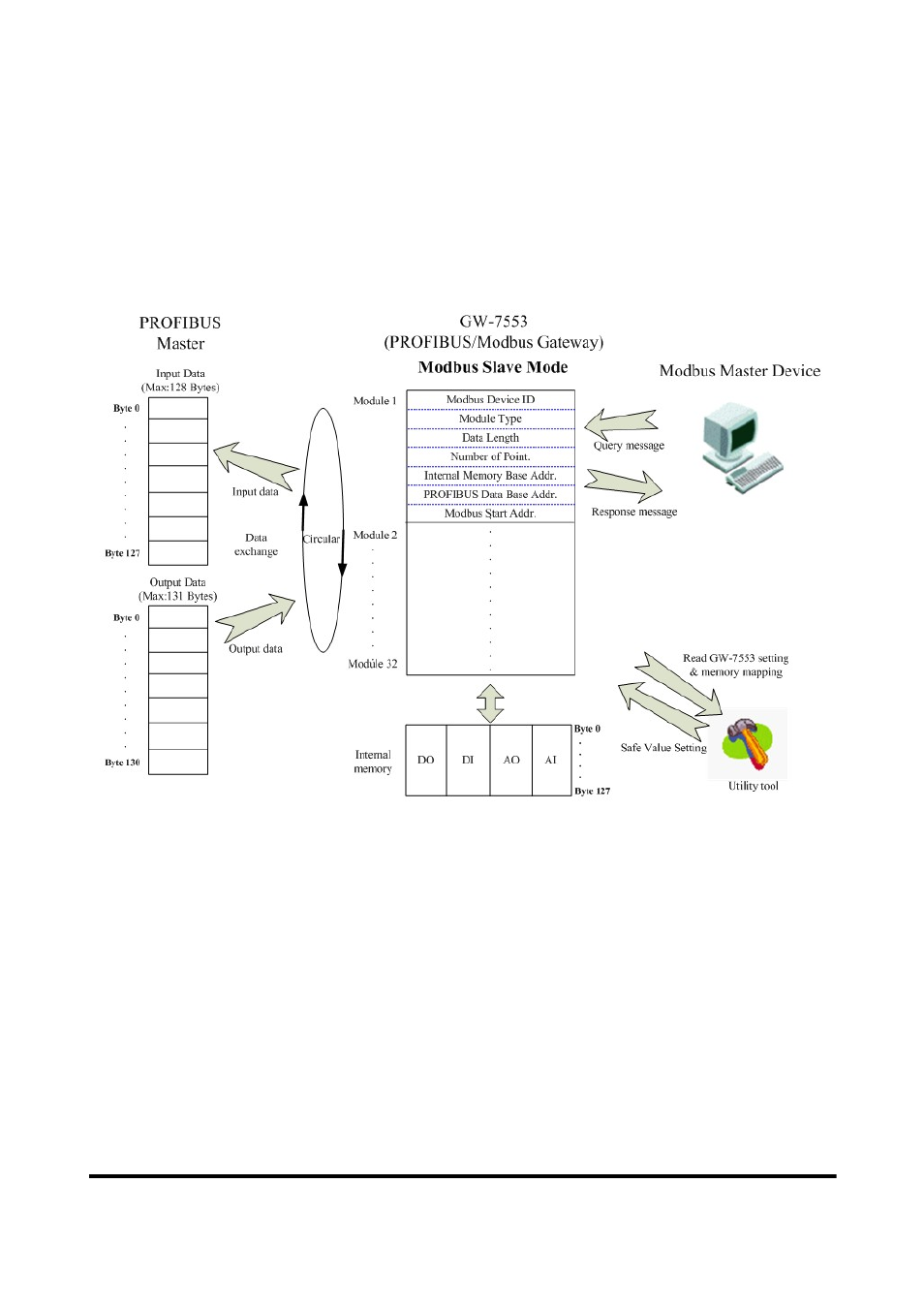

Figure 24 GW-7553 (slave mode) communication protocol transfer
