File->CopyGSD
(Directory: --> CD: \profibus\gateway\gw-7553\gsd\)

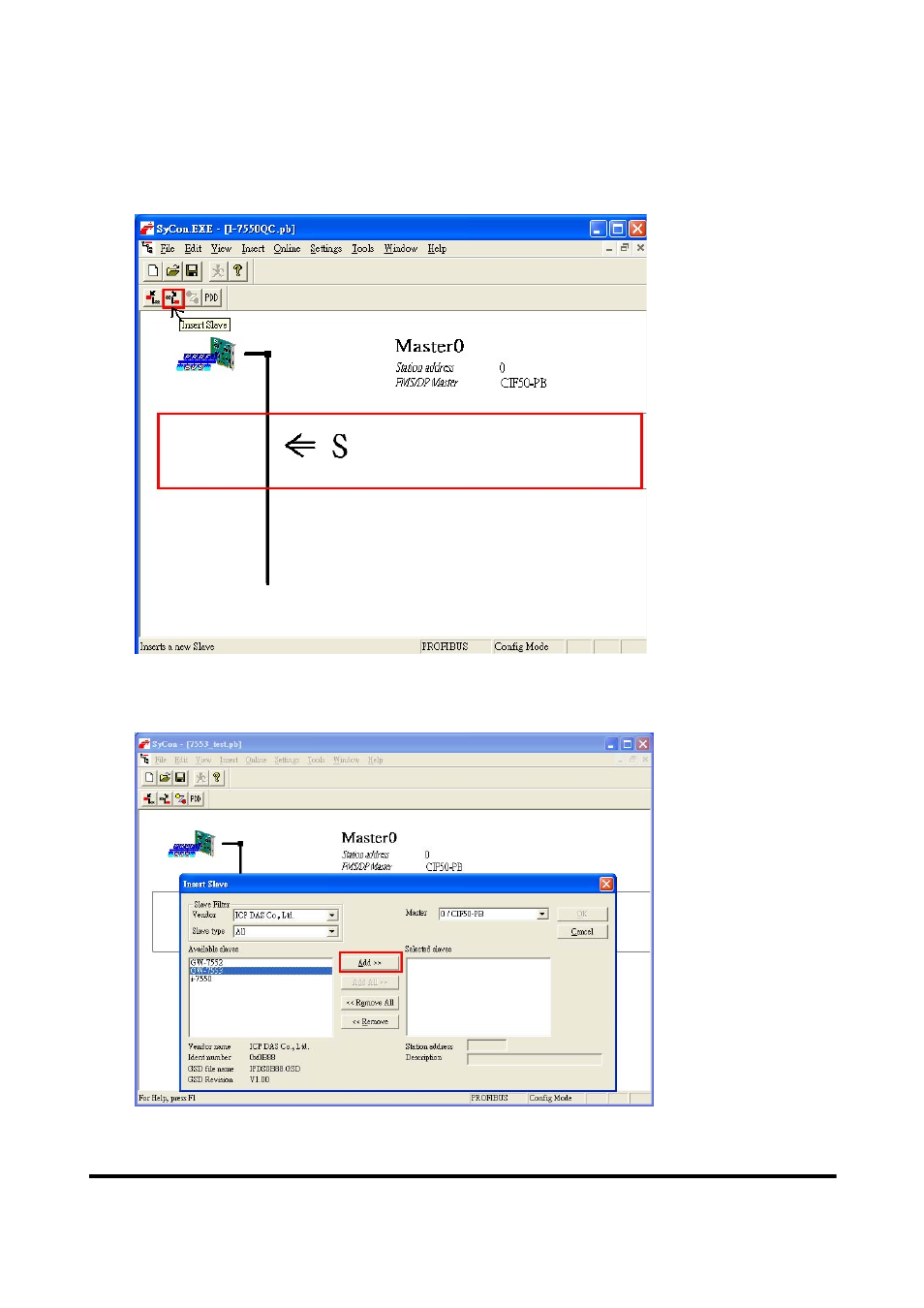

Step 2: Click “insert slave” button in the PROFIBUS configuration tool.

Figure 28 Insert PROFIBUS Slave device

Step 3: Select GW-7553 and click “Add” button to assign the GW-7553.

Figure 29 Assign the GW-7553

GW-7553 PROFIBUS/Modbus TCP Gateway User Manual (Version 1.00, Dec/2008) PAGE: 28
