ASSEMBLY
/ Installation of visual mirror unit (front side)
II. DSU
II . 8 - 1 3 Page

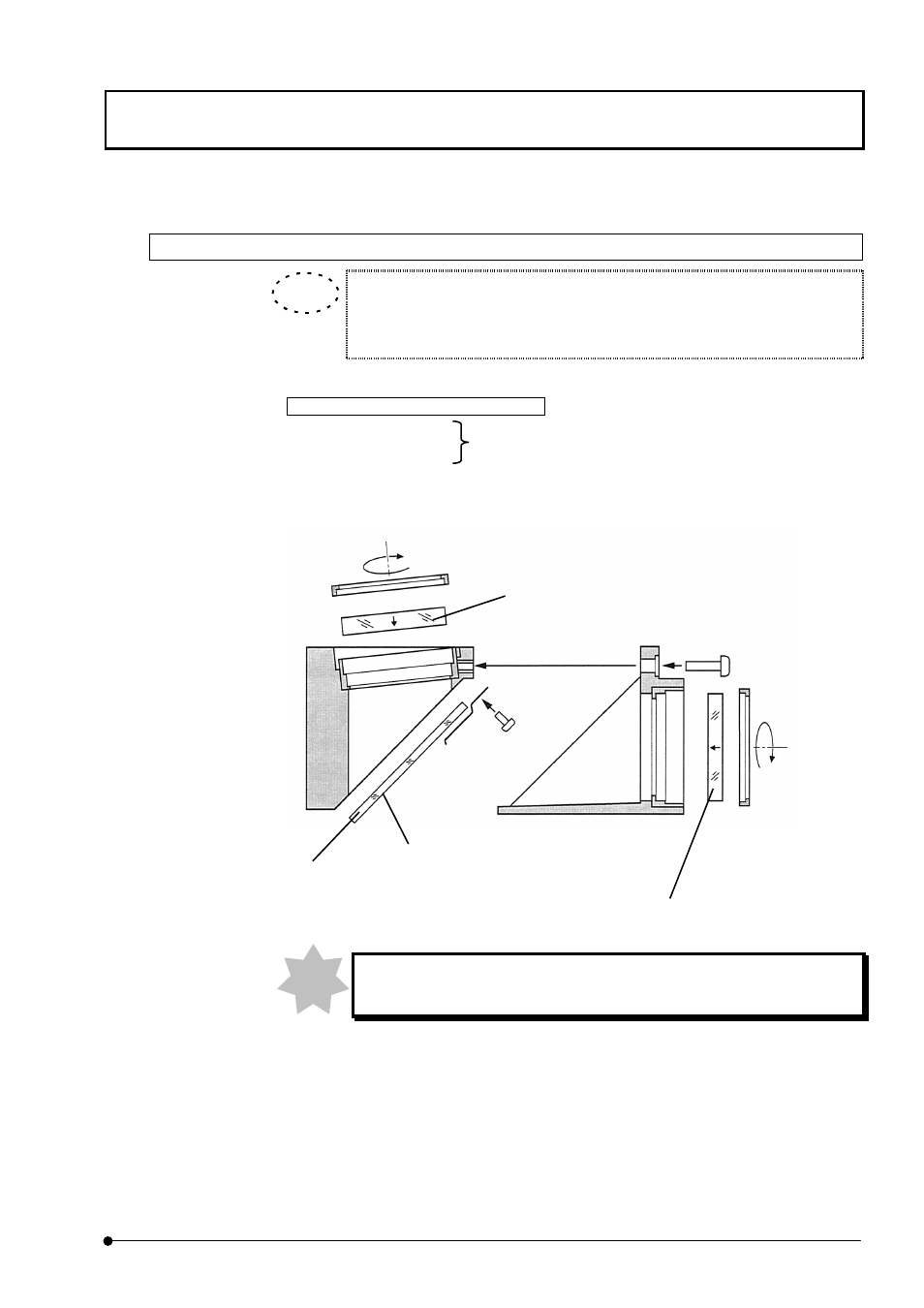

8-10-3 Method to make optionnal fluorescent mirror unit
You can make optional fluorescent mirror unit by attaching mirror unit frame
U-MF2 to commercially available barrier Filter, excitation filter or dichroic
mirror.
Dimensional conditions for optical parts
• Barrier Filter
• Excitation filter
mm 25 0.2
0.1
-
-
f
Max. Height 6mm
• Dichroic filter
mm 38 26 0.3 -
-0.1
0.3
0.1
´ -
-
Thickness 1±0.05mm
When you change dichroic mirror, be careful so as not to contaminate it
with your finger print.
TIP
Barrier Filter (commercial available)
Dichroic mirror
(Commercial available)
Interference film surface
Excitation filter
(commercial available)
Note
