Gas sampling and gas conditioning technology 2-1.1.5-ME

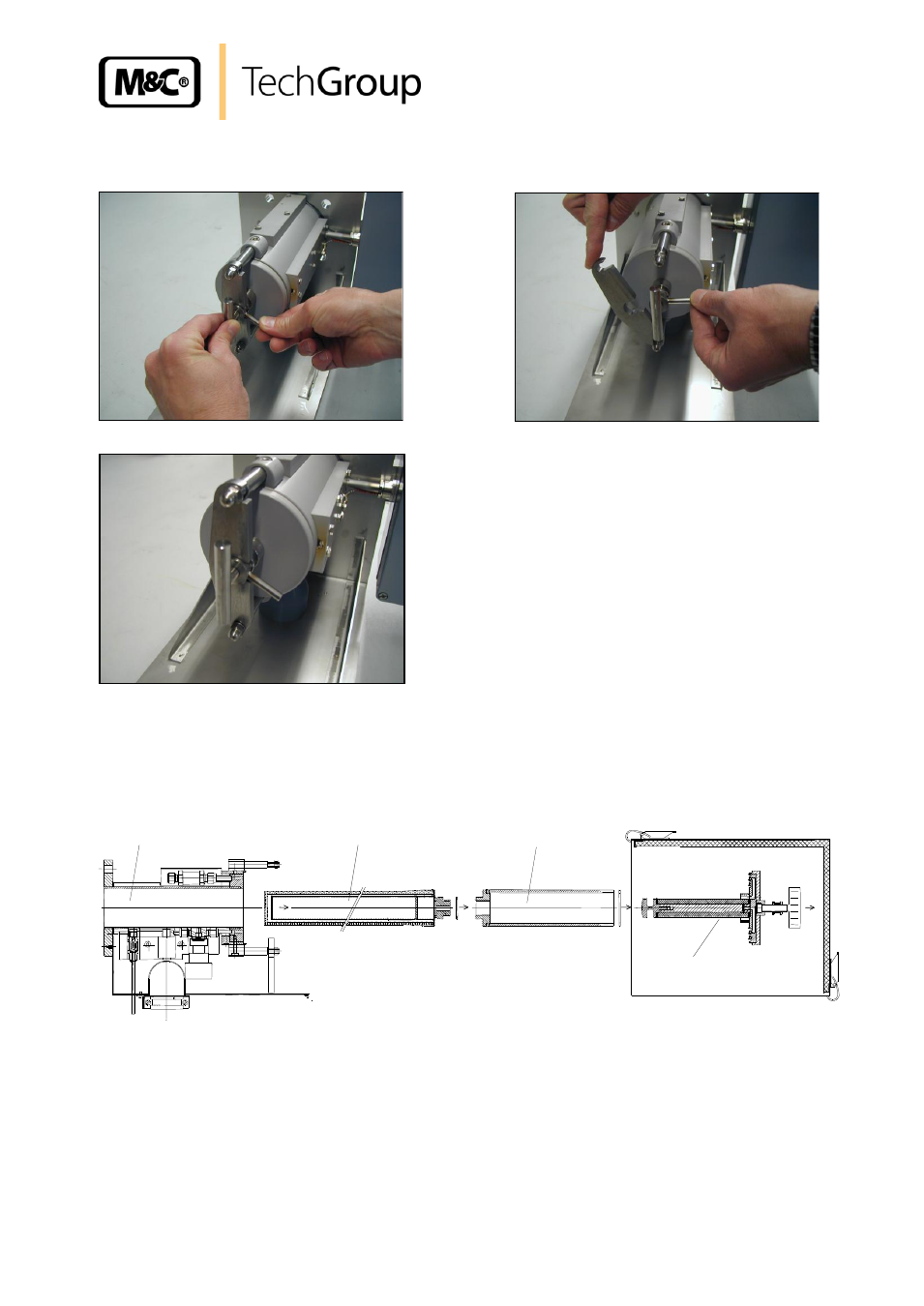

The following figures show the described steps.
Figure 6 Removal of filter housing cover
Fitting of the preliminary filter or sample tube takes place as follows:

Unscrew the mounting adapter  for the preliminary filter  or sample tube from the filter housing
cover .
  

Figure 7 Fitting preliminary filter or sample tube
The filter element is now visible.

Check that the filter element is screwed tight and then screw on the mounting adapter  again.

Screw the preliminary filter  or sample tube with appropriate seal into the ¾“ thread of the
mounting adapter ;
