12

Gas sampling and gas conditioning technology

2-1.1.5-ME

9

DIMENSIONS

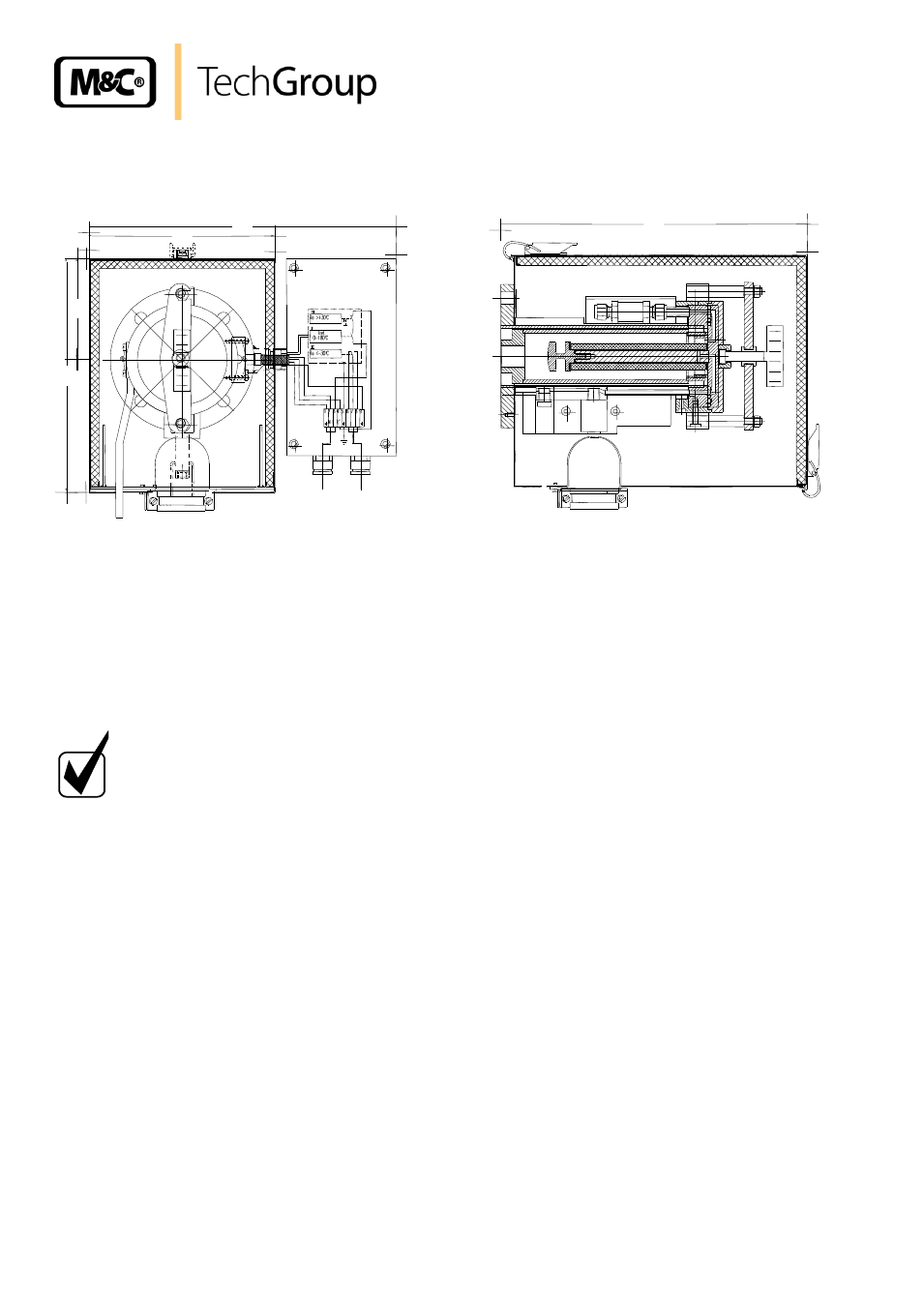

The following illustration shows the dimensions of the SP2500-H.. probe.

340

110

260

207

345

Figure 4

Dimensions (mm) of SP2500-H.. probe



10

RECEIPT AND STORAGE

The probe and any special accessories should immediately be unpacked carefully upon delivery

and against the delivery note.

The delivery should be checked for any transport damage and the transport insurer immediately

notified of any damage.

N O T E !


The probe should be stored protected from frost.



11

INSTALLATION INFORMATION

When carrying out installation, the safety rules and regulations for the prevention of accidents must be
observed

– this applies similarly to subsequent operation. The information in Chapter 3 “Important

safety information” must be observed in particular.

The following applies:

Select an optimal sample point according to the general guidelines or agree on a sample point
with the responsible authorities.

The sample point should be arranged so that sufficient space for installation and removal of the
probe is available; the insertion length of the sample tube should be taken into account.

Easy access to the probe must be ensured for any necessary maintenance.

The sample nozzle locally should be dimensioned so that the nozzle temperature is always above
the acid dew point to prevent corrosion and blockages.

If the ambient temperature in the area of the nozzle is higher than 60°C due to the radiated heat,
a radiant heat reflective plate must be installed in the area of the nozzle locally to protect the
probe.
