8 Gas sampling and gas conditioning technology 10.1a-ME

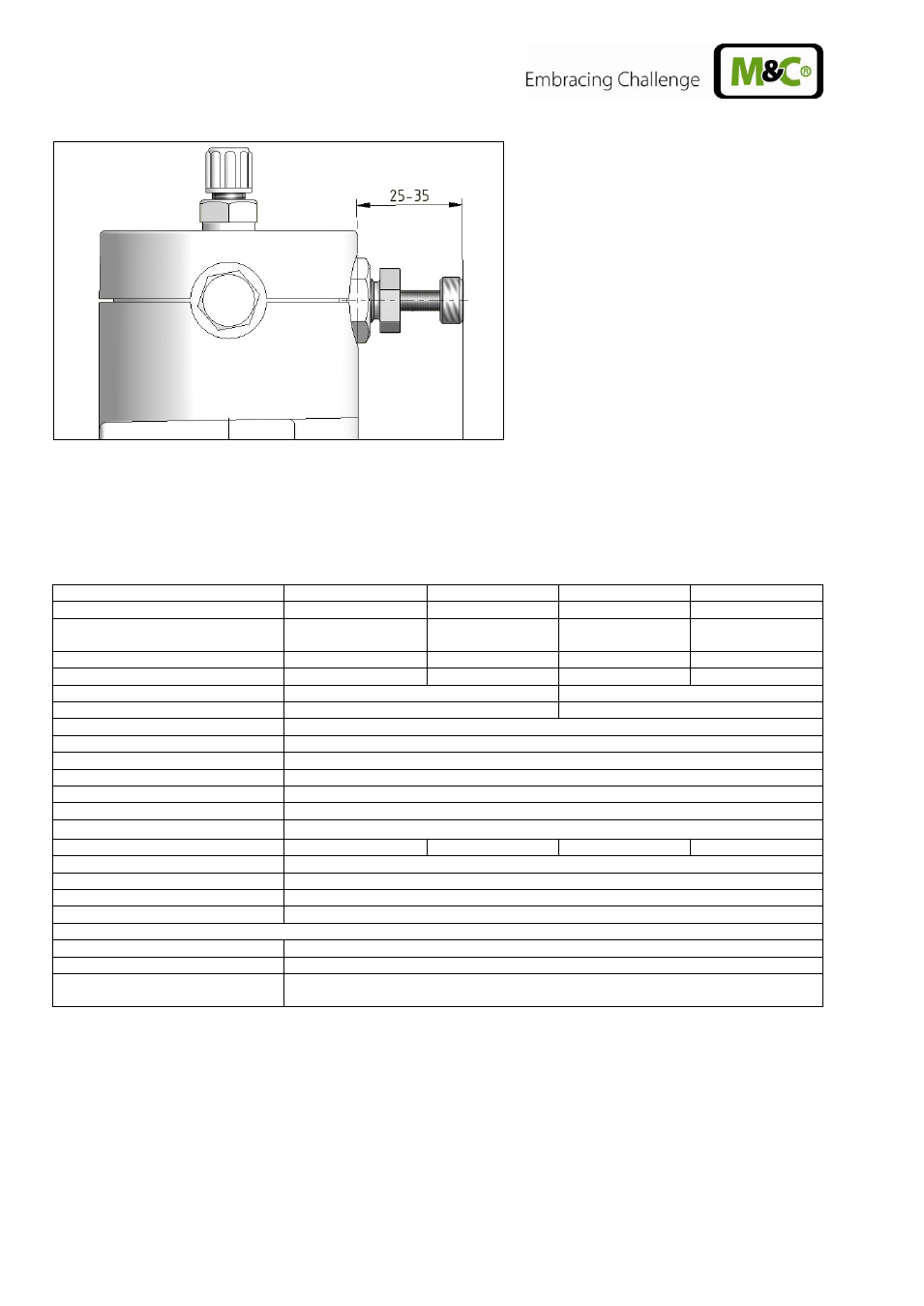

Figure 1
Bellows pump with needle valve type MP-F../R
9 TECHNICAL DATA
Bellows pump MP-F05 /230V MP-F05 /115V MP-F10 /230V MP-F10/115V
Part no. 05 P 1000 05 P 1000A 05 P 1005 02 P 1005A
Part no. with needle valve
MP-F../R
05 P 1010 05 P 1010A 05 P 1015 05 P 1015A
Voltage 230V 50Hz +/-5% 115V 60Hz +/-5% 230V 50Hz.+/-5% 115V 60Hz +/-5%
Capacity max. 5,0 l/min* pressureless 10 l/min* pressureless
Operating pressure 0,4 to 2,2 bar abs. 0,2 bis 3,2 bar abs.
Gas temperature -30 to +100°C valid for dry gases
Protection class IP 55 - DIN 40050
Ambient temperature -20 to +40°C installation altitude < 1000m NN
Storage temperature -20 to +60°C
Connection thread sample gas G 1/4“ i
Gas tightness of pump head < 6x10 -3 mbar l/s
Performance 65 W
Power consumption 0,30 A 0,57 A 0,30 A 0,57 A
Cable inlet M20 x 1,5 clamping range 5,5 – 10mm
Electrical equipment standard EN 60204-1
Media wetted parts PTFE, PFA, FEP (+PVDF for type /R)
Weight 4,7 Kg
Options
05 P 1050
Mounting bracket with 4 anti-vibration pads for bellows pump MP-F
05 P 1060 Extra charge for upper pump head of bellows pump MP-F out of stainless steel
05 P 1070 Extra charge for upper pump head of bellows pump MP-F../R out of stainless steel
with needle valve out of PVDF
Material abbreviations according to ISO 1629 and 1043.1
