11.1 AMBIENT CONDITIONS
During operation the following ambient conditions must be complied with:
• Ambient temperature range during operation: -20 °C to +40 °C.
• The pumps have to be protected against water and dust influence.
• During operation a sufficient cooling air supply must be provided.
11.2 PUMP MOUNTING
Mounting dimensions are shown in Figure 3. For sufficient ventilation the pump has to be mounted
with a distance of min. 25mm to the wall.

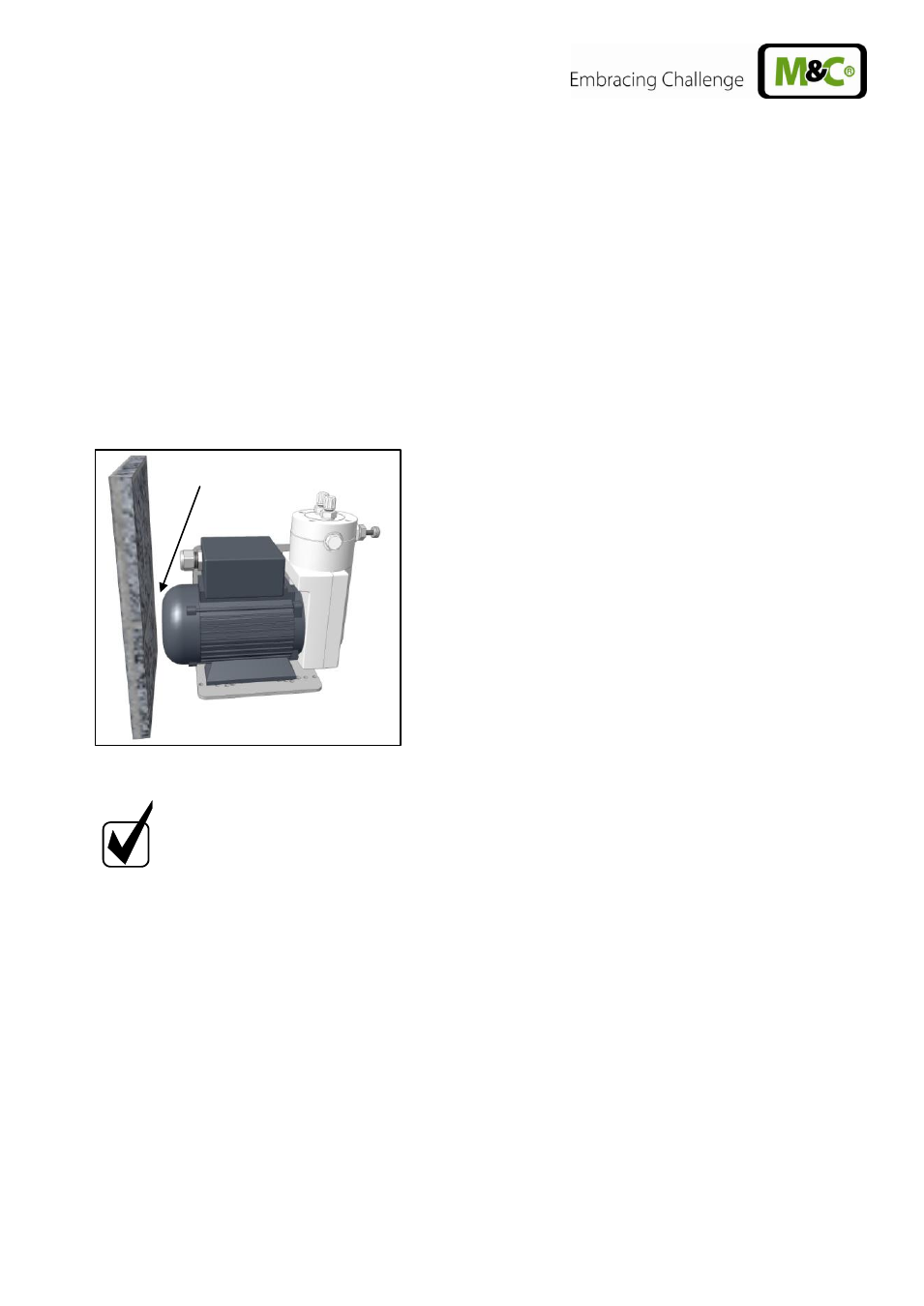

Figure 4 Mounting of MP-F..
N O T E !
In order to increase the service life mount pumps at the highest
point of the system and/or with pump head pointing downwards
to prevent collection of condensate in the pump head.
11.3 TURNING OF THE PUMP HEAD
By loosening the four flange screws the position of the pump head to the motor base can be changed
in 90° steps. For this operation proceed as follows:
• Loosen three lid screws.
• Remove lid.
• Now the four flange screws can be loosened (see Fehler! Verweisquelle konnte nicht ge-
funden werden.) and the pump head can be turned.
min. distance 25mm
