10.1a-ME Gas sampling and gas conditioning technology 13
N O T E !
For the erection of power installations with nominal voltages up to 1000V
the requirements of VDE 0100 and relevant standards and regulations must
be complied with!
The current supply circuit of pump type MP-F... (230 V) has to be provided
with a motor circuit braker 0,3A corresponding to the rated current (over-
current protection).
The current supply circuit of pump type MP-F... (115 V) has to be provided
with a motor circuit braker 0,57A corresponding to the rated current (over-
current protection).
• Connect protective earth at pump motor.
• Built in a device into the electrical installation for isolation of the pump motor from mains supply
according to EN 60335-1.
• Install pumps so that touching live parts (e.g. electrical connection) is excluded.
• Unscrew lid of the connection box.
• Lead connection cable through cable gland (clamping range 5,5-10mm) and connect according
to Figure 6 or the drawing in the lid of the connection box.

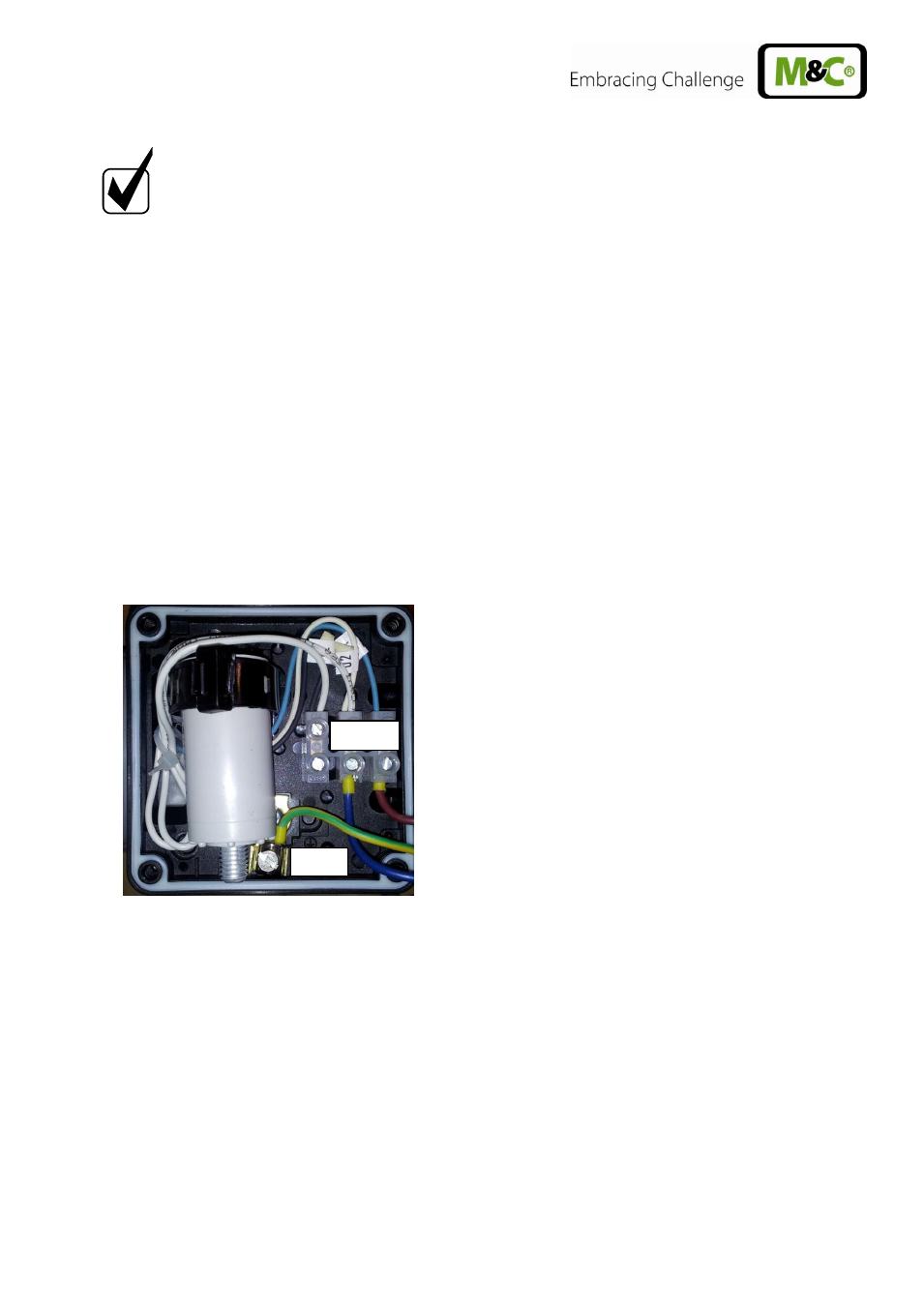

Figure 6 Electrical connection MP-F..
PE
N L
