9 DESCRIPTION

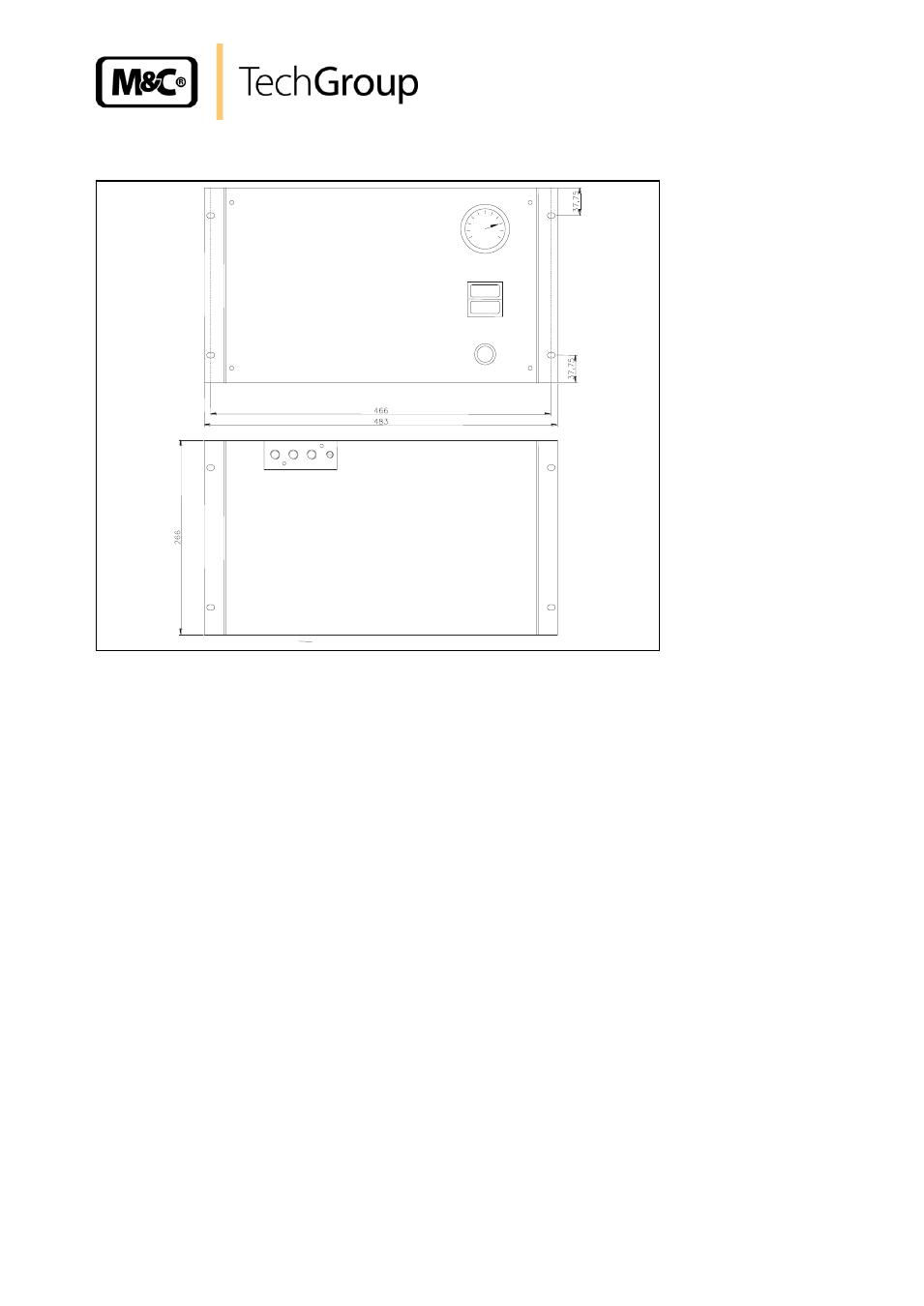

Figure 2 BA-C air conditioning unit
All controls and indicating elements are arranged easily accessible on the front panel of the
combustion air conditioning unit:
P1: Inlet pressure gauge P1
S1: Main switch S1
B1: Temperature controller with digital temperature display B1
The M&C air conditioning unit BA-C is a compact, easy to handle and maintain wall mounting device.
By rebuilding the mounting brackets the air conditioning unit is also applicable for 19“-rack mounting.
The gas connections at the back (G 1/4“i) can be used for the 19“-mounting and the gas connections
on the top can be used for wall mounting. The electrical connections take place via the fix connected
3m cable at the side of the housing.
The oven temperature is electronically controlled and preset at the factory to +932 °F at the
temperature controller B1 on the front panel.
Remaining the catalyst temperature by 50 °F or the minimum inlet pressure of 73 psi will switch of the
gas flow.
B1
P1
S1
