Introduction

Rear Panel Layout

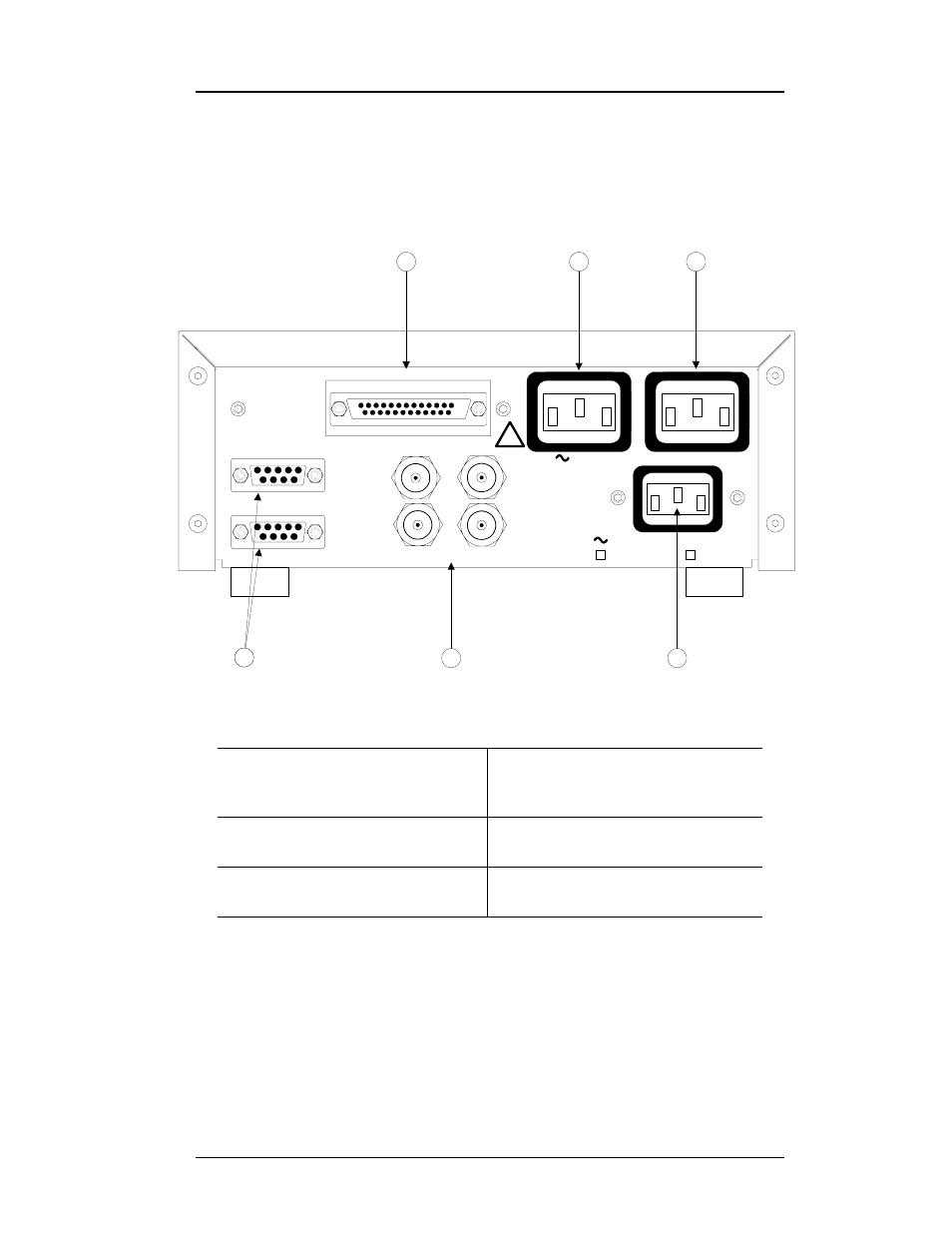

1.3 Rear Panel Layout

1 Optional Digital Communications

Port (RS-232 option illustrated;
RS-422 also available)

4 Auxiliary DB-9 Connectors

(see

Appendix for pinout)

2 Switched AC Output 1

(IEC-320 female connector)

5 Four BNC Coaxial Sensor Inputs

[denoted as A - D]

3 Switched AC Output 2

(IEC-320 female connector)

6 Power cord connector

(IEC-320 male)

LINE: 50-60 Hz, 4.2A MAX
100-120 V

200-240 V

!

C

D

B

A

SENSOR INPUTS

COMMUNICATIONS

LINE VOLTAGE, EACH 2A MAX

1

2

RS-232

J8

J5A

J5B

7

4

(OSC REQ'D)

(OSC REQ'D)

1

2

3

5

6
