Installing the Switch 3800
2-3

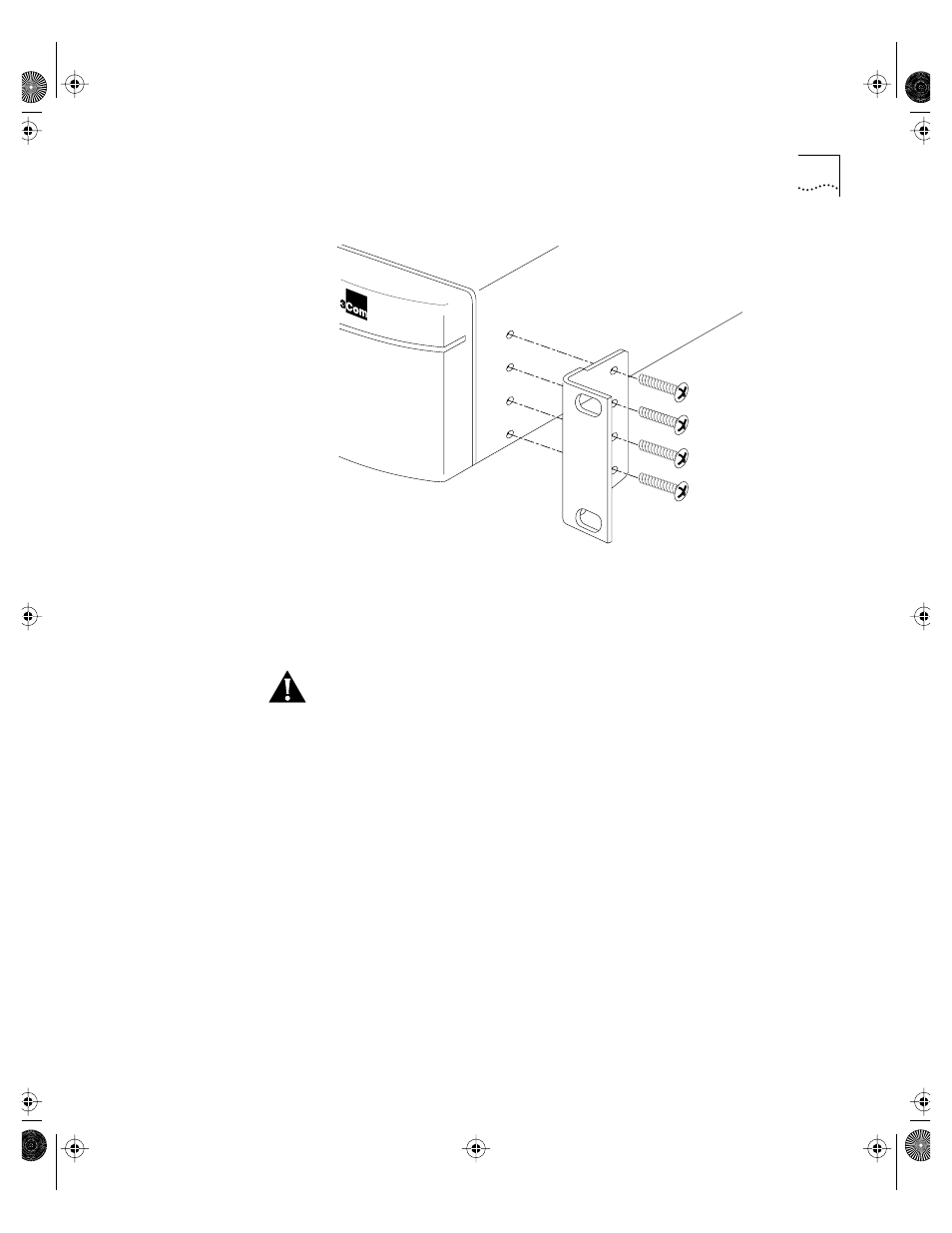

Figure 2-1 Fitting the mounting bracket
5 Repeat the three previous steps for the other side of the Switch.
6 Refer to the instructions that shipped with your rack, runners, shelf or
tray to complete the installation of the Switch into the mounting rack.
CAUTION: When using rack mounting runners, a shelf, or a tray, make
sure that the ventilation holes on the side of the Switch are not
obstructed.
7 Connect cables.
Free-Standing
The Switch 3800 is supplied with four self-adhesive rubber pads. Apply
the pads to the underside of the device by sticking a pad in the marked
area at each corner of the Switch.
