7-6 C HAPTER 7: S PANNING T REE P ROTOCOL (STP)
STP Configurations When you assign VLANs to an STPD, pay careful attention to the STP
configuration and its effect on the forwarding of VLAN traffic.
Figure 7-4 illustrates a network that uses VLAN tagging for trunk
connections. The following four VLANs have been defined:
■
Sales is defined on Switch A, Switch B, and Switch M.
■
Personnel is defined on Switch A, Switch B, and Switch M.
■
Manufacturing is defined on Switch Y, Switch Z, and Switch M.
■
Engineering is defined on Switch Y, Switch Z, and Switch M.
■
Marketing is defined on all Switches (Switch A, Switch B, Switch Y,
Switch Z, and Switch M).
Two STPDs are defined:
■
STPD1 contains VLANs Sales and Personnel.
■
STPD2 contains VLANs Manufacturing and Engineering.
The VLAN Marketing is not assigned to a STPD.

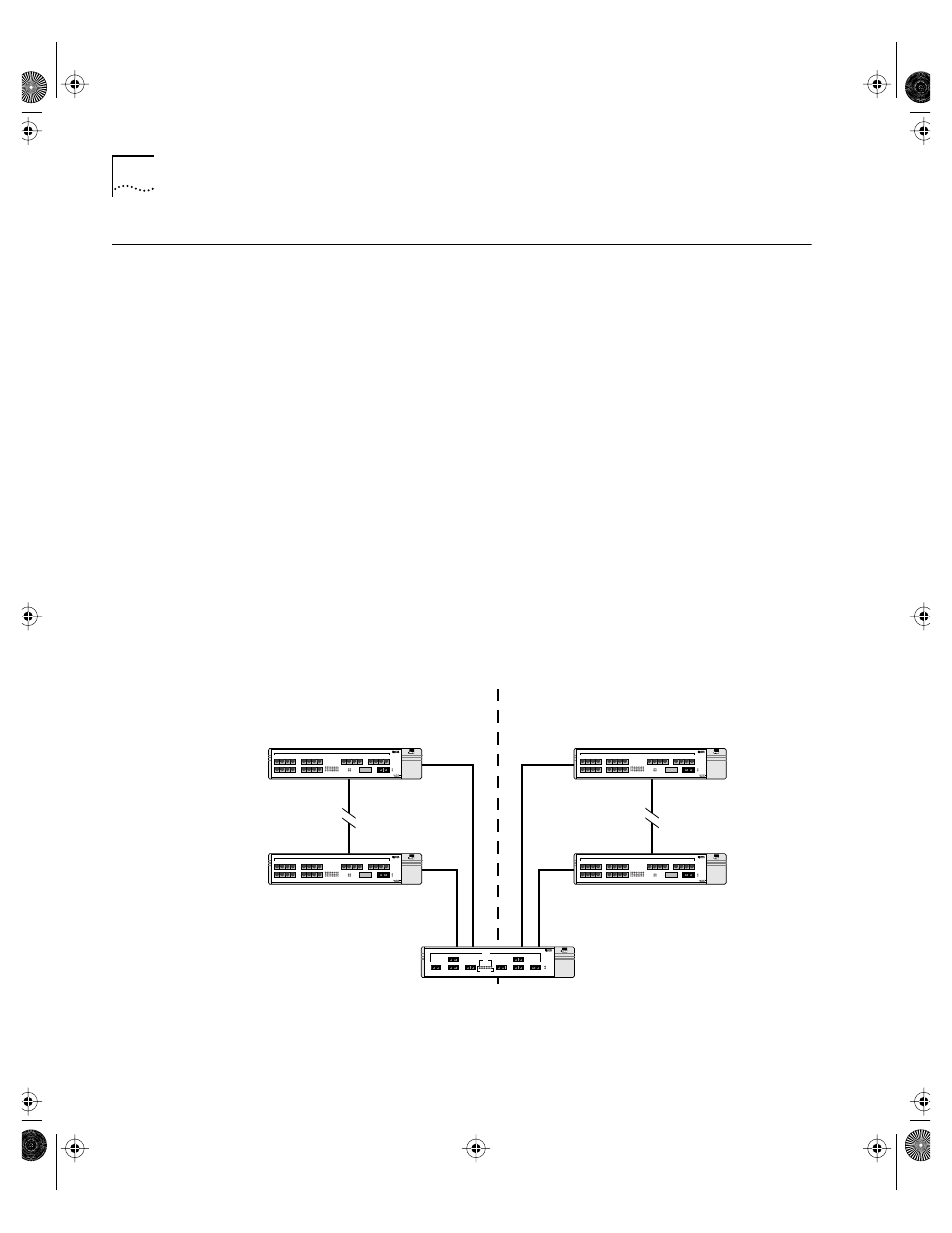

Figure 7-4 Multiple Spanning Tree Domains
Sales, Personnel, Marketing
STPD 1 STPD 2
Manufacturing, Engineering, Marketing
Sales, Personnel, Manufacturing, Engineering, Marketing
Switch A Switch Y
Switch Z
Switch M
Switch B
