Installation 21
3
Installation
This chapter outlines how to connect your Prestige to the LAN and
ISDN line. A diagram of the right panel and rear panel of the Prestige
are shown below. Please refer to this diagram to identify all of the ports
on your device when you attempt to make the various connections.

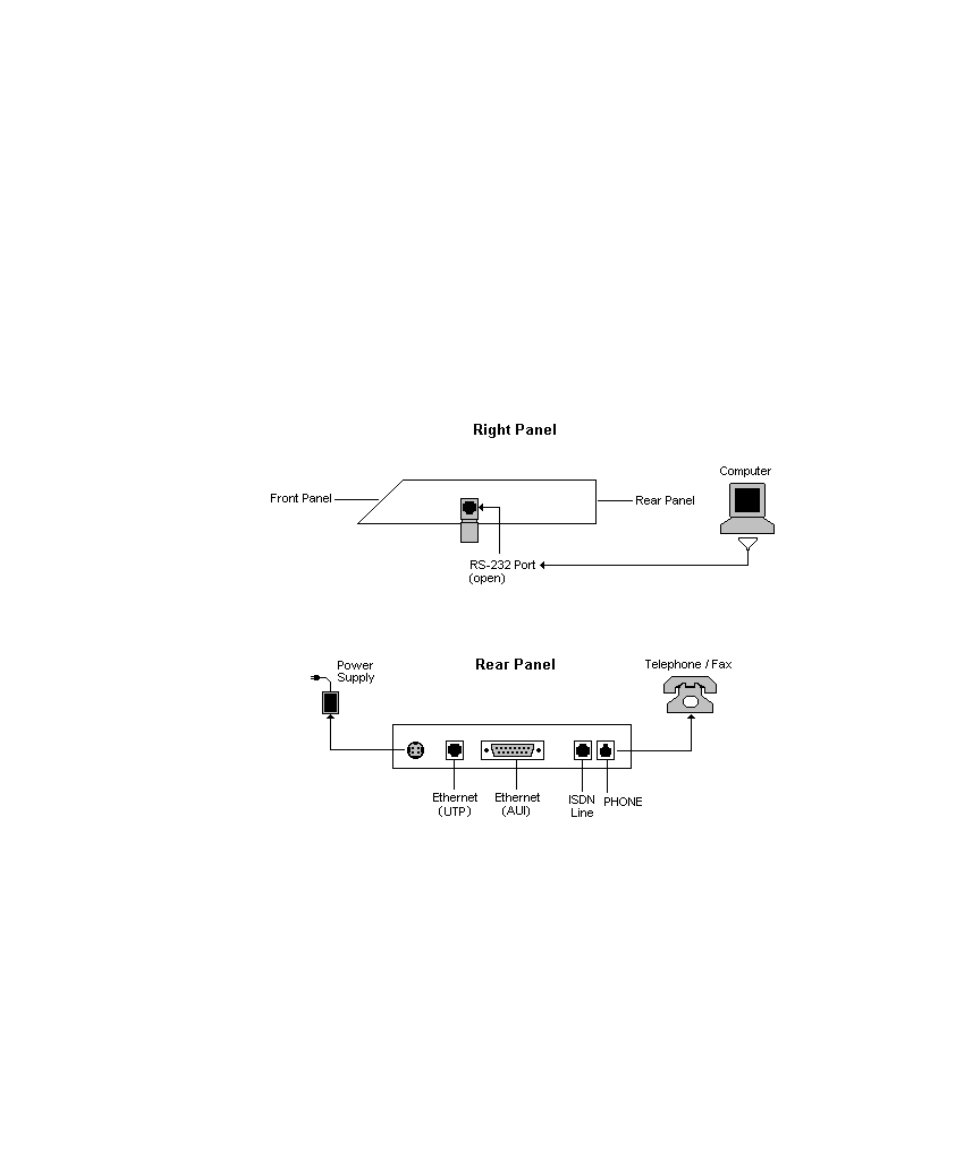

Figure 3-1 Rear Panel Diagram
