Page 90
ES-3124 User’s Guide
88
Chapter 8 VLAN

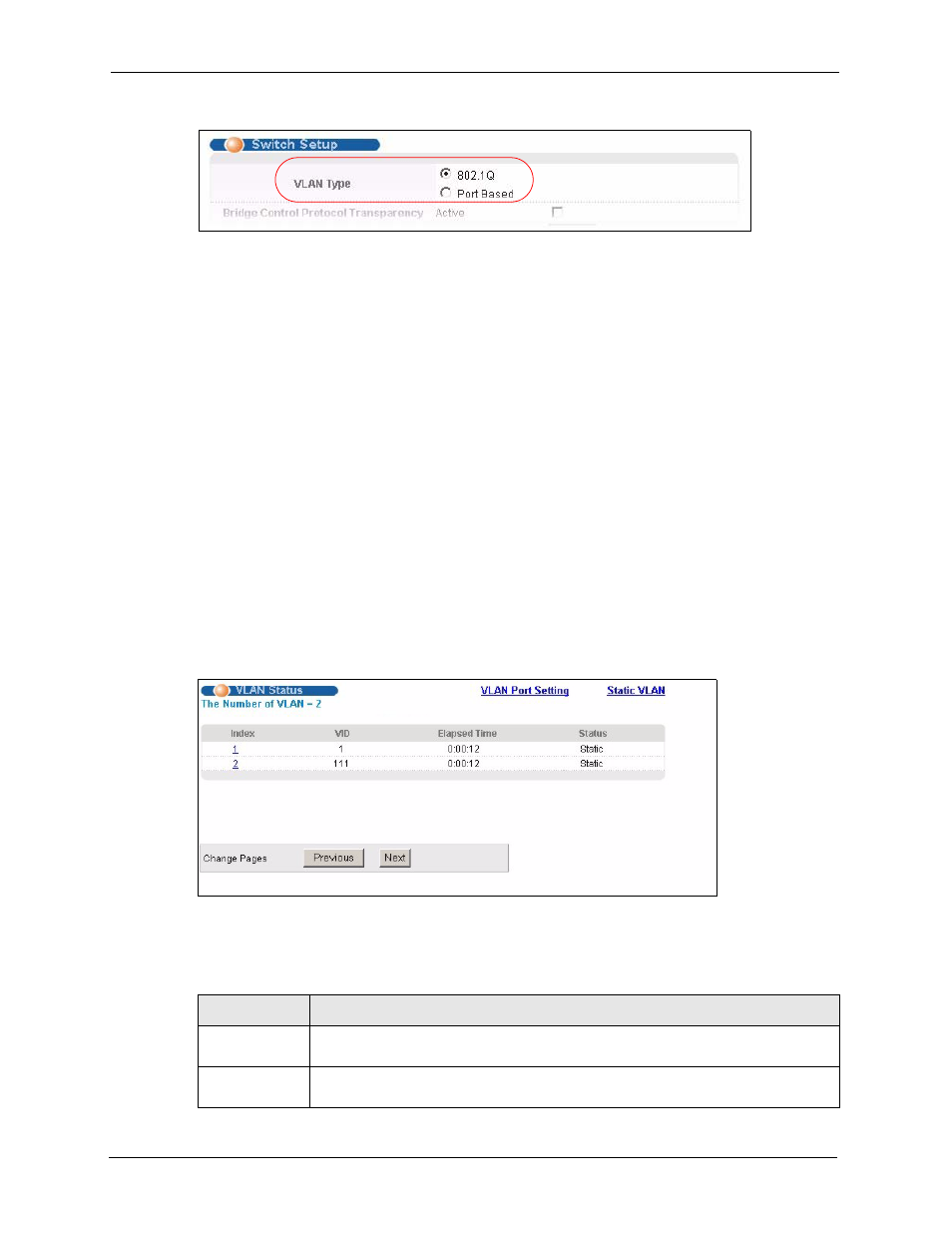

Figure 33 Switch Setup: Select VLAN Type
8.5 Static VLAN
Use a static VLAN to decide whether an incoming frame on a port should be
• sent to a VLAN group as normal depends on its VLAN tag.
• sent to a group whether it has a VLAN tag or not.
• blocked from a VLAN group regardless of its VLAN tag.
You can also tag all outgoing frames (that were previously untagged) from a port with the
specified VID.
8.5.1 Static VLAN Status
See
for more information on Static VLAN. Click Advanced
Application, VLAN from the navigation panel to display the VLAN Status screen as shown
next.
Figure 34 VLAN: VLAN Status
The following table describes the labels in this screen.
Table 14 VLAN: VLAN Status
LABEL
DESCRIPTION
The Number of
VLAN
This is the number of VLANs configured on the switch.
Index
This is the VLAN index number. Click on this to view port settings for the specified
VLAN.
