ES-3124 User’s Guide

Chapter 5 Initial Setup Example

H A P T E R

Initial Setup Example

This chapter shows how to set up the switch for an example network.

5.1 Overview

The following lists the configuration steps for the initial setup:

• Create a VLAN
• Set port VLAN ID
• Configure the switch IP management address

5.1.1 Creating a VLAN

VLANs confine broadcast frames to the VLAN group in which the port(s) belongs. You can
do this with port-based VLAN or tagged static VLAN with fixed port members.

In this example, you want to configure port 10 as a member of VLAN 2.

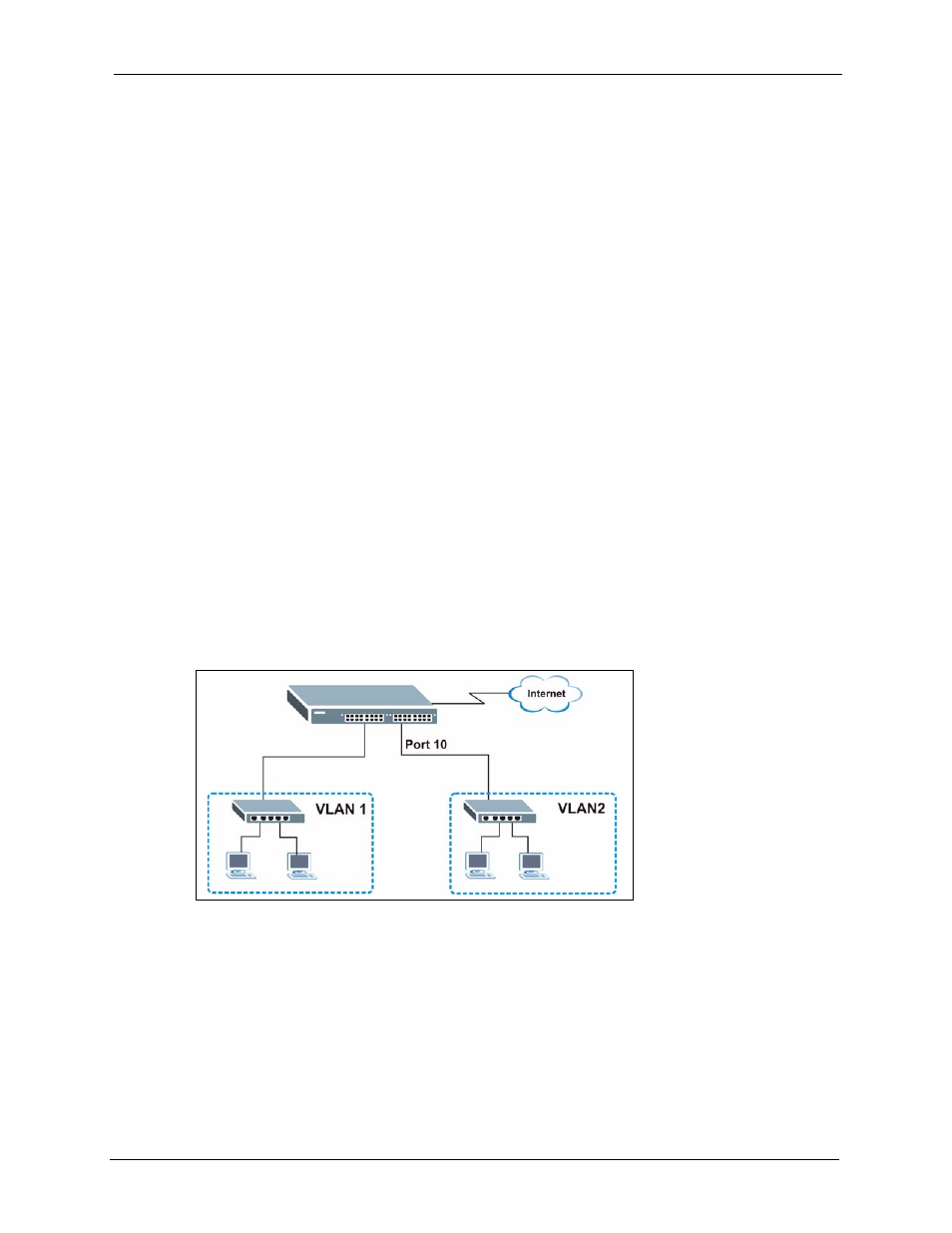

Figure 22 Initial Setup Network Example: VLAN
