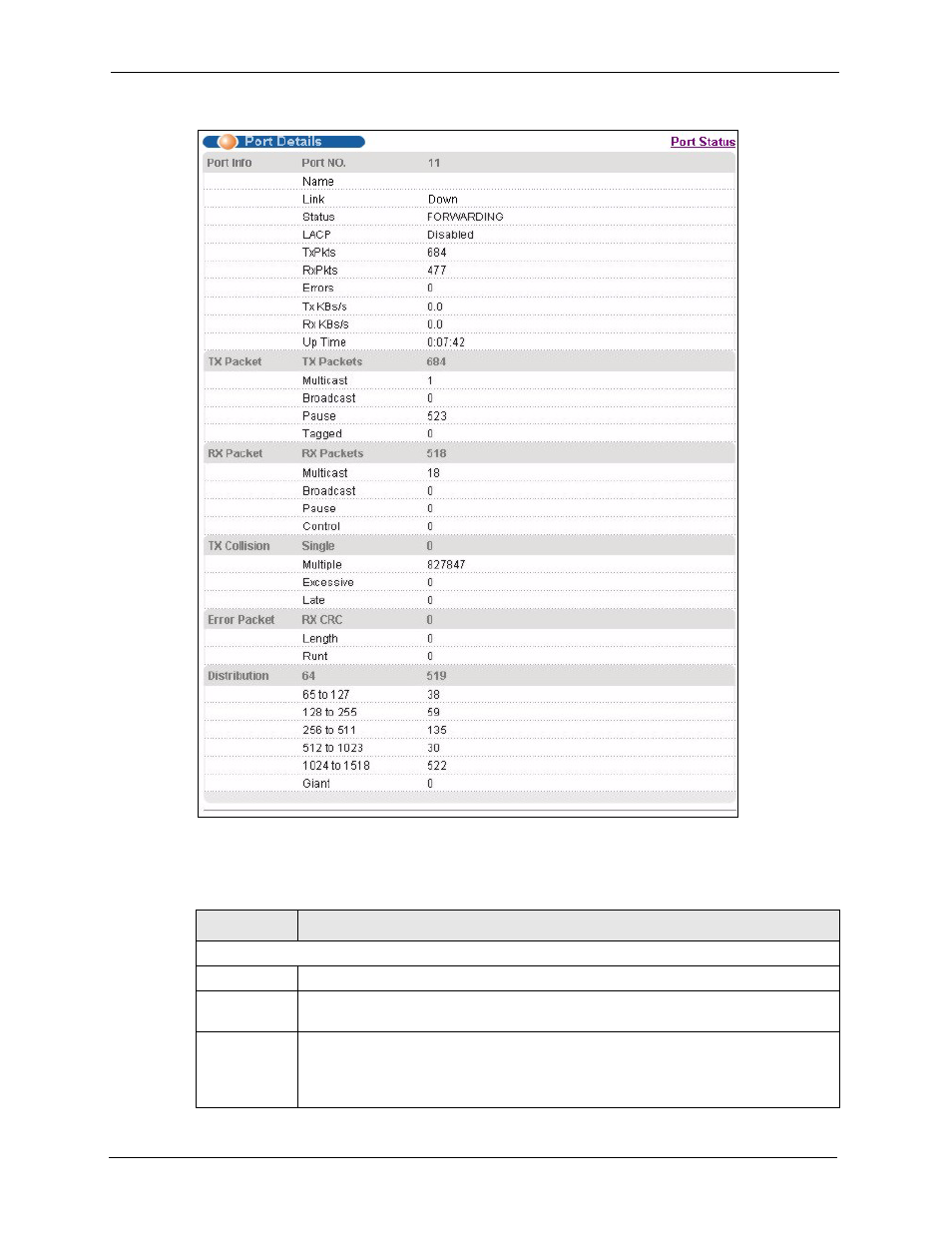

Figure 26 Status: Port Details
The following table describes the labels in this screen.
Table 7 Status: Port Details
LABEL DESCRIPTION
Port Info
Name This field shows the name of the port.
Link This field shows whether the Ethernet connection is down, and the speed/duplex
mode. It also shows the cable type (Copper or Fiber) for the combo ports.
Status If STP (Spanning Tree Protocol) is enabled, this field displays the STP state of the port
(see Section 11.1.3 on page 108 for more information).
If STP is disabled, this field displays FORWARDING if the link is up, otherwise, it
displays STOP.
