Chapter 11 Spanning Tree Protocol 113
11.4 Rapid Spanning Tree Protocol Status
Click Advanced Application, Spanning Tree Protocol in the navigation panel to display the
status screen as shown next. See
Section 11.1 on page 107 for more information on RSTP.
Note: This screen is only available after you activate RSTP on the switch.

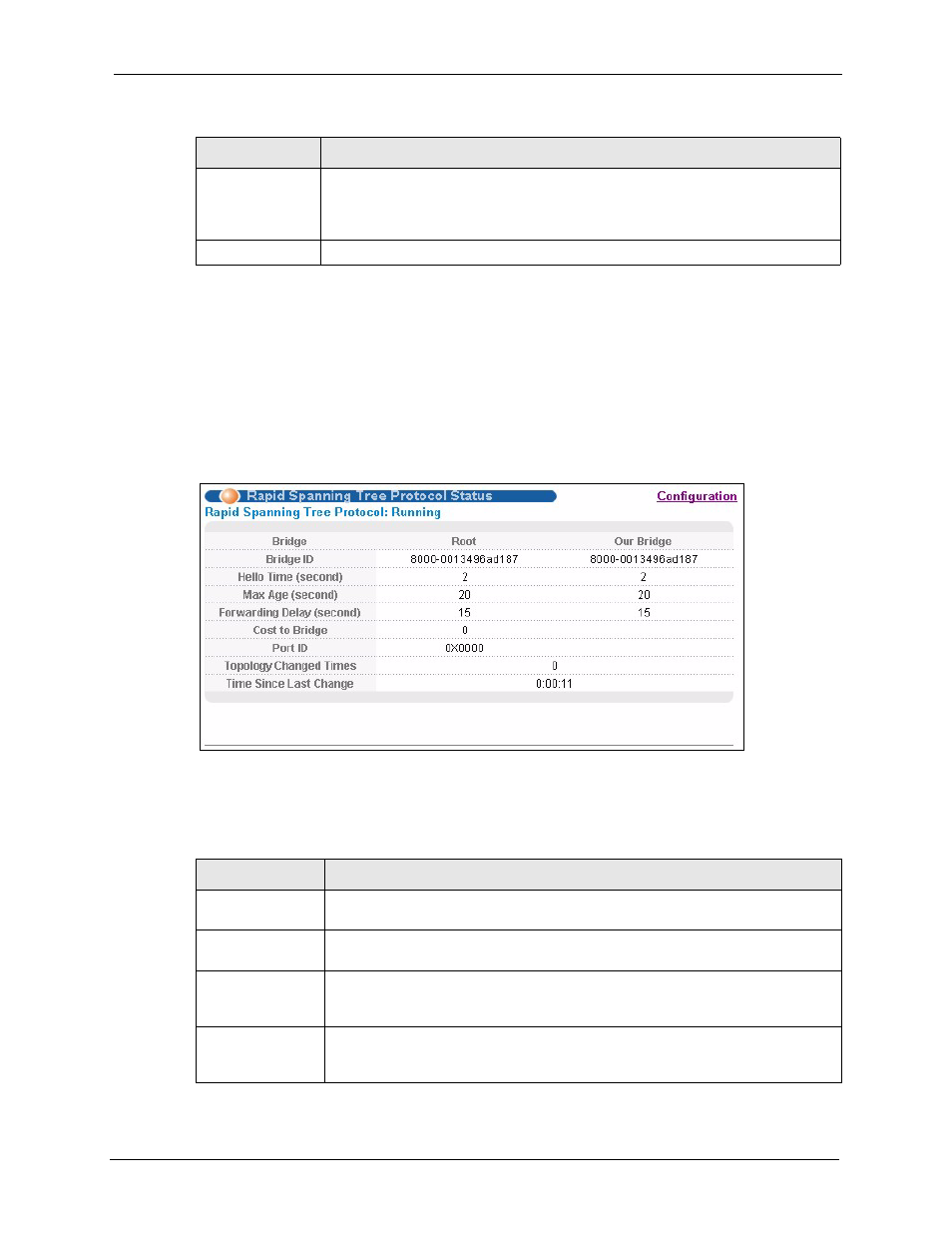

Figure 48 Rapid Spanning Tree Protocol: Status
The following table describes the labels in this screen.
Apply Click Apply to save your changes to the switch’s run-time memory. The switch
loses these changes if it is turned off or loses power, so use the Save link on the
top navigation panel to save your changes to the non-volatile memory when you
are done configuring.
Cancel Click Cancel to reset the fields.
Table 25 RSTP: Configuration (continued)
LABEL DESCRIPTION
Table 26 Rapid Spanning Tree Protocol: Status
LABEL DESCRIPTION
Configuration Click Configuration to configure RSTP settings. Refer to Section 11.3 on page
110 .
Bridge Root refers to the base of the spanning tree (the root bridge). Our Bridge is this
switch. This switch may also be the root bridge.
Bridge ID This is the unique identifier for this bridge, consisting of bridge priority plus MAC
address. This ID is the same for Root and Our Bridge if the switch is the root
switch.
Hello Time
(second)
This is the time interval (in seconds) at which the root switch transmits a
configuration message. The root bridge determines Hello Time, Max Age and
Forwarding Delay
