Panel Descriptions

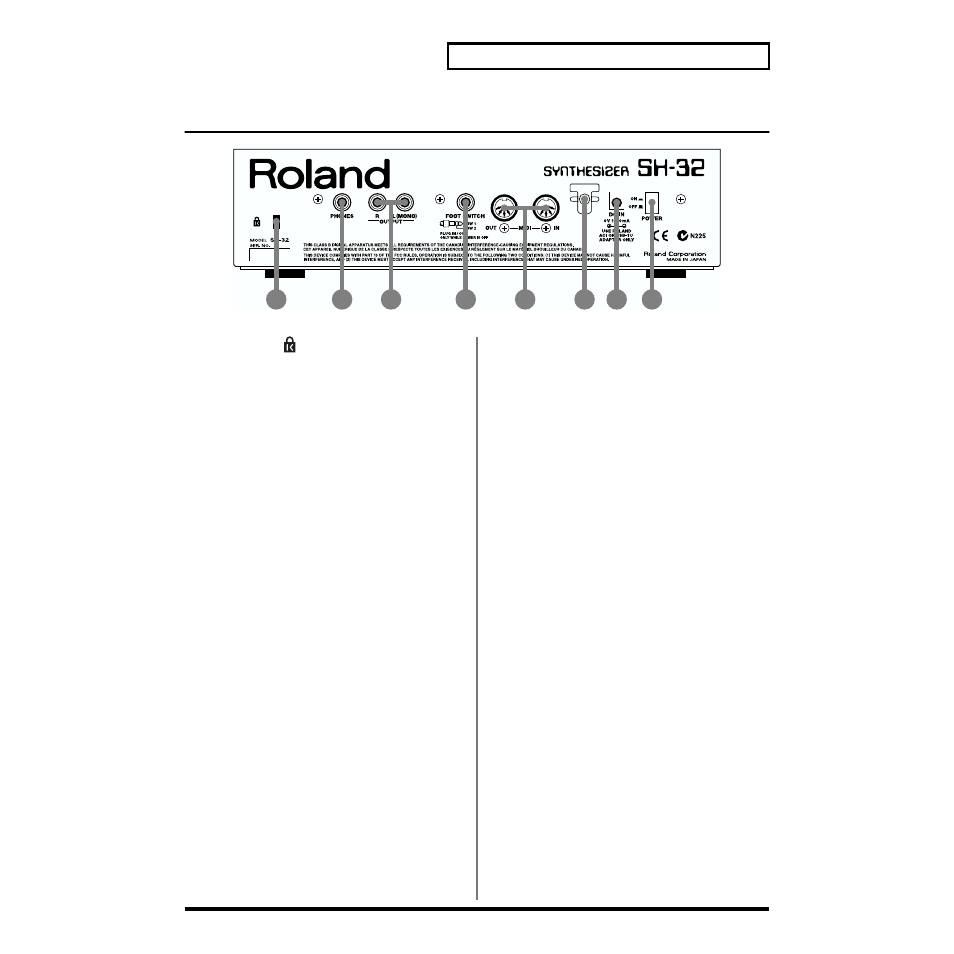

Rear Panel
fig.00-03
1. Security Slot ( )
http://www.kensington.com/
2. PHONES Jack
This is the jack for connecting headphones (sold separately). → (p.
16)
3. OUTPUT Jacks (L (MONO), R)
These jacks output the audio signal to the connected mixer/amplifier
system in stereo. For mono output, use the L jack.
→ (p. 16)
4. FOOT SWITCH Jack
You can connect optional foot switch (BOSS FS-5U) or pedal switch
(DP-2) to this jack, you can use it to select or modify sound or
perform various other control.
→ (p. 16, p. 91)
5. MIDI Connectors (IN, OUT)
These connectors can be connected to other MIDI devices to receive
and transmit MIDI messages.
→ (p. 16, p. 84, p. 92)
6. Cord Hook
Anchor the supplied AC adaptor cord using the cord hook. → (p. 16)
7. DC IN Jack
Connect the supplied AC adaptor to this jack. → (p. 16)
8. POWER Switch
This turns the power on/off. → (p. 17)
