109

Effects List

Appendices

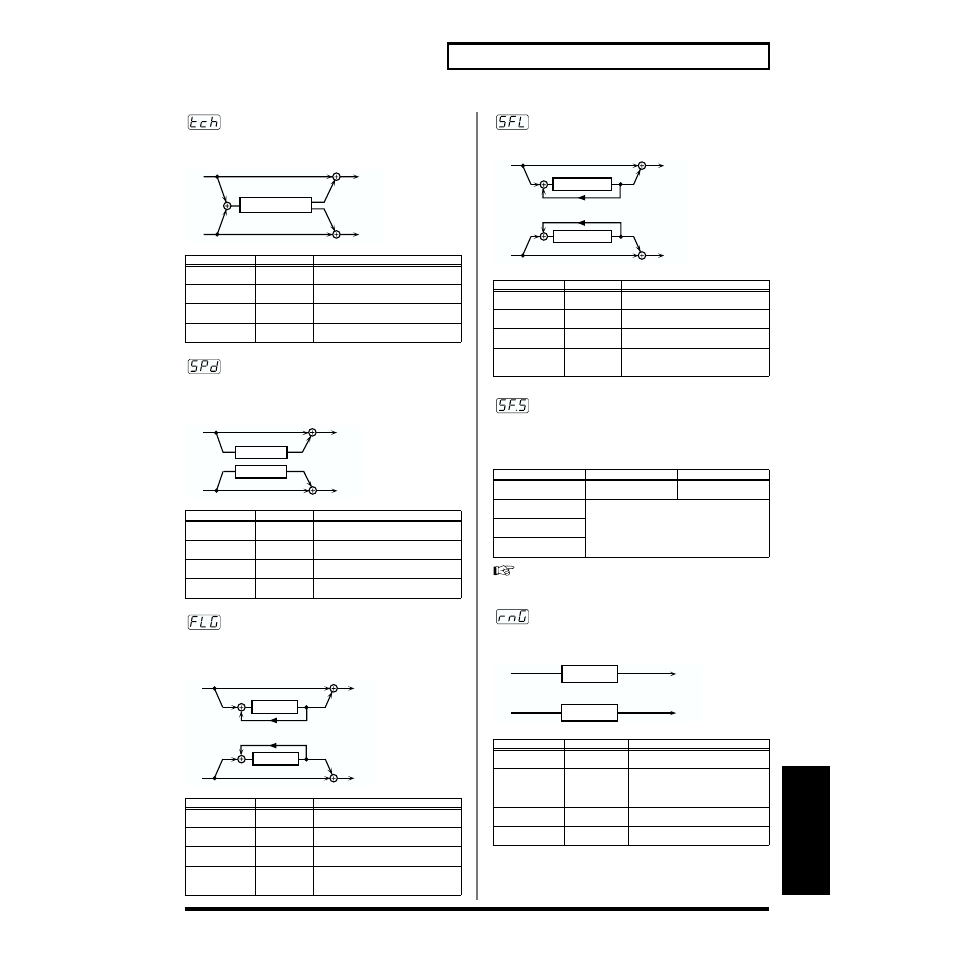

TREMOLO CHORUS

This is a chorus effect with added Tremolo (cyclic modulation of
volume).

fig.TremCho

SPACE-D

This is a multiple chorus that applies two-phase modulation in
stereo. It creates no audible modulation, yet produces a transparent
chorus effect.

fig.SpaceD

STEREO FLANGER

This is a stereo flanger. (The LFO has the same phase for left and
right.) It produces a metallic resonance that rises and falls somewhat
like a jet airplane taking off or landing.

fig.Flanger

STEP FLANGER

This is a flanger in which the flanger pitch changes in steps.

fig.StepFlanger

STEP FLANGER SYNC (Sync type)

Step Flanger synchronized to the BPM. Rate, set with INTENSITY,
changes according to the note length corresponding to the BPM
setting.

How to Set the BPM Sync Start Timing (p. 112)

RING MODULATOR

This is an effect that applies amplitude modulation (AM) to the input
signal, producing bell-like sounds.

fig.RingMod

Parameter

Value

Description

INTENSITY

(Tremolo Rate)

0.05–10.0 Hz

Modulation frequency of the tremolo
effect

COLOR

(Phase)

0–180 deg

Spread of the tremolo effect

RATE (DEPTH)

(Chorus Rate)

0.05–10.0 Hz

Modulation frequency of the chorus
effect

LEVEL

(Chorus Depth)

0–127

Modulation depth of the chorus effect

Parameter

Value

Description

INTENSITY

(Chorus Rate)

0.05–10.0 Hz

Frequency of modulation

COLOR

(Chorus Phase)

0–180 deg

Spatial spread of the sound

RATE (DEPTH)

(Chorus Depth)

0–127

Depth of modulation

LEVEL

(Balance)

0–100

Relative amount of chorus sound

Parameter

Value

Description

INTENSITY

(Rate)

0.05–10.0 Hz

Frequency of modulation

COLOR

(Phase)

0–180 deg

Spatial spread of the sound

RATE (DEPTH)

(Depth)

0–127

Depth of modulation

LEVEL

(Feed-

back)

-98– +98%

Adjusts the amount of the flanger
sound that’s fed back into the effect.

Negative (-) settings invert the phase.

Tremolo Chorus

L in

R in

L out

R out

L in

R in

Space D

Space D

L out

R out

R in

R out

L in

L out

Flanger

Feedback
Feedback

Flanger

Parameter

Value

Description

INTENSITY

(Step Rate)

0.05–10.0 Hz

Rate (period) of pitch change

COLOR

(Depth)

0–127

Depth of modulation

RATE (DEPTH)

(Rate)

0.05–10.0 Hz

Frequency of modulation

LEVEL

(Feedback)

-98– +98%

Adjusts the amount of the flanger
sound that’s fed back into the effect.

Negative (-) settings invert the phase.

Parameter

Value

Description

INTENSITY

(Step Rate)

note *1 (p. 112)

Rate (period) of pitch
change

COLOR

(Depth)

* Same as “STEP FLANGER”

RATE (DEPTH)

(Rate)

LEVEL

(Feedback)

Parameter

Value

Description

INTENSITY

(Frequency)

0–127

Adjusts the frequency at which mod-
ulation is applied.

COLOR

(Polarity)

[UP], [dWn]

Direction in which the change in fre-
quency moves

[UP]:

Towards higher frequencies

[dWn]:

Towards lower frequencies

RATE (DEPTH)

(Sens)

0–127

Adjusts the amount of frequency
modulation applied.

LEVEL

(Balance)

0–100

Relative amount of effect sound

R in

R out

L in

L out

Feedback
Feedback

Step Flanger

Step Flanger

L in

R in

L out

R out

Ring Mod

Ring Mod
