111

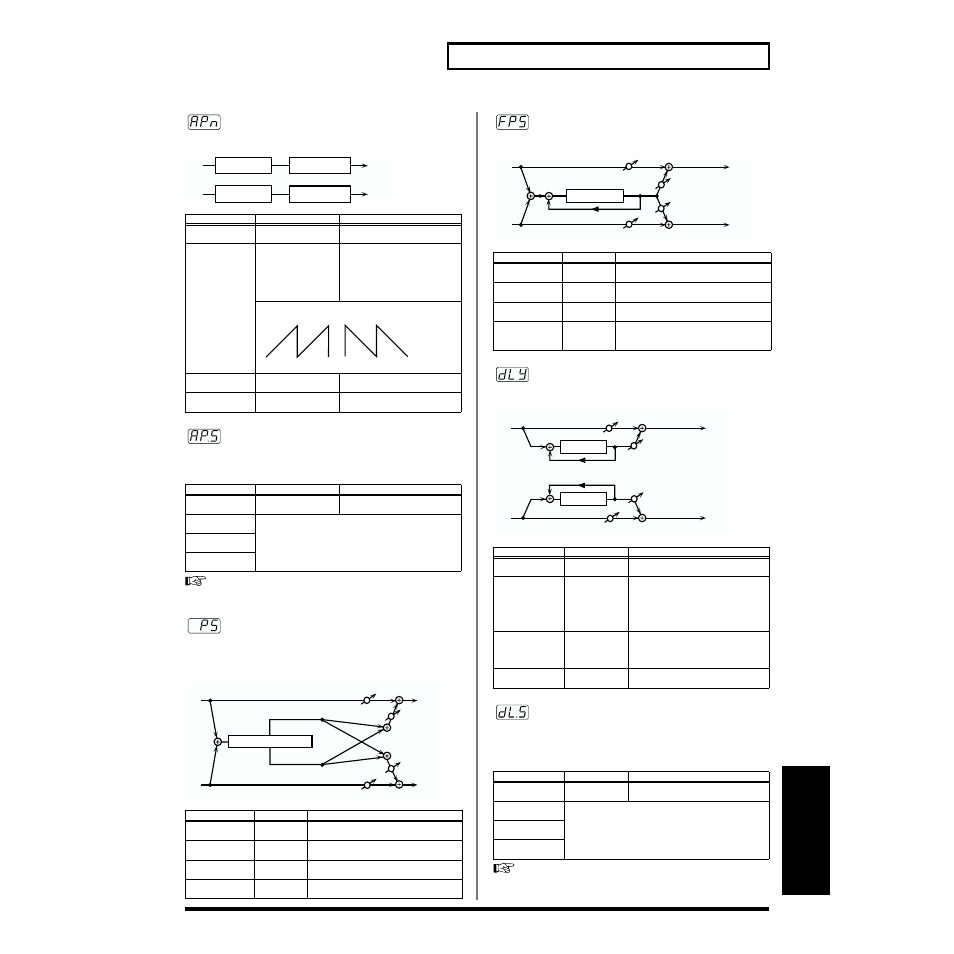

Effects List
Appendices
AUTO PAN
Cyclically modulates the stereo location of the sound.
fig.AutoPan
AUTO PAN SYNC (Sync type)
Auto Pan synchronized to the BPM. Rate, set with INTENSITY,
changes according to the note length corresponding to the BPM setting.
How to Set the BPM Sync Start Timing (p. 112)
2-VOICE PITCH SHIFTER
Shifts the pitch of the original sound. You can have two pitch-shifted
sounds played, one above and one below the original sound, and
change the difference between them.
fig.2VcPchShift
FEEDBACK PITCH SHIFTER
This allows the pitch-shifted sound to be fed back into the effect.
fig.FbkPchShift
STEREO DELAY
This is a stereo delay.
fig.StDELAY
STEREO DELAY SYNC (Sync type)
Stereo Delay synchronized to the BPM. Delay Time, set with
INTENSITY, changes according to the note length corresponding to
the BPM setting.
How to Set the BPM Sync Start Timing (p. 112)
Parameter Value Description
INTENSITY
(Rate)
0.05–10.0 Hz Frequency of the change
COLOR
(Wave Type)
[tri], [SqU], [Sin],
[SW1], [SW2] Selects the way the positioning
of the sound is changed.
[tri]: triangle wave
[SqU]: square wave
[Sin]: sine wave
[SW1/2]: sawtooth wave
RATE (DEPTH)
(Depth)
0–127 Depth to which the effect is ap-
plied
LEVEL
(EQ Gain)
-15– +15 +: High boost
-: Low boost
Parameter Value Description
INTENSITY
(Rate)
note *1 (p. 112) Frequency of the change
COLOR
(Wave Type)
* Same as “AUTO PAN”
RATE (DEPTH)
(Depth)
LEVEL
(EQ Gain)
Parameter Value Description
INTENSITY
(Pitch)
0–127 Amount of pitch shift
COLOR
(Pitch Mode)
[Fin], [Coa] Smoothness of the change in pitch
[Fin]: Continuous, [Coa]: Semitone steps
RATE (DEPTH)
(Pre Delay)
0–350 ms Adjusts the time until the pitch shifted
sound is heard.
LEVEL
(Balance)
0–100 Relative amount of pitch-shifted sound
L in
R in
L out
R out
Auto Pan
EQ
EQ
Auto Pan
SW1 SW2
L
R
L
R
L in
R in
L out
R out
2-Voice Pitch Shifter
Pitch Shift A
Balance W
Balance D
Balance W
Balance D
Pitch Shift B
Parameter Value Description
INTENSITY
(Pitch)
0–127 Amount of pitch shift
COLOR
(Pitch Mode)
[Fin], [Coa] Smoothness of the change in pitch
[Fin]: Continuous, [Coa]: Semitone steps
RATE (DEPTH)
(Pre Delay)
0–350 ms Adjusts the time until the pitch shifted
sound is heard.
LEVEL
(Feedback)
-98– +98% Adjusts the amount of the pitch-shifted
sound that’s fed back into the effect.
Negative (-) settings invert the phase.
Parameter Value Description
INTENSITY
(Delay Time)
0.0–240 ms Adjusts the time until the delay
sound is heard.
COLOR
(HF Damp)
200 Hz–8 kHz,
byP Adjusts the frequency above which
sound fed back to the effect is fil-
tered out.
If you don’t want to filter out any
high frequencies, set this parameter
to byP.
RATE (DEPTH)
(Feedback)
-98– +98% Adjusts the amount of the delay
sound that’s fed back into the effect.
Negative (-) settings invert the
phase.
LEVEL
(Balance)
0–100 Relative amount of delay sound
Parameter Value Description
INTENSITY
(Delay Time)
note *1
(p. 112) Adjusts the time until the delay
sound is heard.
COLOR
(HF Damp)
* Same as “STEREO DELAY”
RATE (DEPTH)
(Feedback)
LEVEL
(Balance)
L in
R in
L out
R out
Balance W
Balance W
Balance D
Balance D
Feedback
Pitch Shifter
R in R out
L in L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
Delay
Delay
