MAINTAINING THE PRINTER
3-16
Replacing the LCT Paper Feed Rollers
When the optional large capacity tray is installed, use the following procedure to
replace its two paper feed rollers.
1 Open the LCT cover.

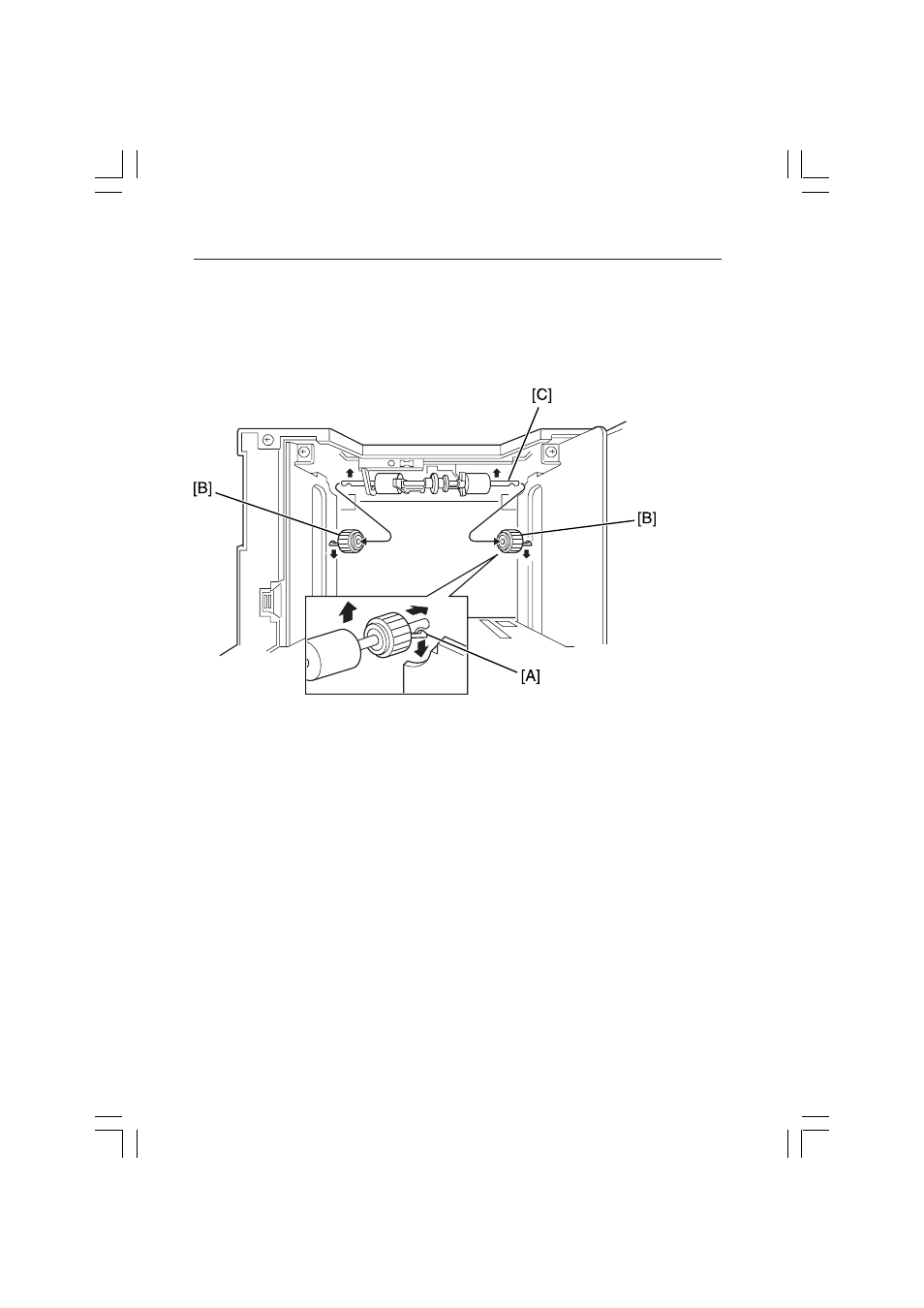

2 Unlock the hook [A] of the paper feed roller [B].
3 Lift up the paper feed roller shaft [C], then remove the paper feed rollers [B].
4 Insert new rollers into [C], and return the paper feed roller unit to its original
position.
