TROUBLESHOOTING
5-4
Figure 5-2 illustrates the areas inside the Front Cover where paper misfeeds can
occur.

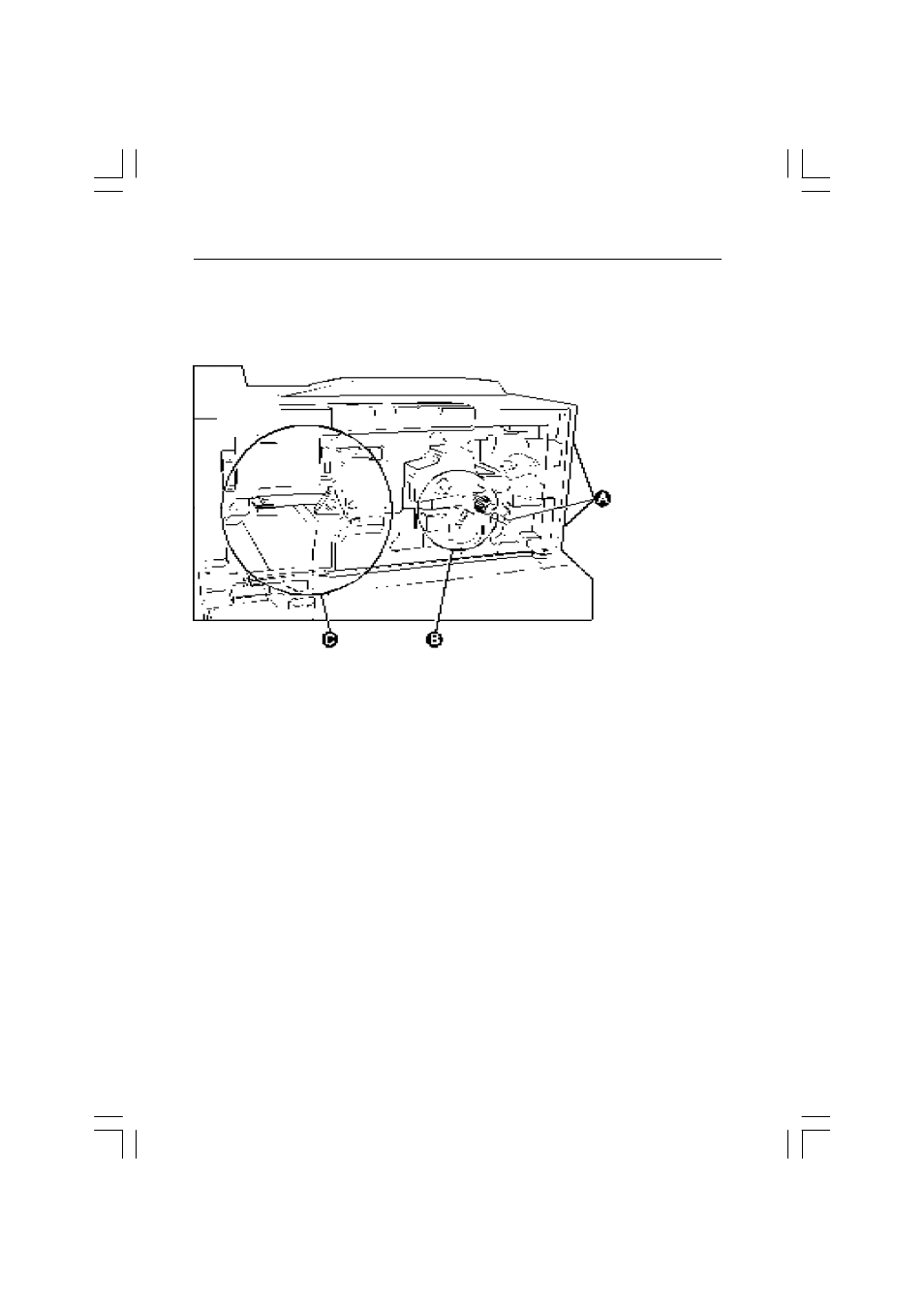

Figure 5-2. Front Cover paper misfeed areas
Whenever you clear a paper misfeed, carefully check for and remove any small,
torn, or folded paper fragments.
Note: Labels containing instructions on clearing paper misfeeds are
available at some paper misfeed locations.
R
Warning: Areas of the printer that marked with the
n
symbol may be
very hot and should not be touched.
