Replacing the fusing unit – Ricoh AFICIO MP01 User Manual
Page 69
MAINTAINING THE PRINTER
3-11
MAINT
AINING
THE PRINTER

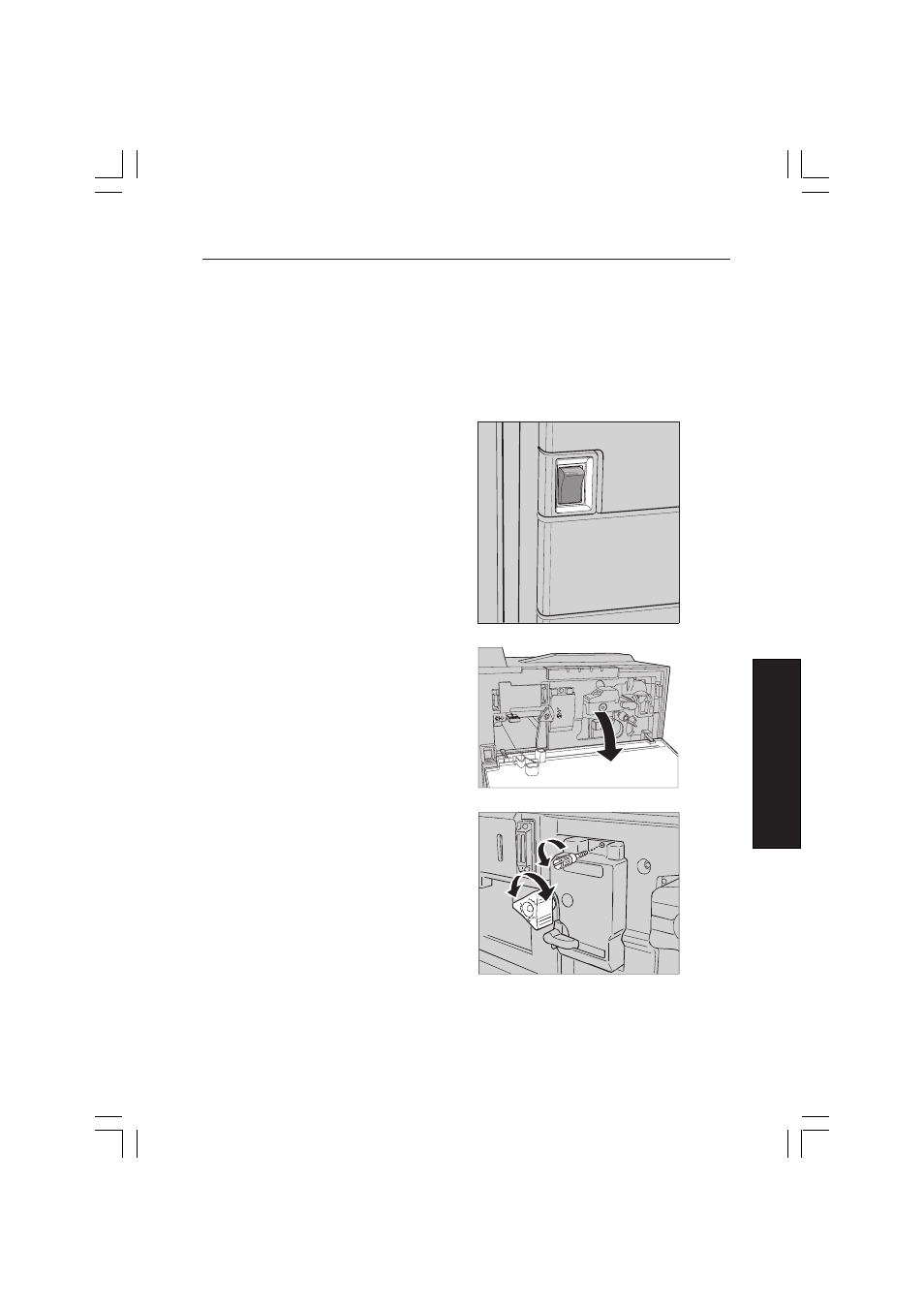

Replacing the Fusing Unit
Use the following procedure to replace the Fusing Unit.
R
Warning:
Wait until the Fusing Unit is completely cooled off before
attempting to handle it.
1
Turn off machine power and unplug
its power cord.
2
Open the Front Cover.
3
Rotate the blue triangular knob next
to the Fusing Unit so the flat side
of the knob is facing the unit. Use
a coin to remove the metal screw
at the top of the Fusing Unit.
