MAINTAINING THE PRINTER
3-9
MAINT
AINING
THE PRINTER

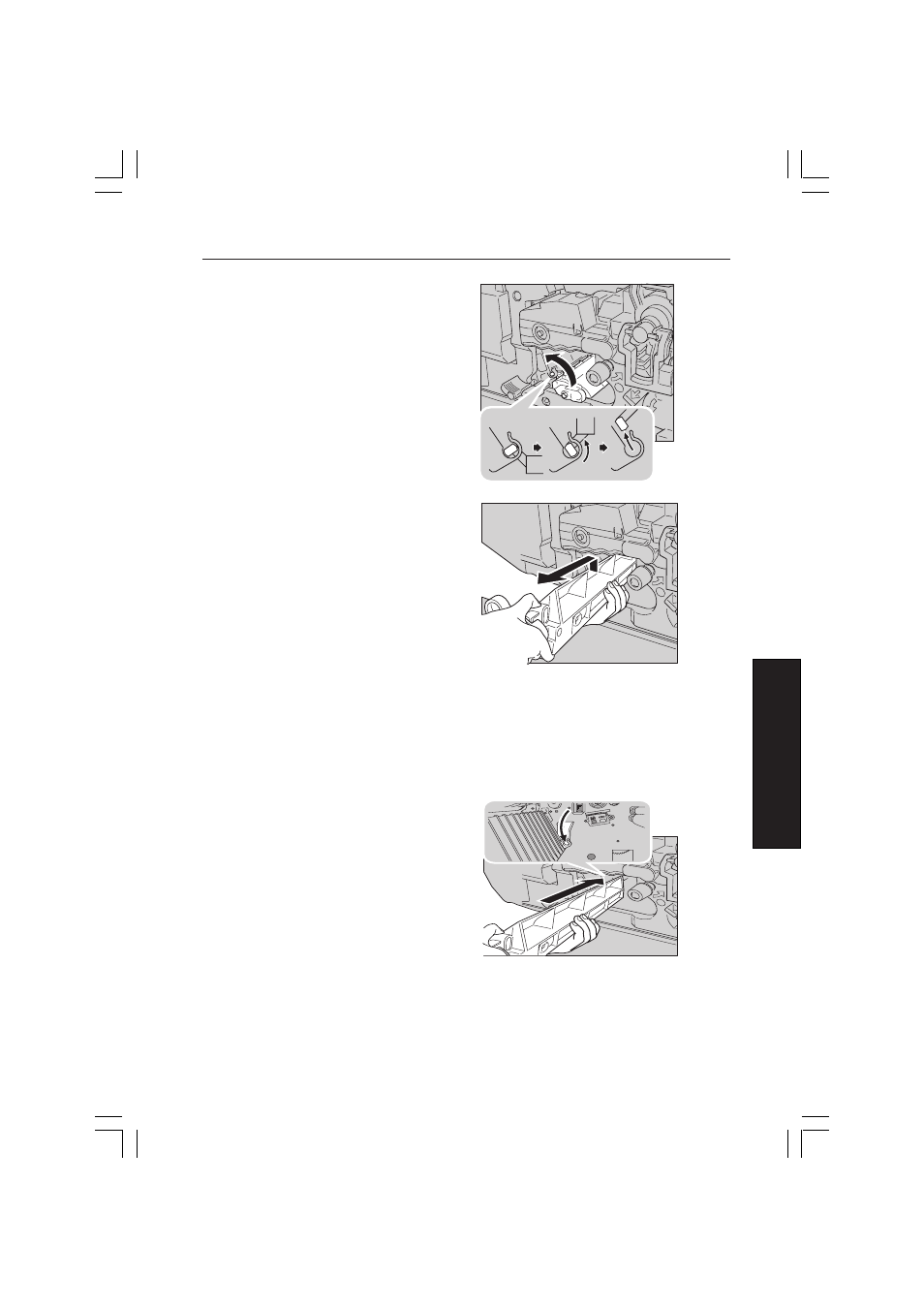

4 Swing the transfer roller unit up to
the left so its rectangular shaft is
positioned for removal as shown
in the illustration.
5 Lifting up on the transfer roller unit,
slide it carefully out of the machine.
6 Follow the recycling instructions on the package of the transfer roller unit to
dispose of the old one.
7 Remove the new transfer roller unit from its package.
8 Using both hands, slide the new
transfer roller unit into the machine.
Make sure that the rectangular
shafts on either end of the transfer
roller unit seat correctly into the
two bearings that support them.
