M306NKT-EPB User’s Manual 4. Hardware Specifications
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 88 of 104
4.5.2 External Dimensions of the M30800T-PTC

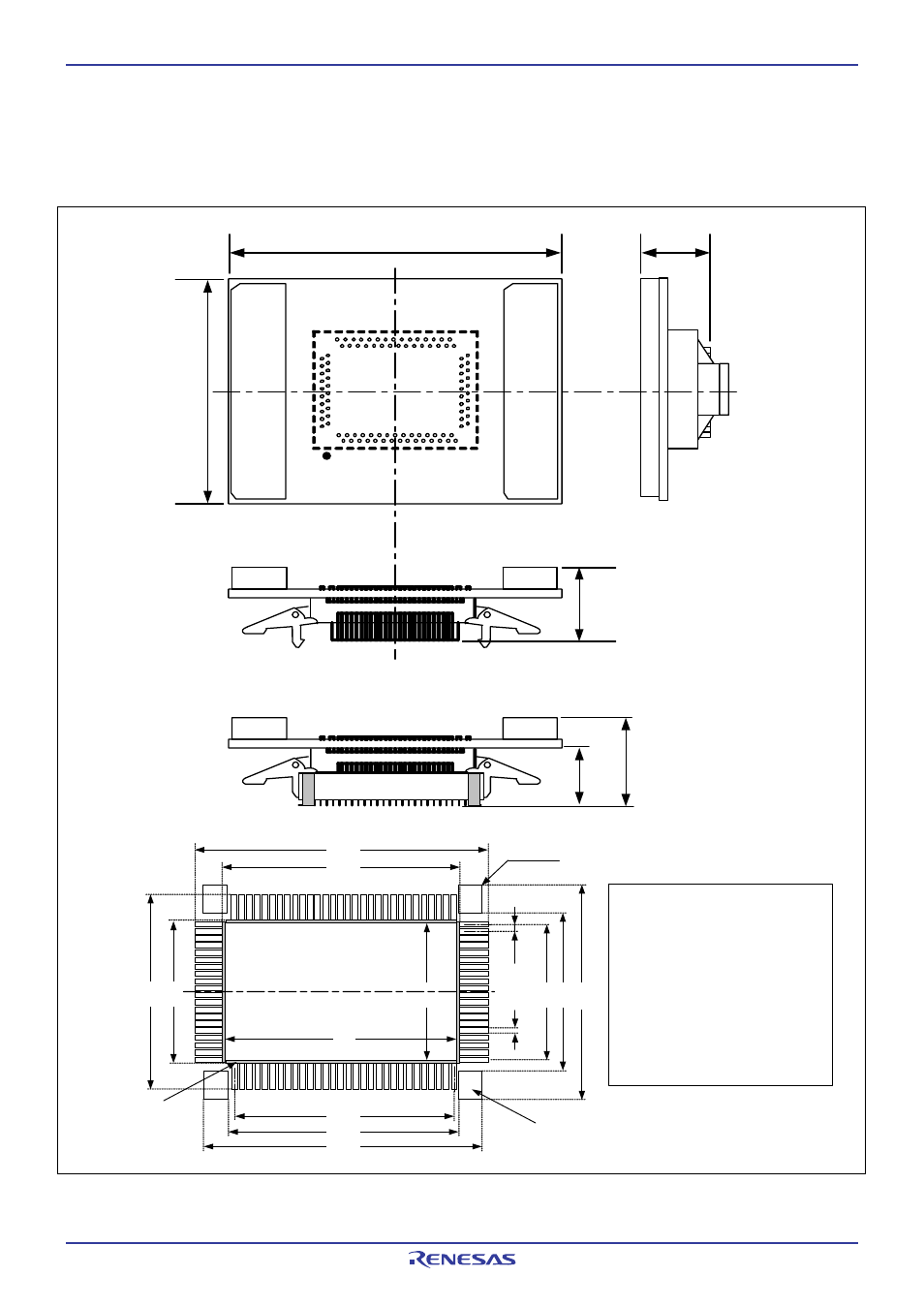

Figure 4.9 shows external dimensions of the converter board M30800T-PTC for a 100-pin LCC (included with the M306NKT-
EPB).
1 30
31
50
CN
2
CN
1
100
81
80 51
MADE I N JAPAN
55.0
40.0
13.5
13.5
M30800T-PTC
10.8
16.3
[External dimension when connecting 100-pin LCC socket]
Unit: mm
*1 When using the AXS4003M295C made
by Matsushita Electric Works, Ltd., and
IC61-1004-051 made by Yamaichi
Electronics Co., Ltd, be sure to create foot
patterns for the holding metal fixtures in
four locations.
*2 When using the AXS4003M295C made
by Matsushita Electric Works, Ltd., note
that the contacts of the IC socket proper
touch the PC board in the shaded section.
Therefore, be especially careful with
pattern wiring to ensure that other pins will
not be shorted. (Through holes are not
accepted.)
0.65
0.35 19.2
12.8
18.85
19.90
26.10
12.35 16.1 24.5
4-R0.25
Foot pattern for
holding metal fixture *1
Pattern wiring *2
13.8 21.4
27.6
19.9
Unit: mm
Figure 4.9 External dimensions of the M30800T-PTC
