(3) Using the Internal Oscillator Circuit Bare Board
To use the emulation probe at a frequency you like, build a desired oscillator circuit on the included OSC-2 oscillator circuit
bare board. Figure 2.20 shows an external view of the OSC-2 oscillator circuit bare board and where the connector pins are
located. Figure 2.21 shows the circuitry of the oscillator circuit bare board OSC-2. Use the number of oscillator circuits
recommended by the oscillator manufacturer.

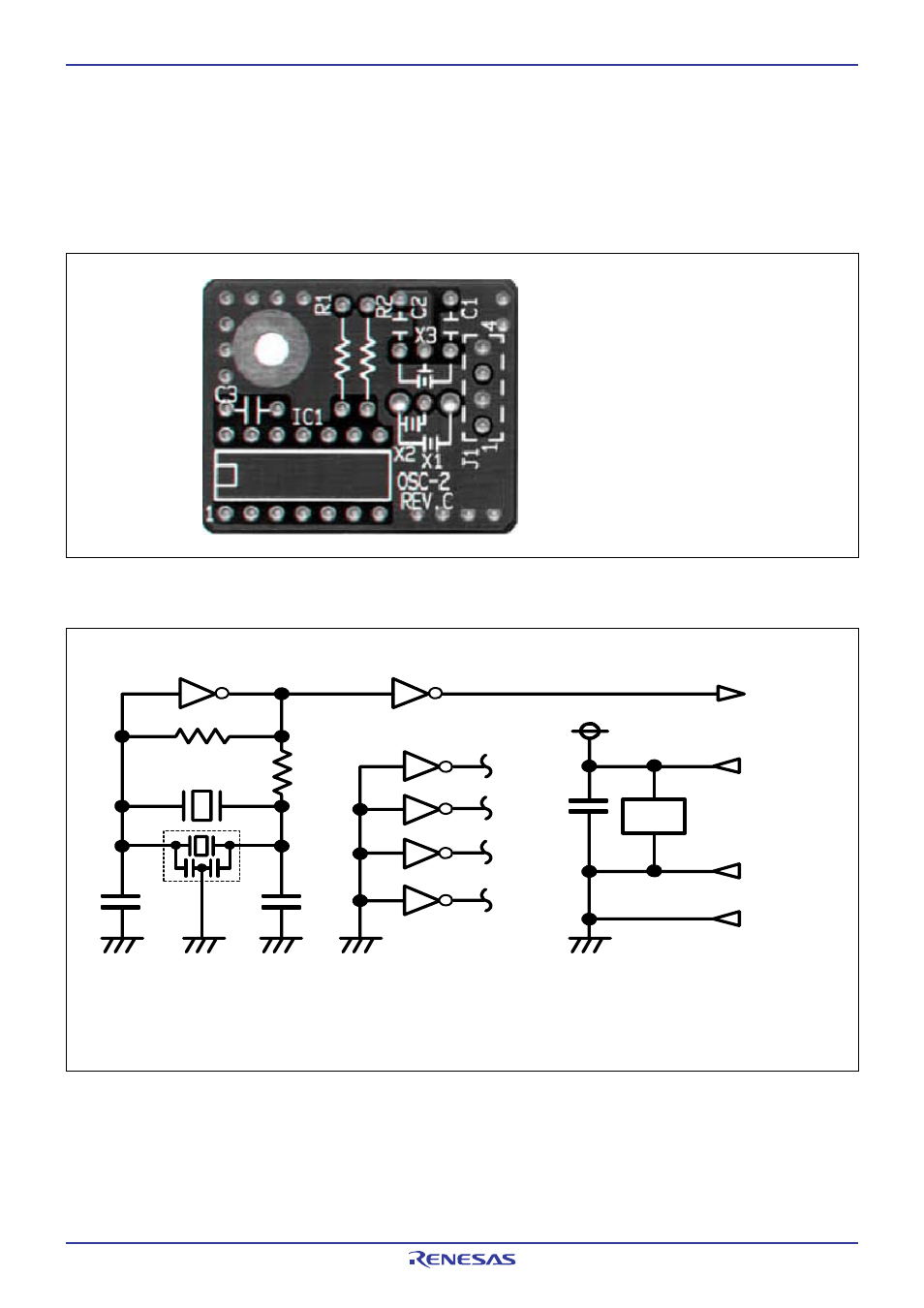

Figure 2.20 External view of the oscillator circuit board OSC-2 and its connector pin positions
IC1
R1
C2 C1
X1 ,X2
CLK
Vcc
GND
R2
J1-3
10 11 8 9
2 1
4 3
6 5
12 13
IC1:Inverter (Unbuffer)
X1:5.08mm pitch 2-pin oscillator
X2:2.54mm pitch 2-pin oscillator
X3:2.54mm pitch 3-pin oscillator
C3
IC1
J1-1
J1-2
J1-4
GND
IC1
* *
X3
*
*.
IC1
14
7
Figure 2.21 Circuits of the oscillator circuit bare board OSC-2
J1-4：GND
J1-3：Oscillator output
J1-2：GND
J1-1：VCC
