M306NKT-EPB User’s Manual 4. Hardware Specifications
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 76 of 104
(3) Timing Requirements
Table 4.4 and Figure 4.3 list the timing requirements in memory expansion mode and microprocessor mode.
Table 4.4 Timing requirements
Actual MCU
[ns]
This product
[ns] Symbol Item
Min. Max. Min. Max.
tsu(DB-RD) Data input setup time 40 55
tsu(RDY-BCLK) RDY# input setup time 30 45
tsu(HOLD-BCLK) HOLD# input setup time 40 55
th(RD-DB) Data input hold time 0 See left
th(BCLK-RDY) RDY# input hold time 0 See left
th(BCLK-HOLD) HOLD# input hold time 0 See left
td(BCLK-HLDA) HLDA# output delay time 40 See left

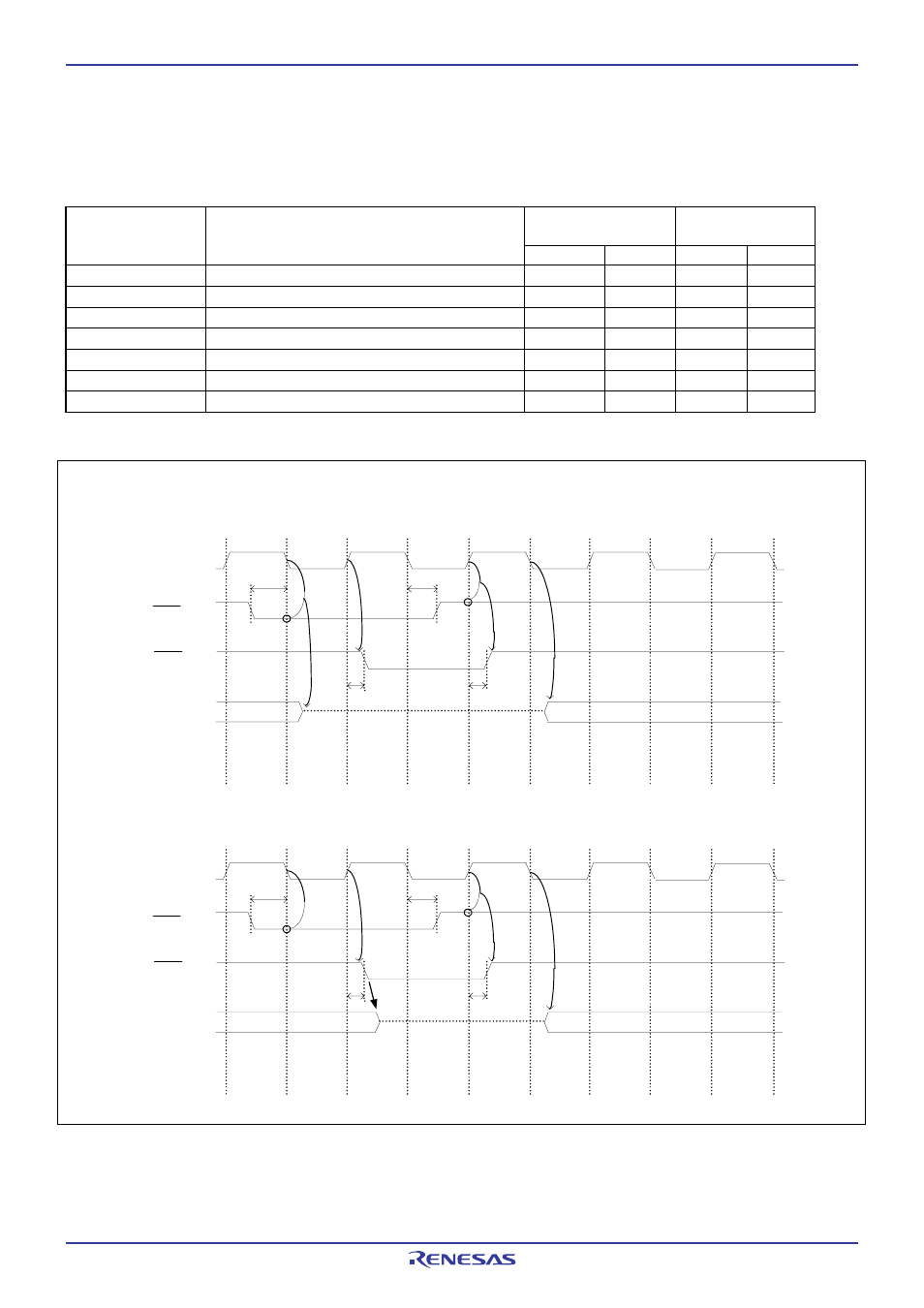

Figure 4.3 Timing requirements
* Compared with an actual MCU, this product enters high-impedance state after a 0.5 cycle delay.
Hi -Z
BCLK
HOLD input
HLDA output
P0,P1,P2,P3,P4,
P5 0 - P5 2
tsu(HOLD-BCLK)
td(BCLK-HLDA) td(BCLK-HLDA)
th(BCLK-HOLD)
Hi -Z
BCLK
HOLD
HLDA
P0,P1,P2,P3,P4,
P5 0 - P5 2
tsu(HOLD-BCLK)
td(BCLK-HLDA)
td(BCLK-HLDA)
th(BCLK-HOLD)
Common to “with wait” and “no wait” (actual MCU)
Common to “with wait” and “no wait” (this product)
input
output
