M306NKT-EPB User’s Manual 2. Setup
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 34 of 104
2.9.2 Connecting to a 100-pin 0.65mm Pitch Foot Pattern (Part 1)
Here following is a procedure of connecting to a 100-pin 0.65mm pitch foot pattern on the user system using the M3T-F160-
100NRB (not included). For details on the M3T-F160-100NRB (not included), refer to its user's manual.
(1) Attach the NQPACK100RB included with the M3T-F160-100NRB to the user system.
(2) Attach the YQPACK100RB included with the M3T-F160-100NRB to the NQPACK100RB and secure it with the YQ-
GUIDE's.
(3) Attach the CN2 side of the M3T-F160-100NRB to the J4 side of the M306NKT-EPB.
(4) Attach the M3T-F160-100NRB to the YQPACK100RB.
*
CN2 side
(3)
(1)
100-pin 0.65mm pitch
(PRQP0100JB-A) foot pattern
No. 1 pin
User system
M3T-F160-100NRB
(not included)
FLASH MCU, etc.
On-board evaluation
*: These four items are available in one package.
YQPACK100RB
NQPACK100RB
HQPACK100RB168
(not included)
(2)
(4)
YQ-GUIDE(×4個)
These corners are not round.
M3T-FLX160-EPB
M306NKT-EPB

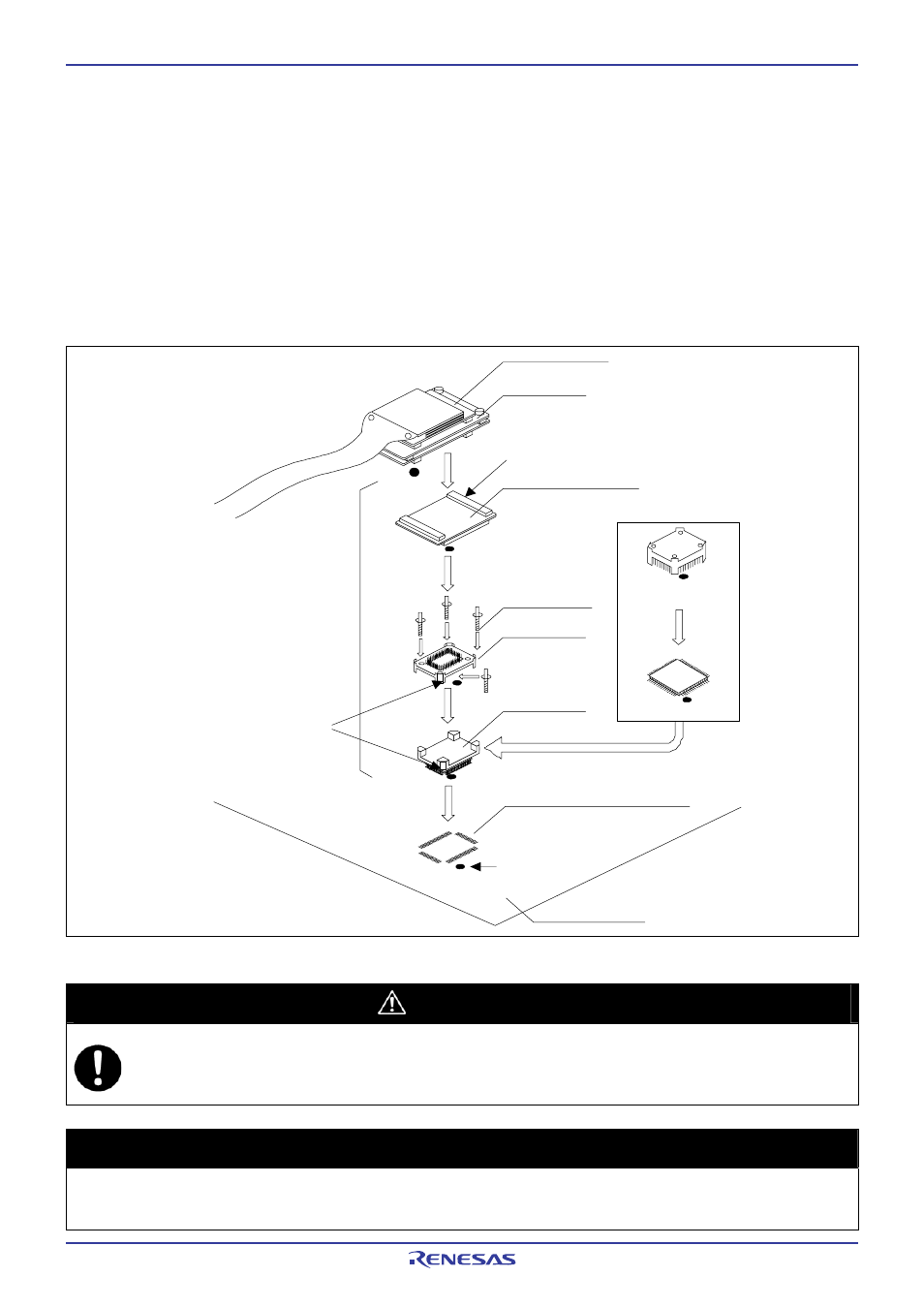

Figure 2.10 Connecting to a 100-pin 0.65mm pitch foot pattern (Part 1)
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
IMPORTANT
Note on Connectors of the Converter board:
z The connectors of the M3T-F160-100NRB are guaranteed for only 50 insertion/removal iterations.
