M306NKT-EPB User’s Manual 1. Outline
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 15 of 104
1.3 System Configuration
1.3.1 System Configuration

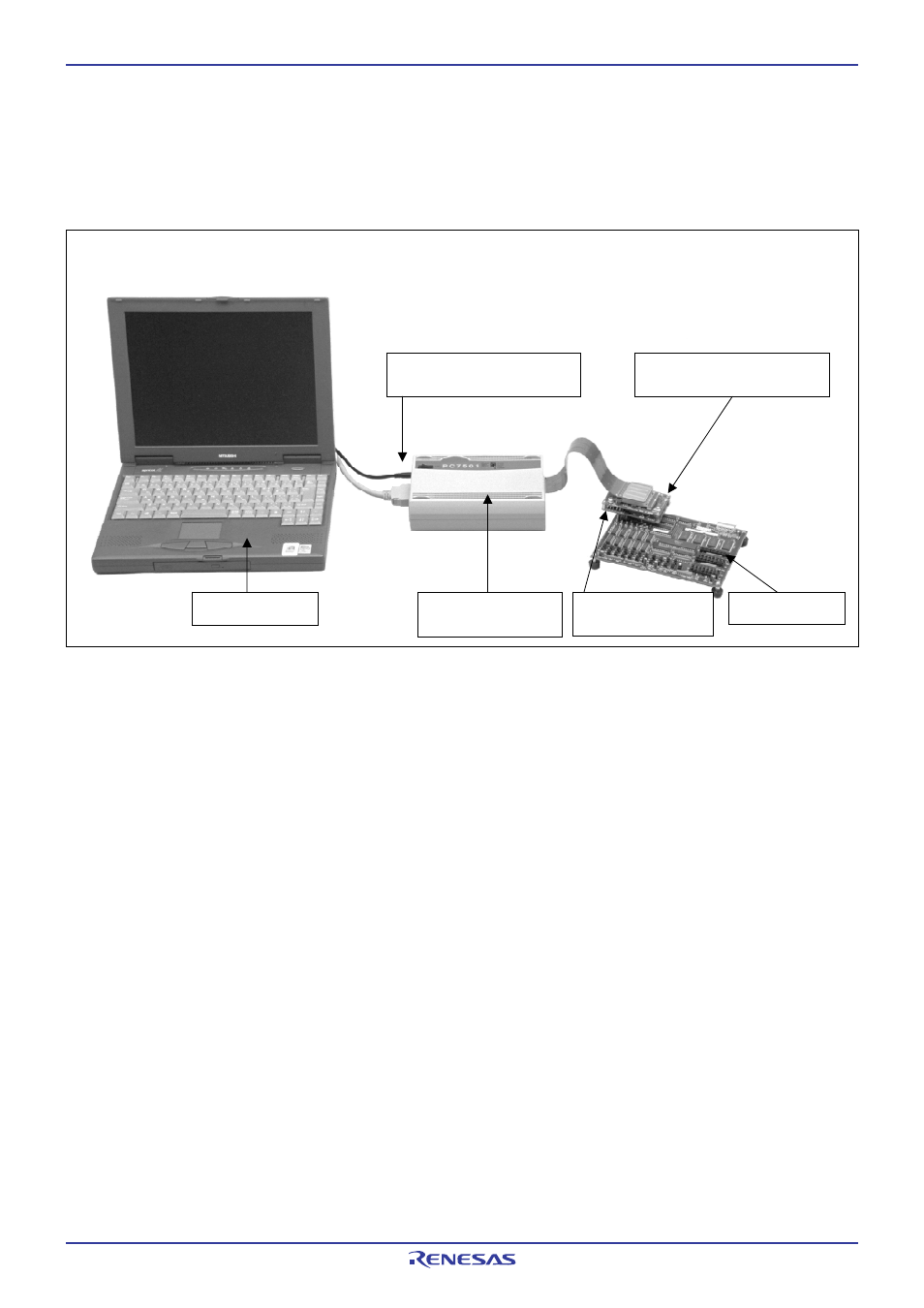

Figure 1.1 shows a configuration of the M306NKT-EPB system.
Figure 1.1 System configuration
(1) Emulation probe M306NKT-EPB (this product)
This is an emulation probe for the M16C/6N Group M16C/6N4, M16C/6N5, M16C/6NK, M16C/6NL, M16C/6NM,
M16C/6NN and contains an evaluation MCU.
(2) Pitch converter board M30800T-PTC (included)
This is a pitch converter board for connecting to 100-pin 0.65mm pitch LCC socket IC61-1004-051 on the user system. For
details, refer to "2.9 Connecting the User System" (page 31).
(3) Emulator main unit PC7501
The emulator main unit for the M16C Family to be used with this product.
(4) Host machine
A personal computer to control the emulator.
(5) User system
This is your application system.
This emulator cannot supply the power to the user system. Therefore design your system so that the user system is powered
separately.
(4) Host machine (3) Emulator
PC7501
Host machine interface
(LPT, USB or LAN)
(1) Emulation probe
M306NKT-EPB
(2) Converter board
M30800T–PTC
(5) User system
