2.9.7 Connecting to a 128-pin 0.5mm pitch Foot Pattern
Here following is a procedure of connecting to a 128-pin 0.5mm pitch foot pattern on the user system using the M3T-F160-
128NRD (not included). For details on the M3T-F160-128NRD (not included), refer to its user's manual.
(1) Attach the NQPACK128RD included with the M3T-F160-128NRD to the user system.
(2) Attach the YQPACK128RD included with the M3T-F160-128NRD to the NQPACK128RD and secure it with the YQ-
GUIDE's.
(3) Attach the CN2 side of the M3T-F160-128NRD to the J4 side of the M306NKT-EPB.
(4) Attach the M3T-F160-128NRD to the YQPACK128RD.
*
CN2 side
(3)
(1)
128-pin 0.5mm pitch
(PLQP0128KB-A) foot pattern
No. 1 pin
User system
M3T-F160-128NRD
(not included)
FLASH MCU, etc.
On-board evaluation
*: These four items are available in one package.
YQPACK128RD
NQPACK128RD
HQPACK128RD
(not included)
(2)
(4)
YQ-GUIDE(x4)
These corners are not round.
M3T-FLX160-EPB
M306NKT-EPB

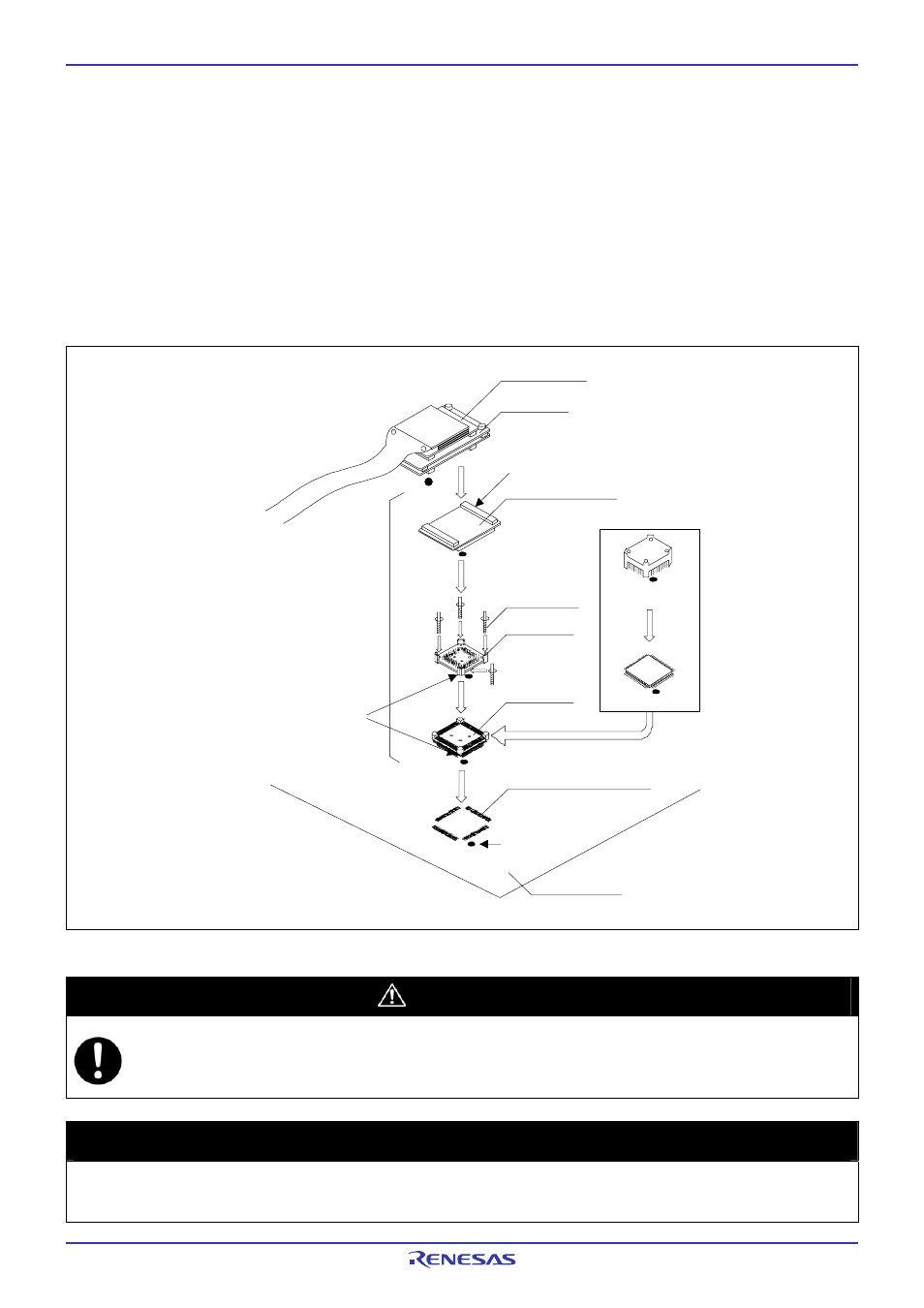

Figure 2.15 Connecting to a 128-pin 0.5mm pitch foot pattern
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
IMPORTANT
Note on Connectors of the Converter board:
z The connectors of the M3T-F160-128NRD are guaranteed for only 50 insertion/removal iterations.
