M306NKT-EPB User’s Manual 3. Usage (How to Use the Emulator Debugger)
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 52 of 104

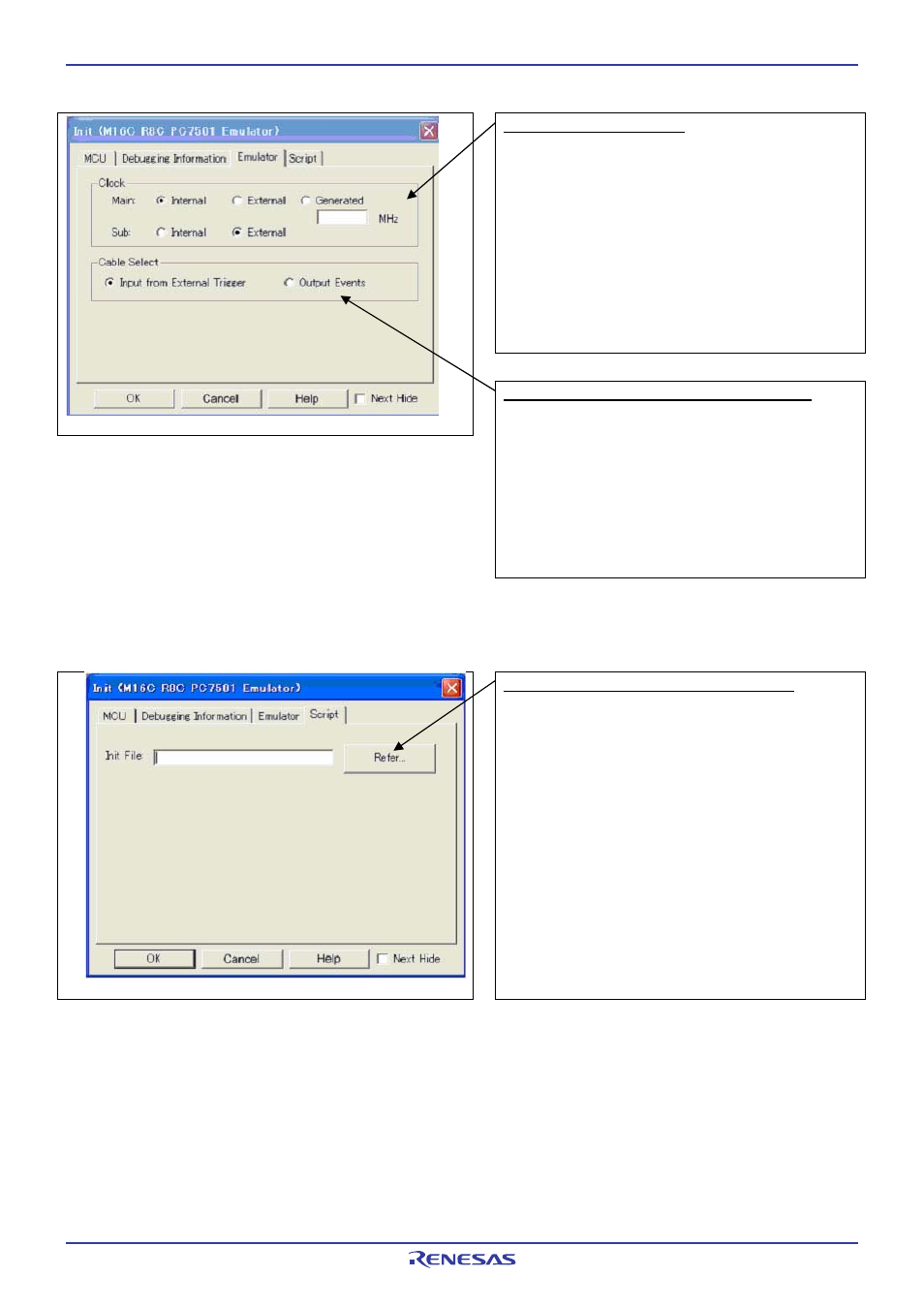

(3) Emulator tab
Specifying the target clock
Specify the clock sources supplied to the MCU (main clock and sub
clock). Select the appropriate clock sources according to the clock
used by your target MCU.
- Internal
(default)
Emulator PC7501’s internal clock
- External
User
system clock
- Generated
Clock created in PC7501
The option you have specified here remains effective the next time
you start up.
Selecting the event output/trigger input cable
Select input/output of the event output/trigger input cable of the
PC7501.
- Input from External Trigger (default)
Inputs the external trigger from the cable
- Output
Events
Outputs events from the cable
“Input from External Trigger” is set at startup (the previous setting
becomes null).
(4) Script tab
Automatically executing a script command
To automatically execute a script command when starting up the
debugger, click the “Refer...” button and specify the script file to be
executed.
Clicking the “Refer...” button brings up a file selection dialog box.
The script file you have selected is displayed in the Init File: section of
the dialog box shown here. If you do not want to automatically
execute a script command, delete the character string displayed in the
Init File: section of the dialog box.
What you specify here is reflected only at startup. If you specify back
again in the Init dialog box after startup, whatever you specified has
no effect. (Be sure to restart the emulator debugger.)
When the tab settings of (1) to (4) have been finished, click “OK”.
