M306NKT-EPB User’s Manual 2. Setup
REJ10J0519-0200 Rev.2.00 Oct. 16, 2006 Page 41 of 104
2.10.2 Pullup of Emulation Ports
Because this product emulates some I/O ports (P0 to P5, P10), you can not pullup ports P0 to P5 by the pullup control registers.
Install the included resistor arrays (51 kΩ) as necessary. Figure 2.17 shows the positions of the pullup resistors.
Component side of the M306NKT-EPBM
↑
Positions to install pullup resistor arrays
6NK

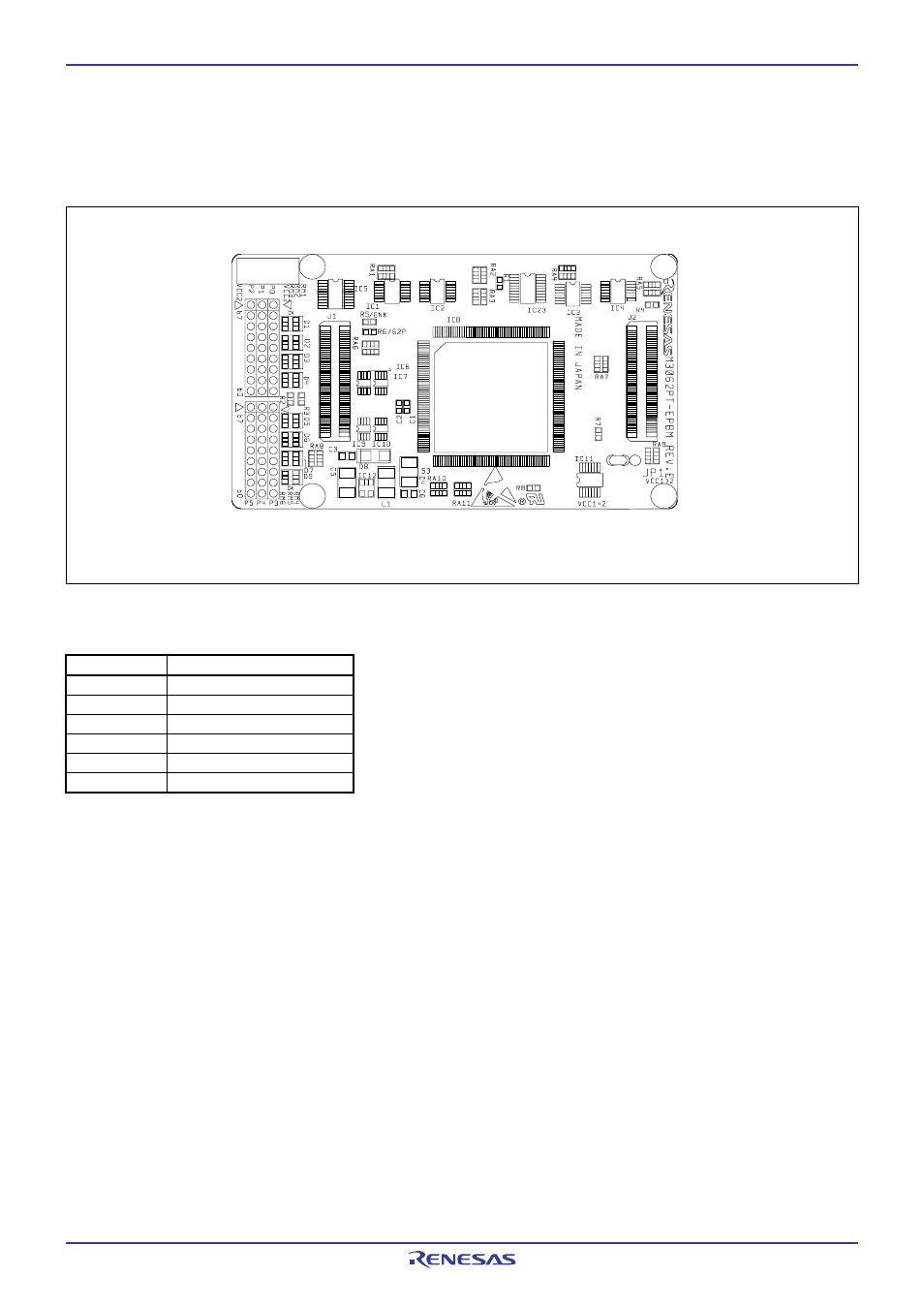

Figure 2.17 Positions of the pullup resistors
Table 2.1 Emulation ports and pullup resistor part numbers
Port Resistor part
P00--P07 RM1 (51 kΩ pullup)
P10--P17 RM2 (51 kΩ pullup)
P20--P27 RM3 (51 kΩ pullup)
P30--P37 RM4 (51 kΩ pullup)
P40--P47 RM5 (51 kΩ pullup)
P50--P57 RM6 (51 kΩ pullup)
