M306NKT-EPB User’s Manual

2. Setup

REJ10J0519-0200 Rev.2.00 Oct. 16, 2006

Page 31 of 104


2.9 Connecting the User System

Connect the emulation pod to the user system for M16C/6N4 or M16C/6N5, and for M16C/6NK, M16C/6NL, M16C/6NM
and M16C/6NN as shown in Figures 2.7 and 2.8, respectively.

Emulation probe

0.65mm pitch

0.5 mm pitch

M 30800T - PTC

M 30800T - PTC

(included)

M3T -100 LCC- DMS

M3T- FLX100-R

: No. 1 pin

*: These three items are available in one package .

*1

LCC socket

100-pin LCC

M3T - DIRECT100S

100-pin QFP

M3T -DUMMY100S

100-pin QFP

M3T - F160- 100NSD

100-pin LQFP

M3T -100LCC-QSD

100-pin LQFP

100-pin

M3T -F160- 100NRB

100-pin QFP

(included)

(not included)

(included)

(not included)

(not included)

M3T - FLX100- T

(not included)

(not included)

(not included)

(not included)

(not included)

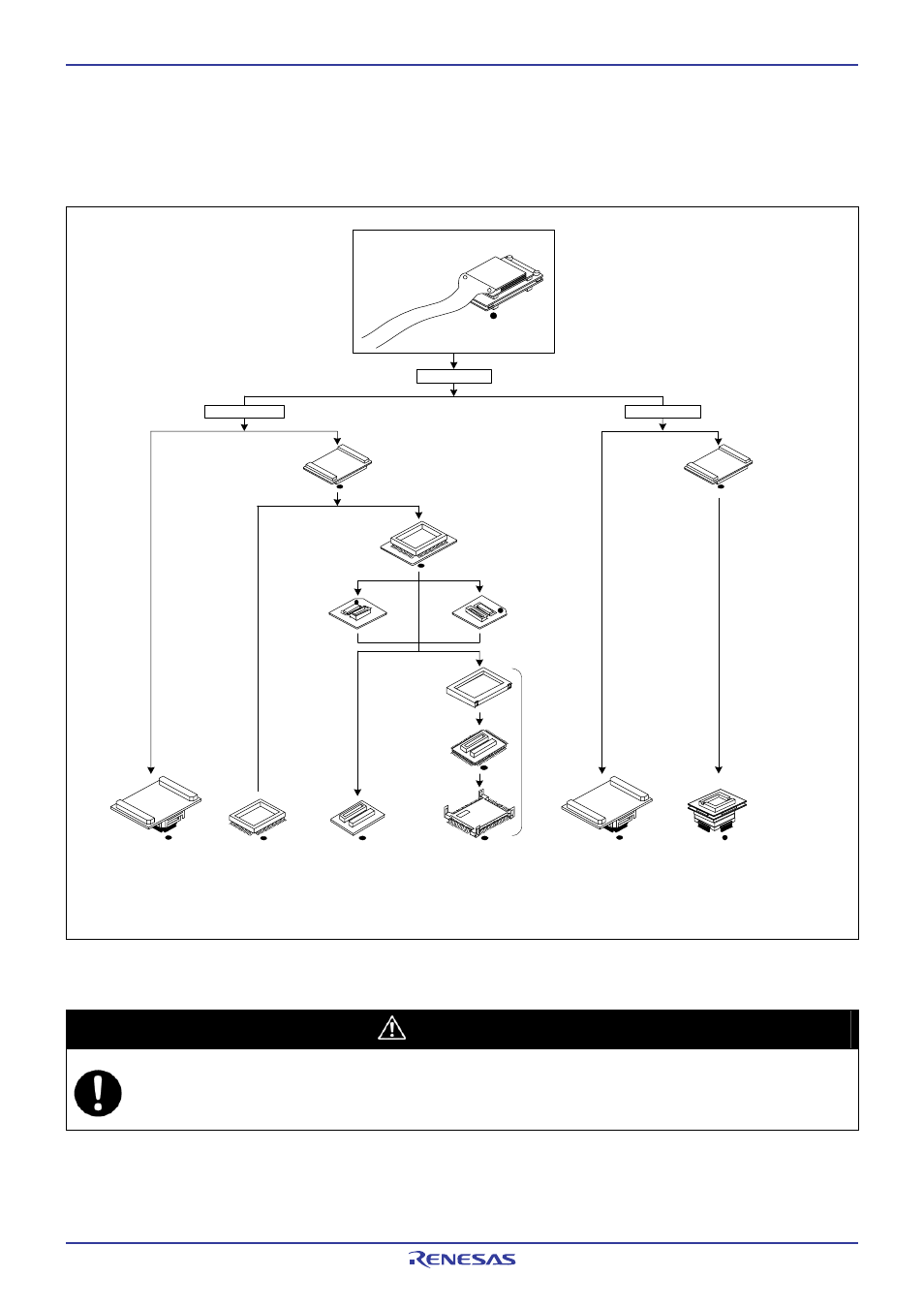

Figure 2.7 Connecting the user system according to user system (for M16C/6N4 and M16C/6N5)

CAUTION

Note on Connecting the User System:

z

Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and

user system.
